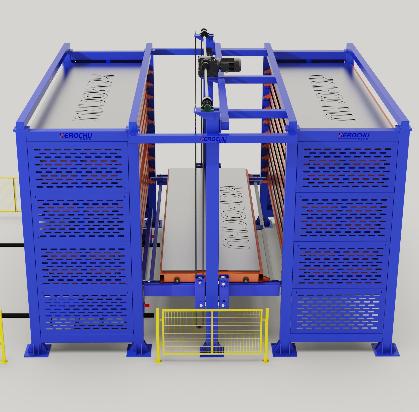

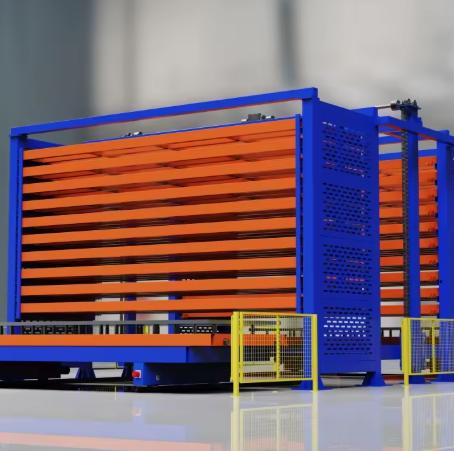

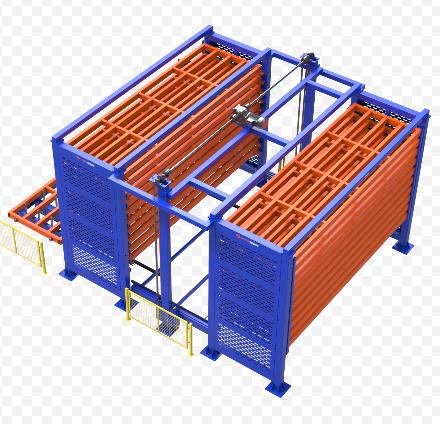

Twin-tower Sheet Metal Storage System

In the rapidly evolving landscape of modern sheet metal fabrication, the pressure to optimize floor space while increasing production speed has never been greater. The Herochu Twin-tower Sheet Metal Storage System represents a pinnacle of vertical engineering designed to address these core challenges. By transitioning from traditional horizontal floor storage to a sophisticated vertical arrangement, manufacturers can reclaim valuable square footage and implement a more disciplined, automated workflow. Herochu has engineered this system not merely as a racking solution but as a dynamic inventory management engine that serves as the heartbeat of a high-efficiency factory.

Structural Integrity and Finite Element Analysis The foundation of any high-density storage solution is its structural reliability. At Herochu, safety is not left to chance. Every Twin-tower Sheet Metal Storage System undergoes rigorous finite element stress analysis (FEA) using industry-leading software such as Simsolid and Ansys. These methods allow our engineers to perform meticulous strength verification calculations, simulating maximum load scenarios and environmental stresses. By analyzing the behavior of the frame body and the motor body under load, Herochu ensures that the final product exceeds the rigorous strength requirements of heavy industrial use. This scientific approach guarantees that the 3015, 4015, 4020, 6015, and 6020mm specifications remain stable and secure, even when operating at full capacity.

Precision Engineering and Specifications The Herochu Twin-tower Sheet Metal Storage System is built with versatility in mind. With standard configurations ranging from 8 to 13 floors, the system is designed to accommodate various material volumes. However, Herochu understands that no two factories are identical. We offer customized layers to match your specific product requirements, ensuring no vertical space is wasted. The load-bearing capacity per layer is standard at 3 to 5 tons, but our modular design allows for customization between 1 and 6 tons per shelf. Whether you are storing thin aluminum sheets or heavy-duty steel plates, the Herochu system provides the necessary rigidity. The warehouse body is constructed from large-section, high-strength thick-walled steel, providing a robust frame that resists deformation over decades of operation.

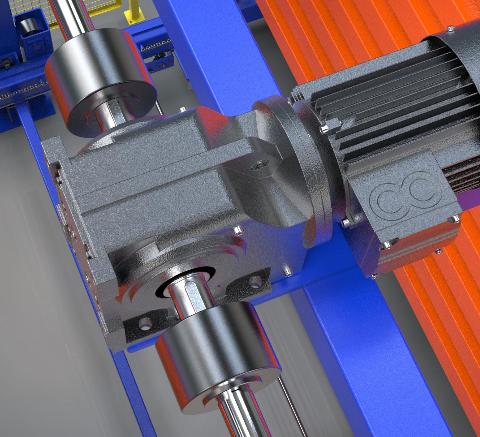

Dynamic Motion and Transmission Efficiency in a storage system is measured by the speed and smoothness of its access cycles. The Herochu Twin-tower Sheet Metal Storage System utilizes a movement mode based on linear guide rails and chain systems. This combination ensures high-precision tracking and durability. The chain drive transmission mode is engineered for high torque and reliability, achieving a vertical lifting speed of 9 meters per minute. When it comes to the horizontal movement of materials, the inlet and outlet speed reaches a swift 12 meters per minute. To further enhance the protection of the materials, Herochu provides optional plate support selections, preventing scratching or bending of delicate surfaces during high-speed transfers.

Smart Integration and Industry 4.0 Modern manufacturing demands connectivity. The Herochu Twin-tower Sheet Metal Storage System is equipped with an automatic loading and unloading system that provides seamless integration with laser cutting machines. This creates a “dark factory” environment where the storage library “talks” to the production equipment. The heart of the electrical system is a high-performance Programmable Logic Controller (PLC). This PLC-based control system manages everything from the high-precision robotic arm movements to the AGV (Automated Guided Vehicle) transfer protocols. By removing manual handling from the equation, the time required for a single material retrieval is slashed to 10 seconds or less.

Inventory Intelligence and IoT Beyond the physical steel, the Herochu Twin-tower Sheet Metal Storage System offers a digital advantage. Through the implementation of “One item, one code” management, every board is labeled with an RFID tag. This enables the system to record the entire data trail—from storage and retrieval to final production. Real-time monitoring of material quantities is achieved through sophisticated IoT sensors. These sensors provide automatic warnings for replenishment or clearance, effectively increasing inventory turnover rates by up to 60%. The software interface, available in Chinese and English with options for region-specific customization, allows managers to calculate inventory data based on dimensions, weight, and material specifications in real-time.
