Smart Material Handling Solution for Automated Loading & Unloading Crane | Intelligent Servo Manipulator for Laser Cutting & Metal Fabrication

The modern metal fabrication facility operates on a simple principle: machine utilization equals profitability. Every second that a laser cutter, press brake, or stamping press sits idle directly reduces the bottom line. Yet for decades, the loading and unloading of heavy sheet metal has remained a manual bottleneck—a two-person, five-minute operation that introduces variability, ergonomic risk, and production delays.

Herochu has developed a Smart Material Handling Solution for Automated Loading & Unloading Crane that fundamentally redefines this workflow. This intelligent, servo-controlled system transforms what was once a labor-intensive manual operation into a thirty-second, single-button automated gesture. The solution integrates seamlessly with existing production equipment—laser cutting machines, shearing machines, and bending machines—automating the feeding process to eliminate manual errors and delays.

The Intelligence Behind the Solution

What distinguishes Herochu’s smart material handling solution from conventional vacuum lifters or basic manipulators is its integration of multiple intelligent subsystems that work in concert to deliver consistent, repeatable, and damage-free material transfer.

Servo-Driven Motion Control: The system employs high-precision servo motors with closed-loop control technology. Unlike pneumatic or hydraulic systems that can drift or lose position under varying loads, servo control provides real-time feedback on angular position, velocity, and torque. This ensures that the arm accelerates smoothly, moves at programmed speeds suited to sheet size, and decelerates precisely at the target position without overshoot. The result is repeat positioning accuracy within ±0.1 mm to ±0.5 mm, depending on configuration.

PC-Based Numerical Control: The manipulator operates under a Windows-based industrial PC with a 7-inch touchscreen interface. The software supports three operating modes:

• Manual Mode: Operator guides the arm as with a lift assist device; encoders record positions without active correction

• Automatic Mode: Pre-programmed sequences execute autonomously

• Teaching Mode: Operators can “teach” the arm new positions by physically guiding it through the desired motion path

Integrated Sheet Separation: The system features integrated sheet separation capability, automatically detecting and separating individual sheets from a stack to prevent double-pick issues.

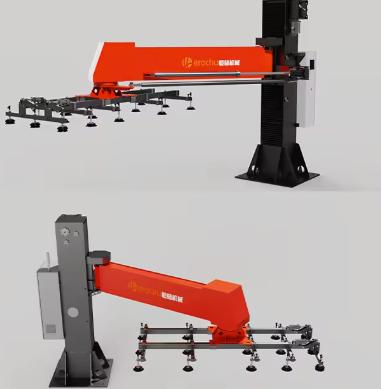

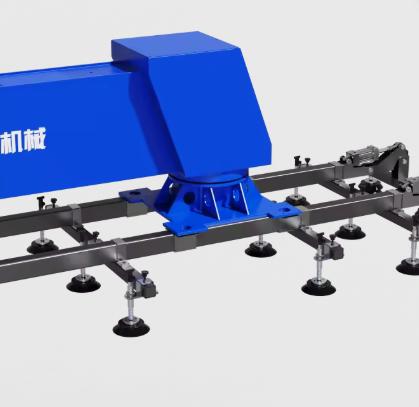

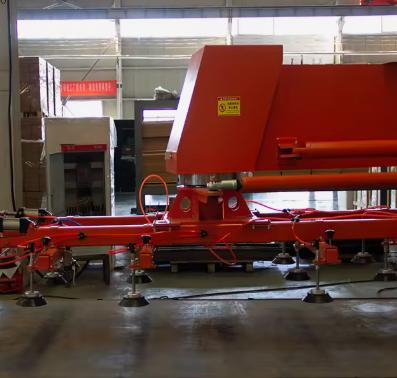

Modular Suction Cup Tooling: The manipulator uses electric servo drive and modular vacuum suction cups, with configurations ranging from 15 to 118 cups (150–250 mm diameter). Each suction cup is equipped with an individual opening and closing valve, allowing the system to adapt its gripping pattern to different sheet sizes and weights.

Workflow Integration: The Automated Loading & Unloading Loop

The term “automated loading and unloading” describes a continuous loop rather than two separate actions. Herochu’s smart material handling solution executes this loop through a precisely orchestrated sequence:

Feed Cycle:

1. The manipulator swings to the raw material storage position

2. Suction cups descend and establish vacuum grip on the top sheet

3. The arm lifts the sheet and rotates to the processing equipment

4. The sheet is precisely positioned on the machine bed (laser cutter, press brake, or shear)

5. Suction releases, and the arm retracts

Discharge Cycle:

1. After processing, the manipulator returns to the machine bed

2. Suction cups engage the finished part

3. The arm lifts the finished panel and rotates to the discharge area

4. The part is placed on the finished goods pallet or conveyor

5. The arm returns to the raw material position to begin the next cycle

This continuous workflow minimizes operator intervention, maximizes throughput, and ensures that processing equipment operates at full capacity. Herochu’s auto feeding and discharging manipulator is available in five standard configurations (HC-R3015-500, -750, -1000 and HC-R4020-500, -750), supporting plate thicknesses from 8 mm to 20 mm and feeding widths up to 4000×2000 mm.

Payload Capacity and Material Versatility

The smart material handling solution accommodates a wide range of sheet metal types and weights:

With payload capacities ranging from 300 kg to 1,000 kg, the system handles everything from light-gauge aluminum to heavy steel plates. The manipulator accommodates sheet sizes up to 4000×2000 mm, making it one of the most versatile systems on the market.

Safety and Reliability Engineering

Safety is not an afterthought in Herochu’s smart material handling solution—it is engineered into the fundamental architecture:

Power-Off and Air-Cut Protection: If power or air supply is interrupted during operation, the material will not detach from the suction cups within five minutes, providing a critical safety window.

Emergency Stop Braking: Power-off brakes clamp the servo motor shaft instantly when the emergency stop is activated, ensuring loads remain suspended.

Optical Safety Ring: Guarded by Category-3 PL-e sensors, the optical ring stops the arm in 18 milliseconds if any obstruction enters the sweep zone.

Safety Labeling: The equipment is affixed with safety warning labels, maintenance labels, and operation instructions for key steps. All gas pipes use red and blue color coding (blue in, red out), with connectors labeled for correct identification and maintenance.

CE and ISO 9001 Certification: Herochu’s smart material handling solutions bear CE, UE, and ISO 9001 certifications, confirming compliance with international safety and quality standards.

Installation and Deployment

Herochu recognizes that production downtime during installation is costly. The smart material handling solution is designed for rapid deployment:

Modular Construction: The arm ships as a flat-pack kit that can be assembled between shifts. Modular extrusions click together with minimal tools—no crane, no welding, no fire-watch required.

Rapid Assembly: A two-person crew can complete mechanical assembly within six to eight hours for most installations. Customers have gone from delivery to first pick in under three hours using only a socket wrench and the supplied laser level.

Standardized Electrical Connections: Electrical connections use standardized industrial connectors, eliminating the need for on-site wiring certifications beyond basic power hookups.

Technical Support: Product installation is guided by experienced technical engineers throughout the process, with full installation and debugging support.

Conclusion

The Smart Material Handling Solution for Automated Loading & Unloading Crane from Herochu represents a paradigm shift in sheet metal logistics. By integrating servo-driven precision, intelligent control, modular tooling, and comprehensive safety systems, this solution delivers fully automated material handling that eliminates manual bottlenecks, reduces labor costs, and maximizes machine utilization. For manufacturers seeking to transform their loading and unloading operations from a production constraint into a competitive advantage, Herochu’s smart material handling solution offers a proven, certified, and rapidly deployable answer.
