Servo Drive Steel Sheet Handling Manipulator Arm for Industrial Automation

Steel plate handling has long been a bottleneck in fabrication shops. Workers wrestle with heavy sheets, cycle times drag, and manual loading introduces variability that ripples through downstream cutting and forming operations. The Herochu servo swing arm manipulator restructures this workflow from the ground up — replacing muscle and guesswork with computer-controlled precision that fabricators can rely on shift after shift.

Modular Architecture Built for Fast Deployment

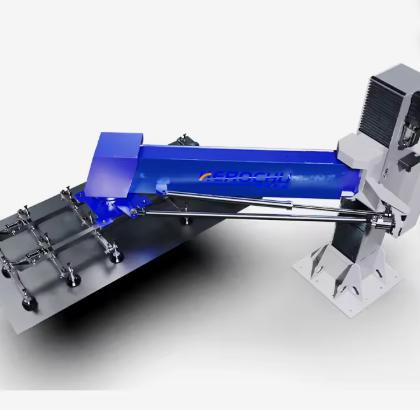

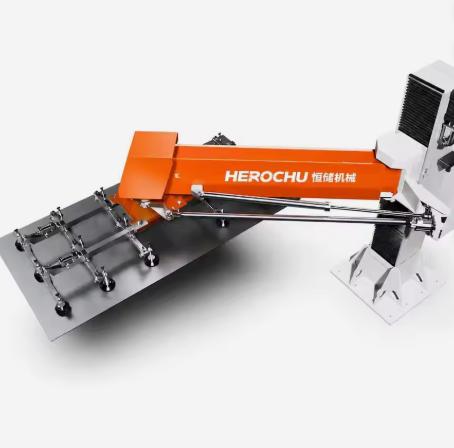

The Herochu manipulator ships as a modular assembly structure. Each subsystem — the swinging-arm main body, the large-torque servo synchronous lifting mechanism, the servo swinging-arm positioning transmission, and the pneumatic suction array — bolts together on-site without specialized rigging equipment. This modular philosophy cuts installation time and means the unit can be disassembled and relocated when a shop reconfigures its floor layout. Space waste drops because the swing-arm design occupies a compact footprint relative to fixed gantry or rail-based alternatives.

Servo-Driven Lifting and Positioning

At the core of the Herochu system is a large-torque servo synchronous lifting mechanism paired with servo swinging-arm positioning transmission. Unlike pneumatic-only lifts that drift under load or hydraulic systems that leak and lag, the servo drive delivers repeatable vertical and rotational control. The lifting stroke reaches 700 mm with a lifting speed adjustable from 1 to 5.5 m/min. Rotation spans ±60 degrees at an angular speed of 2–5 mm, giving the operator fine control over sheet placement orientation.

Repeatability sits at ±2 mm — a figure that matters when downstream laser cutters demand consistent sheet positioning for nested cutting programs. The Omron numerical control system, imported and integrated into the electrical architecture, drives these servo motions through network cable communication between the touch screen HMI and the PLC.

Handling Versatility Across Materials

The manipulator handles carbon steel, stainless steel, and aluminum sheets ranging from 1 to 20 mm in thickness. Sheet dimensions scale from a minimum loading width of 1250 × 1250 mm up to 3000 × 1500 mm on the HC-R3015-300 model and 4000 × 1500 mm on the HC-R4015-500 model. Maximum plate weight capacities are tiered at 300 kg, 500 kg, and 1000 kg, covering everything from light-gauge aluminum to thick carbon steel plates used in structural fabrication.

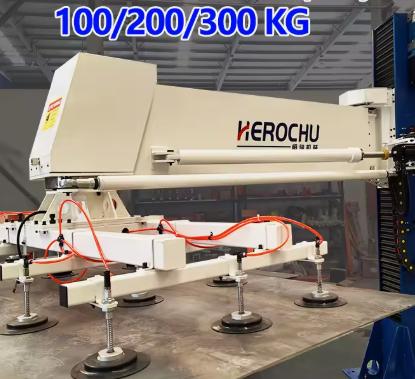

Multiple sets of heavy-load oil-resistant suction cups form the end-of-arm tooling. Each suction cup carries its own opening and closing valve, which means the system can selectively engage or release cups depending on sheet size and weight distribution. This selective activation prevents sheet sagging and edge drop-off that occurs when all cups fire indiscriminately on a smaller plate.

Safety Engineering

Industrial sheet handling carries genuine risk. The Herochu manipulator addresses this with layered protection. An emergency air-cut protection system halts operation immediately on demand, and an automatic braking system locks the swing arm in position during stops. The most critical safety feature is the power-off retention: if power or air supply is interrupted mid-cycle, the suction cups hold the sheet for a full five minutes without dropping — giving operators time to clear the area and restore service.

Color-coded pneumatic routing reinforces safe maintenance practices. Red (orange) pipes carry outbound air, blue pipes carry inbound air, and every connector is labeled for identification. Safety warning labels, maintenance labels, and operation instructions are affixed at key points on the equipment. The button function identifiers are printed in both Chinese and English, and the device supports both manual and automatic operating states.

Specification Summary

Installation and Commissioning

Herochu dispatches experienced technical engineers to guide the full installation and debugging process. Rather than shipping a manual and leaving the customer to figure out integration, the engineering team stays on-site through commissioning — verifying servo calibration, suction cup engagement sequences, PLC-to-HMI communication, and safety system responses under real load conditions. This hands-on approach ensures the manipulator reaches its specified ±2 mm repeatability from day one rather than after weeks of trial-and-error tuning by the end user.

For fabrication shops looking to automate sheet loading without committing to a full gantry system, the Herochu servo swing arm manipulator delivers servo-driven precision, modular flexibility, and documented safety engineering in a footprint that fits existing floor plans.
