Automatic Plate Vertical Storage System for Metal Fabrication Workshops

Automatic Plate Vertical Storage System for Metal Fabrication Workshops

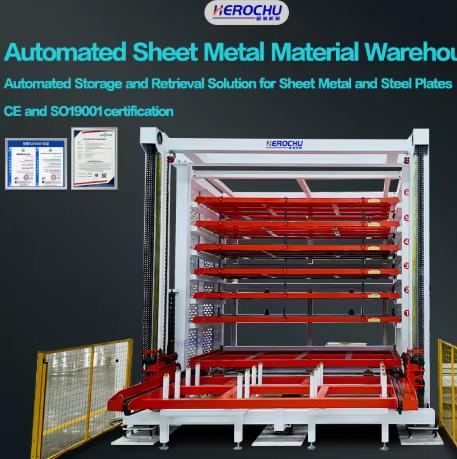

Metal fabrication shops handling steel, aluminum, and stainless plates face a persistent operational challenge: material is heavy, floor space is finite, and retrieval time directly impacts machine uptime. Herochu’s Automatic Plate Vertical Storage System addresses this bottleneck through vertical tower architecture that converts unused overhead space into dense, organized storage capacity.

Category Automation Sheet Metal Material Warehouse Tag Automatic Plate Vertical Storage System for Metal Fabrication Workshops

Automatic Plate Vertical Storage System for Metal Fabrication Workshops

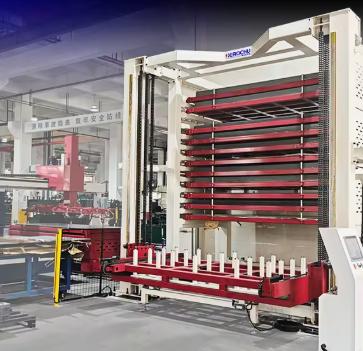

The system operates on a PLC touchscreen interface that automates the complete storage and retrieval cycle. Operators select the required plate specification from the control panel, and the tower automatically retrieves the corresponding tray from its storage level and delivers it to the extraction point. This eliminates the manual searching and forklift maneuvering that consumes an estimated 25 to 30 percent of shift time in conventional floor-stacked operations.

Real-time inventory visibility is embedded into the storage process itself. Each plate is weighed on entry, with dimensions, weight, and quantity updated automatically as material moves in and out. The touchscreen displays current stock status without requiring manual counting or spreadsheet updates.

For fabrication operations that rely on enterprise resource planning systems, Herochu’s tower integrates directly with factory ERP platforms. The system confirms material availability when production orders are released, reserves required plates for upcoming jobs, and transmits consumption data back to ERP in near real time. This connectivity transforms the storage tower from a passive rack into an active node in the production planning workflow.

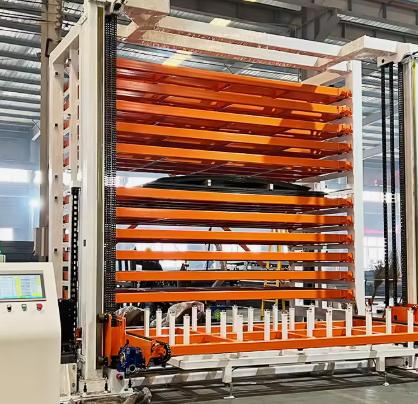

The Herochu Automatic Plate Vertical Storage System is engineered for compatibility with the lifting equipment already present in most fabrication environments. The loading and unloading stations accept direct forklift access and overhead crane operation without requiring dedicated handling assets. Adjustable support legs with leveling feet compensate for floor irregularities, ensuring stable positioning over years of operation.

Technical specifications encompass plate dimensions from 3000×1500 mm to 6000×2000 mm, with six to ten storage layers depending on model configuration. Each layer supports loads up to 5000 kg, accommodating the full range of steel plate thicknesses encountered in structural fabrication, laser cutting, and heavy metal processing. Transfer speeds of 5 to 15 meters per minute and repeat positioning accuracy of ±2 mm ensure reliable, consistent tray handling.

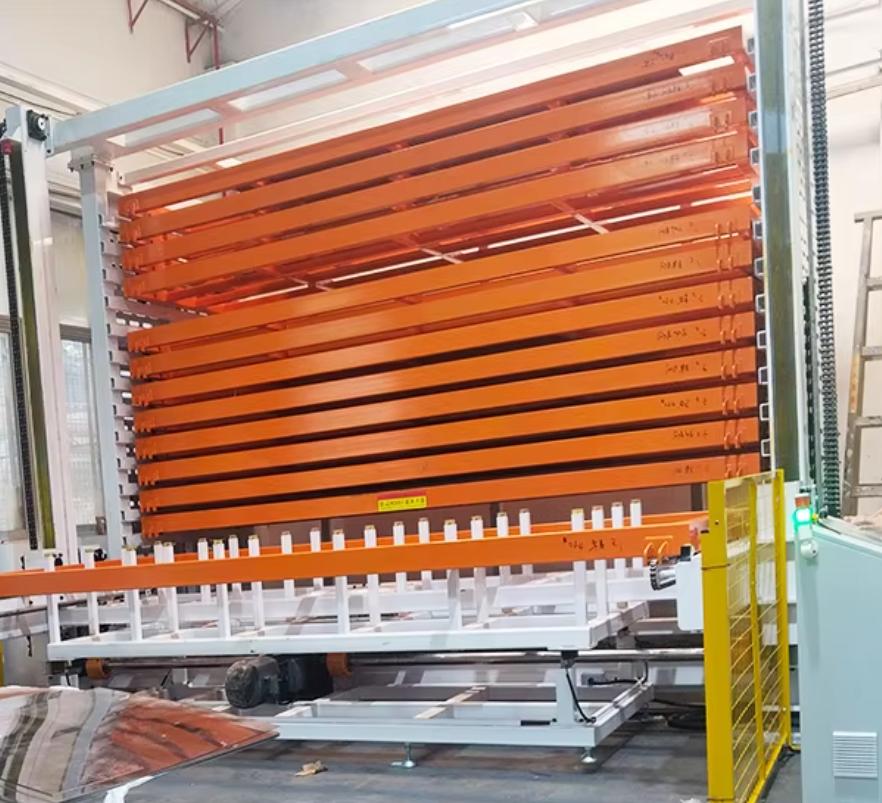

Surface protection is a design priority. Each plate rests on an independent tray, eliminating the plate-to-plate contact that causes scratching and deformation in stacked storage. For shops handling stainless, aluminum, or pre-finished material, this protection prevents the material damage that erodes value and creates rework.

Herochu manufactures each tower to order, with customizable layer counts, tray dimensions, and load ratings matched to the workshop’s specific material profile and ceiling height. The system serves steel service centers, metal fabrication workshops, and aluminum extrusion processors that require organized, traceable plate storage with rapid retrieval capability.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
