Feed Laser Machine Pneumatic Cantilever Loading Manipulator

In modern sheet metal fabrication, the efficiency of loading raw materials into a laser cutting machine directly determines throughput and labor costs. The Herochu Feed Laser Machine Pneumatic Cantilever Loading Manipulator is engineered to bridge the gap between manual handling and fully automated systems. This cantilever-style manipulator combines pneumatic power with intuitive control, enabling operators to lift, transfer, and position metal plates weighing up to 1000 kg onto the cutting bed with minimal physical effort. Unlike conventional forklift-based or overhead crane methods, this manipulator offers precise spatial control, emergency air-cut protection, and a modular design that adapts to various shop floor layouts.

Herochu has focused on solving three common pain points in laser cutting feeding: slow cycle times, safety risks during plate placement, and damage to material surfaces. The HC-PR series manipulator addresses each through a vacuum suction cup array, anti-collision devices, and a cantilever structure that allows 220-degree rotation and a lifting stroke of 700 mm. This article provides a detailed technical examination of the pneumatic cantilever loading manipulator, its operational principles, parameter configurations, and why it outperforms conventional feeding methods.

Core Design Philosophy

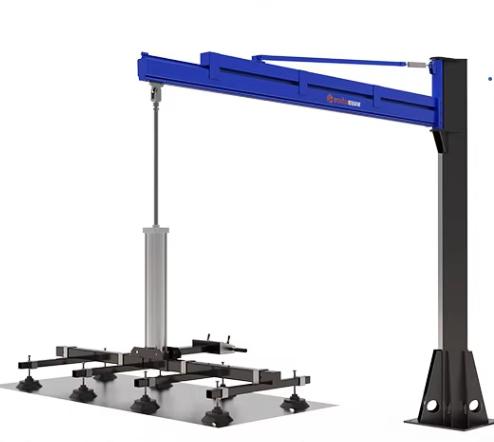

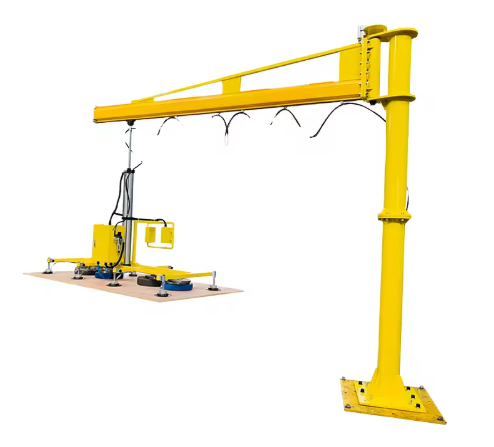

The Herochu feed laser machine pneumatic cantilever loading manipulator is built on a lightweight yet rigid aluminum alloy frame. The cantilever arm extends up to 3600 mm from the column, covering standard sheet sizes from 1250×1250 mm to 4000×2000 mm. The pneumatic power mode uses compressed air to drive the lifting and rotation actuators, offering a clean and explosion-proof solution ideal for environments with laser equipment.

Key design elements include:

• Modular assembly/disassembly: The arm, column, and suction head can be separated for maintenance or relocation.

• Emergency air-cut protection: If air pressure drops below the safe threshold or a power failure occurs, the system automatically locks the load in position, preventing sudden drops.

• Position-hold capability: The manipulator stops at any height or rotation angle without drift, thanks to a balanced pneumatic circuit.

Technical Specifications

The rotation angle on all models reaches 220 degrees, while the lifting stroke is standardized at 700 mm. Column height stands at 3600 mm, and the boom length matches 3600 mm. These dimensions allow the manipulator to service laser cutting machines with working areas up to 4 meters in length.

Operational Workflow

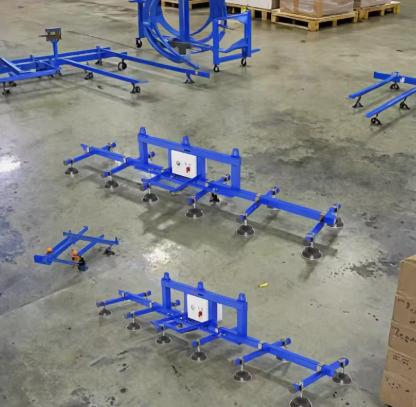

When feeding a laser cutting machine, the operator first positions the suction cup assembly over a stack of carbon steel, stainless steel, or aluminum sheets. A PLC touch screen interface – standard on electric-equipped models – allows selecting between manual or semi-automatic modes. Pressing the activation button engages the vacuum generator, and eight suction cups (200 mm diameter each) create a distributed grip on the plate surface.

For plates thinner than 3 mm, the Herochu manipulator incorporates an optional sheet separation function. A burst of compressed air or a mechanical lifter breaks the vacuum between stacked sheets, preventing double picking. Once the plate is secured, the operator guides the cantilever arm horizontally – requiring less than 3 kg of force due to pneumatic balancing – and rotates it toward the laser cutting machine’s worktable. Releasing the vacuum at the target position completes the loading cycle.

The entire handling cycle from pick to place averages 15 to 25 seconds, depending on travel distance. Compared to manual two-person lifting (which takes 45–60 seconds and risks back injuries), the Herochu pneumatic cantilever loading manipulator doubles throughput while eliminating workplace accidents.

Safety Features

Herochu prioritizes operator and equipment safety through multiple layers:

• Air cut-off protection: Monitors supply pressure in real time. If pressure falls below 4 bar, the system holds the load and sounds an alarm.

• Anti-collision device: Proximity sensors on the arm prevent impact with the laser cutting machine’s gantry or other obstacles.

• Suction cup vacuum redundancy: Each cup operates independently; losing one cup still leaves sufficient grip for 70% of rated load.

• Soft start/stop: Pneumatic flow control valves eliminate jerky movements that could shift the plate or damage the cutting head.

Application Examples

Case A – 6 kW fiber laser cutting 8 mm carbon steel: A job shop using the HC-PR4020-500 model reduced loading time from 50 seconds per sheet to 18 seconds. The manipulator’s 500 kg capacity allowed stacking three 8 mm sheets (each 150 kg) for batch processing, though single-sheet feeding is recommended for precision.

Case B – Aluminum plate processing: Aluminum’s softer surface requires careful suction. Herochu’s 200 mm cups with polyurethane seals leave no marks, maintaining surface finish integrity.

Why Choose Herochu for Laser Cutting Feeding

Herochu manufactures the feed laser machine pneumatic cantilever loading manipulator in an ISO 9001-certified facility. Each unit undergoes a 48-hour burn-in test under full load. CE and EU directives compliance ensures export readiness. Additionally, Herochu provides OEM/ODM services – customers can specify cup spacing, arm length, or column height to match non-standard laser cutting machines.

The manipulator requires only a 6 bar compressed air supply and a standard 220V electric outlet for the PLC controller. Annual maintenance consists of checking suction cup wear and lubricating the rotation bearing – a 2-hour procedure that can be performed in-house.

Conclusion

For workshops seeking to upgrade from manual plate loading without investing in expensive gantry robots, the Herochu feed laser machine pneumatic cantilever loading manipulator offers a practical middle ground. Its lightweight cantilever design, emergency air-cut protection, and compatibility with carbon steel, stainless steel, and aluminum make it a versatile feeding solution. The HC-PR series, with load capacities from 300 kg to 1000 kg, covers most sheet sizes encountered in laser cutting operations. By integrating this manipulator, fabricators achieve shorter handling cycles, lower labor fatigue, and consistent material positioning – directly improving laser cutter utilization.
