Laser-Based Loading Equipment for Automated Sheet Metal Processing

Laser cutting technology has revolutionized sheet metal fabrication, delivering unprecedented cutting speeds, precision, and flexibility. Yet the productivity gains enabled by high-power lasers are often undermined by a persistent bottleneck: material loading. When a laser cutter finishes a program and waits for the next sheet to be loaded, every second of idle time represents lost revenue and reduced throughput.

Herochu addresses this challenge with a comprehensive range of laser-based loading equipment designed specifically for the unique demands of laser cutting workflows. From pneumatic cantilever manipulators to fully automatic loading systems, this equipment transforms material loading from a bottleneck into a synchronized, efficient workflow component.

This article provides a detailed examination of laser-based loading equipment, exploring the technologies, applications, and strategic benefits that make these systems essential for modern laser cutting operations.

The Loading Bottleneck in Laser Cutting

Laser cutting machines are among the most expensive capital investments in a metal fabrication facility. A modern fiber laser can cost hundreds of thousands of dollars and, when operating at full capacity, generate substantial revenue per hour. The economic imperative is clear: keep the laser cutting.

Yet traditional material loading methods—forklifts, overhead cranes, and manual lifting—introduce significant downtime into the cutting workflow. Each sheet change requires stopping the laser, maneuvering the new material into position, aligning it against stops, and securing it for cutting. These operations can take several minutes, during which the laser produces nothing.

For a facility running multiple shifts, the cumulative effect of loading downtime is substantial. A laser cutter operating at 70% utilization due to loading delays is generating significantly less revenue than one operating at 90% utilization. The difference can represent hundreds of thousands of dollars annually.

Herochu laser-based loading equipment addresses this challenge by providing dedicated, purpose-built systems that integrate directly with laser cutting machines. These systems reduce loading time from minutes to seconds, ensuring that the laser cutter spends more time cutting and less time waiting.

Herochu Laser Loading Equipment Portfolio

Herochu offers multiple categories of laser-based loading equipment to match diverse operational requirements and automation levels.

Pneumatic Cantilever Loading Manipulators

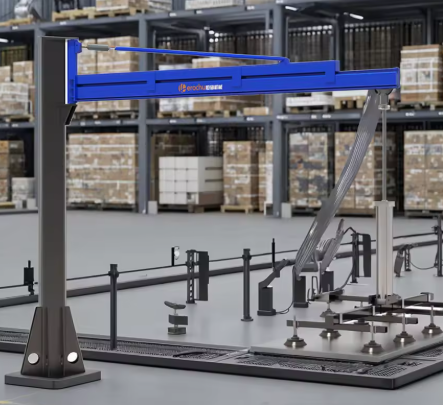

The pneumatic cantilever loading manipulator is purpose-built for feeding laser cutting machines. This equipment line includes both manual lift assist devices and semi-automatic manipulators, with the common feature being a pneumatic cantilever design that rotates 220 degrees and lifts 700 millimeters vertically.

The manipulator’s lightweight structure, easy assembly and disassembly, and wide application range make it suitable for diverse workshop environments. High efficiency and short handling cycles characterize its operation, with the ability to stop at any position making the loading process easy, fast, and continuous.

Standard models handle maximum plate weights from 300 kilograms to 1,000 kilograms, with feeding plate thickness capabilities ranging from 8 millimeters to 20 millimeters. Typical sheet dimension capacities include 3000×1500mm and 4000×2000mm formats.

The manipulator excels in environments where budget constraints exist but manual handling is no longer viable due to safety regulations or production demands. Using compressed air as its primary power source, it offers smooth, controlled motion with fewer electronic components—reducing maintenance complexity.

Automatic Loading and Unloading Systems

For facilities pursuing full automation, Herochu offers automatic loading and unloading systems that integrate storage, material handling, laser processing interface, and scrap management to support continuous, low-staff sheet metal production.

These systems use vacuum cup-based automatic loading robots with single-structure design and zoning control. Sheet separation and thickness detection ensure single-sheet pick and reliable feeding across plate sizes.

The automatic systems dramatically reduce material loading and unloading time compared to single-operator manual handling. The automated workflow can be continuous for extended periods, handling a variety of materials and thicknesses according to production requirements.

Integrated Storage and Handling Systems

For the highest level of automation, Herochu offers fully integrated systems combining three-dimensional material warehouses with automatic loading and unloading robots. This pairing creates a seamless material flow from vertical storage to machine bed and back again, with no human hands touching the sheet between incoming inspection and finished part removal.

The integrated approach eliminates multiple handling steps, reducing the risk of damage and improving overall workflow efficiency. Material is stored in a compact vertical warehouse, retrieved automatically when needed, and fed directly to the laser cutter without intermediate handling.

Technical Capabilities and Performance

Herochu laser-based loading equipment is characterized by robust technical specifications that ensure reliable performance in demanding laser cutting environments.

Load capacity ranges from 300 kilograms in standard pneumatic models to 1,000 kilograms in heavy-duty configurations. This range covers the vast majority of sheet sizes used in laser cutting operations.

Sheet dimensions accommodated include formats up to 4000×2000 millimeters, with custom configurations available for specialized requirements. The manipulator’s 220-degree rotation angle and 700-millimeter lifting stroke provide comprehensive coverage of the laser cutter work envelope.

Suction cup technology is central to the loading capability. The scientifically configured array of suction cups accommodates panels across a spectrum of sizes, finishes, and weight ranges, ensuring a secure and reliable grip every time.

Material compatibility extends across the full range of materials processed by laser cutters: carbon steel, stainless steel, aluminum, copper, brass, and other flat sheet materials.

Integration capability ensures seamless connection with laser cutting equipment. The loading systems are designed to interface with the laser cutter’s control systems, coordinating material feeding with cutting operations.

Surface Protection for Laser-Quality Materials

Laser cutting produces parts that often require minimal secondary finishing. The cut edges are clean, the dimensional accuracy is high, and the surface quality is preserved. This advantage is lost, however, if the material arrives at the laser cutter with surface damage from handling.

Herochu laser loading equipment uses vacuum suction cup technology to protect material surfaces during loading. Unlike mechanical clamping, which concentrates force at specific points and can cause marking or deformation, vacuum lifting distributes holding force evenly across the sheet surface.

The soft suction cups make contact with the material without sliding or scratching, preserving the surface quality from storage through cutting. For stainless steel, aluminum, and other materials that show marks prominently, this surface protection is essential for maintaining finished part quality.

Integration with Laser Cutting Workflows

The integration of loading equipment with laser cutting systems creates a seamless workflow from raw material to finished part. Sheets are picked from storage stacks, transferred to the cutting bed, positioned with precision, and removed after cutting—all with minimal manual intervention.

For facilities handling high volumes, the laser loading equipment works in concert with automatic sheet storage systems, creating an integrated material flow from raw stock to finished part. This integration capability ensures that the loading equipment remains a valuable asset as operations scale.

The integration also enables automated sheet separation and thickness detection, ensuring that only a single sheet is picked and that the correct material is used for each job. This eliminates the double-feeding issues that can damage laser cutter components or produce defective parts.

Economic Impact on Laser Cutting Operations

The financial case for laser-based loading equipment is compelling, driven by multiple concurrent benefits that compound over time.

Machine utilization improvement represents the most significant benefit. By reducing loading times from minutes to seconds, loading equipment ensures that the laser cutter operates closer to its theoretical capacity. For a laser cutter costing hundreds of dollars per hour to operate, every additional minute of cutting time directly increases revenue.

Labor cost reduction is equally significant. A single operator equipped with loading equipment can accomplish material handling tasks that would otherwise require multiple personnel. This not only reduces direct labor costs but also mitigates recruitment challenges in a tight labor market.

Material savings from damage prevention contribute to the bottom line. The vacuum suction cup approach eliminates the marks and scratches associated with mechanical handling, reducing scrap and rework costs.

Consistent quality results from precise material positioning. When sheets are loaded accurately every time, the laser cutter produces consistent parts with minimal variation.

Scalability ensures that the investment remains valuable as operations grow. The modular design of Herochu equipment facilitates reconfiguration and expansion, allowing the system to evolve with changing production requirements.

Safety Considerations in Laser Loading

Safety is paramount in laser cutting operations, where high-power lasers, heavy materials, and moving equipment create significant hazards. Herochu laser loading equipment incorporates multiple safety features that protect both operators and equipment.
