Herochu Unattended Lights-Out Storage & Loading Solutions for Laser Cutting

Lights-out manufacturing has been a goal in metal fabrication for decades: run the machines after the last operator leaves, and let the production floor work through the night without a night shift. Laser cutting is one of the easier processes to push in that direction, because the cutting itself is already automated. What stops most shops is the material handling around the machine. Plates still have to be separated, loaded, aligned, and unloaded. The Herochu unattended lights-out storage and loading solution closes that gap: a double-tower warehouse issues plate automatically, and a gantry-mounted composite manipulator feeds and unloads the laser around the clock.

A Production Floor That Keeps Running After Hours

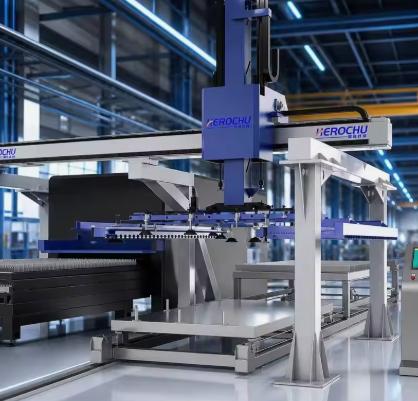

The Herochu system replaces manual handling with a fully automated truss robot workflow. The warehouse stores plate in up to 13 layers, the manipulator retrieves the right sheet, separates it from the stack, feeds it to the cutting table, and later removes the finished parts to the material truck. With nobody in the loop, fiber laser cutting machines run continuously, which raises daily output well beyond what a single shift can achieve. Labor dependency drops at the same time. Because one operator can manage multiple cutting stations when they are integrated with the gantry system, production overhead can fall by up to 60 percent compared with manually loaded machines. A typical night run draws on the tower’s full depth: eight layers of 3 mm mild steel become a thousand nested parts while the manipulator cycles from issue to reclaim without a pause. The morning shift arrives to a full finished material truck and a machine that has been cutting since the last operator left.

Dual-Action Handling Keeps Sheets Under Control

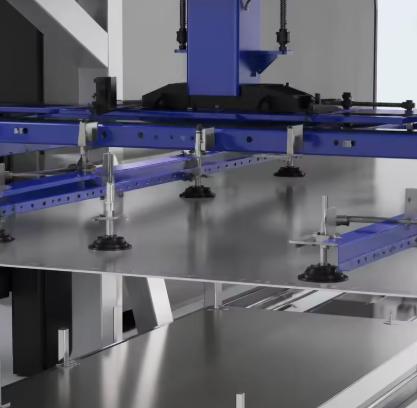

Standard loaders rely on suction alone, and suction alone has a weak point: oily plates, plates with protective film, and coated sheets release unpredictably in mid-air. The Herochu truss robot uses a dual-action handling system that combines vacuum suction with a mechanical clamping fork. The clamp takes over whenever suction is compromised, so the sheet cannot slip or drop on the way to the table. That combination matters most with the materials job shops actually cut, oiled mild steel, film-protected stainless, and pre-finished aluminum, all of which cause problems for single-grip loaders.

Positioning Accuracy That Protects Material and Machine

An unattended system has to place every sheet exactly, because there is no operator watching to correct a misaligned feed. The Herochu manipulator holds a repetitive positioning accuracy of ±2 mm, which puts every sheet cleanly onto the cutting table. Correct placement reduces material waste at the edges, prevents the cutting head from colliding with a shifted plate, and keeps the machine’s own alignment valid cycle after cycle. The high-speed variable frequency motor that drives the traverse maintains this accuracy at speed, so the lights-out cycle does not trade precision for throughput. If a fault does stop the cycle, the PLC leaves the plate in a known position and logs the event, so restarting takes minutes rather than a full re-setup.

Double-Sheet Prevention Is Built Into the Feed

Thin plates and plates with a light oil film have a habit of sticking together. One double-fed sheet can ruin a cutting program and damage consumables before anyone notices. The Herochu system tackles this with advanced air-blowing and vibration modules that separate the top sheet from the stack, while intelligent sensors detect plates that are still clinging together and trigger a re-separation cycle. The same logic handles sticky or thin material automatically, so process reliability does not depend on the operator catching a problem. The sensors also verify that the separated sheet is a single layer before the traverse starts, so a sticky plate is caught at the source rather than on the table.

Built for Heavy Plate and Long Runs

The structure is built from high-strength Q355 industrial steel and supports plates up to 6,000 x 2,500 mm with a payload of 500 kg. For heavier programs, the tower and manipulator can be customized to warehouse dimensions, layer counts, and load ratings. The Herochu storage tower itself takes 3 x 1.5 m, 4 x 1.5 m, or 4 x 2 m plates in 8 to 13 layers, with 3 t or 5 t per layer and single plate loads from 300 kg to 3,000 kg. That range covers everything from a job shop’s daily mix to the large blanks used in heavy fabrication. Because the tower is modular, a configuration can be enlarged at specification time to match warehouse height and aisle width rather than forcing the building to fit the machine.

Where Lights-Out Loading Pays Off

Metal fabrication centers processing steel, stainless steel, and aluminum plate with fast turnover are the primary fit; the system keeps high-volume job shops cutting through the night. Heavy machinery production uses it for oversized components in automotive, aerospace, and shipbuilding, where large plate and precise alignment matter more than speed alone. Precision engineering shops use it where high-speed processing must not compromise surface quality or positioning accuracy. In all three cases the economic argument is the same: the machine’s cutting time goes up, and the labor attached to each plate goes down. Safety follows the same curve, because strain injuries, dropped sheets, and pinch points disappear with the manual steps that caused them.

A True Lights-Out Configuration

Unattended lights-out storage and loading for laser cutting is not about removing people; it is about removing the manual steps that keep machines idle. The Herochu double-tower warehouse, dual-action truss manipulator, and PLC-controlled cycle let a laser cutting operation produce through the night with the same accuracy as a watched day shift. Describe your plate program and shift structure to Herochu, and the engineering team will size the tower, layers, and payload for a configuration that runs unattended from the first test cut.
