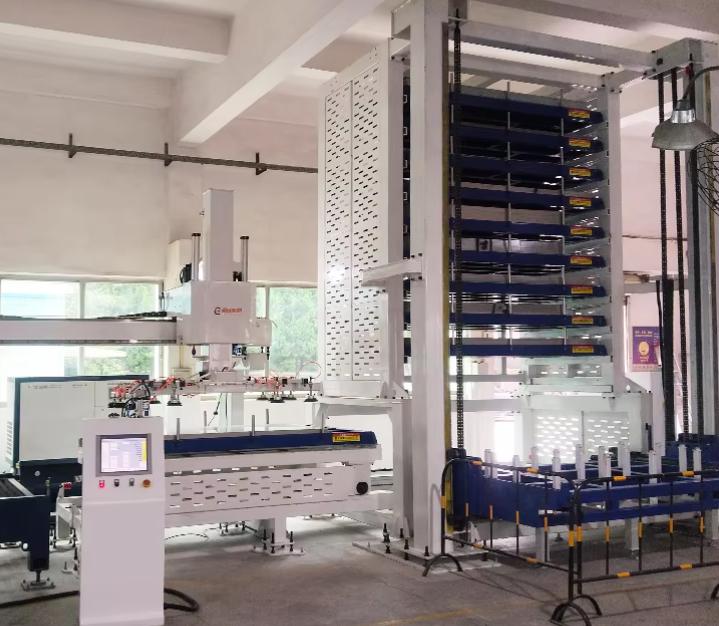

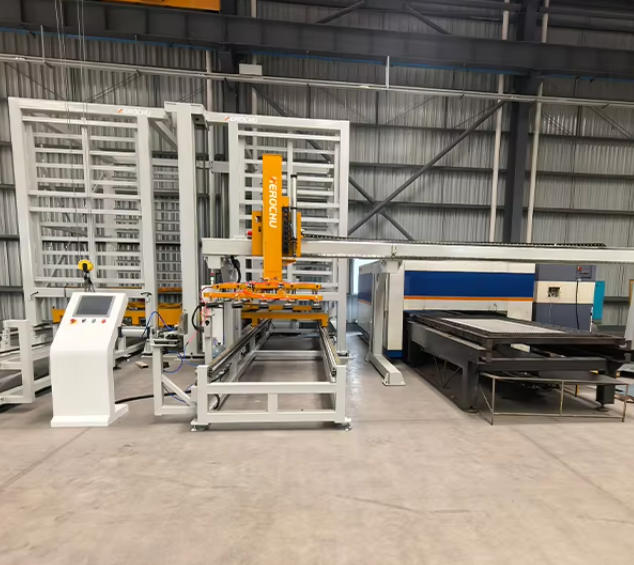

Automated sheet metal magazine with internal loading

Automation in manufacturing is often viewed through the lens of robotics and cutting heads, but the true potential of automation lies in material logistics. The Automated sheet metal magazine with internal loading by Herochu is a testament to this philosophy. This equipment is designed to function as an autonomous hub, managing the lifecycle of a sheet metal plate from the moment it enters the warehouse to the moment it is placed on the processing table.

Category Automated Storage Systems Tag Automated sheet metal magazine with internal loading

Automated sheet metal magazine with internal loading

The defining feature of this “internal loading” capability is the self-contained nature of the operation. The system is equipped to handle the intake of raw materials and organize them onto its shelves without requiring external cranes or manual stacking. This internal logic is powered by sophisticated control software that can poll an MES for the next job, fetch the correct sheet, and prepare it for the operator or the next machine in the line. This reduces the dependency on skilled labor for material handling, allowing operators to focus on programming and quality assurance.

Herochu has specified this machine for heavy-duty endurance. With a vertical lifting speed of 9 meters per minute, the magazine ensures that the retrieval time is negligible compared to the cutting time. The chain drive transmission provides the necessary torque to lift massive loads—up to 3,000 kg maximum stack weight—while maintaining a repeatability of ±0.2 mm. This precision is crucial; in automated environments, a sheet placed even a few millimeters off-center can cause a collision or a ruined cut. The Herochu system eliminates this variance.

The environmental and safety benefits of such automation are profound. By automating the loading process, the workshop environment becomes significantly quieter and safer. The noise level of the system is kept below 70 dB(A), contributing to a better working atmosphere. Moreover, the reduction in forklift traffic reduces the carbon footprint of the facility and lowers the risk of industrial accidents. The system’s safety features, including Category-4 safety relays and 360° LED status lighting, ensure that the interaction between man and machine is governed by strict safety protocols.

Energy efficiency is also baked into the design. The use of variable-frequency vacuum pumps, which reduce power draw by 35%, shows that Herochu is mindful of the operational costs associated with running heavy machinery. This attention to detail extends to the physical build as well; the IP54-sealed wooden crate packaging ensures that the unit arrives in perfect condition and is 100% recyclable, aligning with sustainable manufacturing practices.

Scalability is the final piece of the puzzle. The Automated sheet metal magazine is not a static solution; it is a modular component that can grow with the business. Whether connecting to a Compact Tower or expanding the number of floors from 8 to 13, the system adapts to the changing needs of the production schedule. For manufacturers looking to future-proof their operations, the Herochu magazine offers a pathway to a fully lights-out manufacturing environment where production continues smoothly, shift after shift, with minimal human intervention.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
