Heavy-Duty Cantilever Roll Out Racking for Long Material Storage

In the realm of modern warehousing and logistics, the efficient storage of long, bulky, and irregular items presents a unique challenge. Traditional pallet racking systems often fall short when dealing with materials such as steel tubes, timber, piping, and furniture components. This is where Herochu introduces a specialized solution designed to maximize space and accessibility: the Cantilever Roll Out Racking system. By evolving the concept of standard cantilever shelving, Herochu has engineered a system that combines structural stability with the flexibility of retractable arms, offering a superior alternative for industries that demand precision and safety.

Category Heavy Duty Cantilever Racking Systems Tag Heavy-Duty Cantilever Roll Out Racking for Long Material Storage

Heavy-Duty Cantilever Roll Out Racking for Long Material Storage

The Evolution of Cantilever Storage

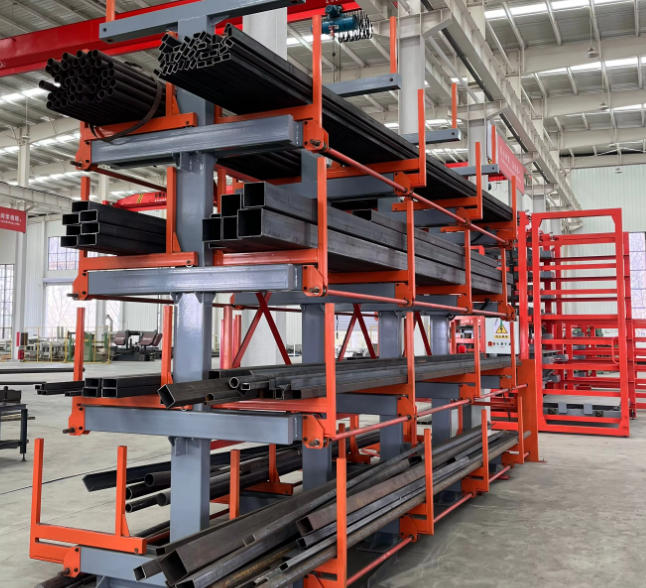

Standard cantilever racks have long been the go-to solution for long loads. However, fixed arms can sometimes restrict access, especially in tight warehouse configurations or when using bridge cranes. Herochu addresses this limitation by incorporating a “roll out” or telescopic mechanism. This innovation allows the cantilever arms to extend outward, providing unobstructed access to the stored inventory. Whether you are storing 6-meter steel bars or irregularly shaped lumber, the ability to retract and extend the arms means that forklifts and cranes can operate with greater ease and reduced risk of damaging the goods or the rack structure itself.

Structural Integrity and Design

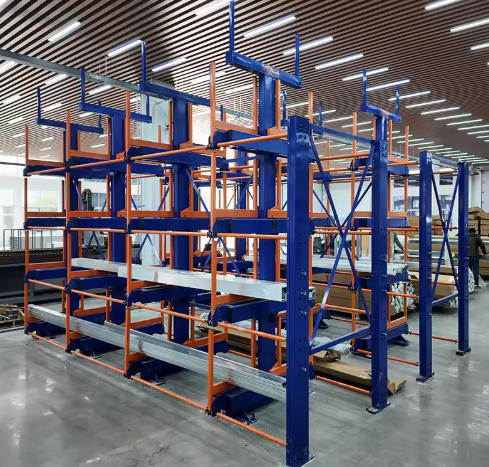

At the core of the Herochu Cantilever Roll Out Racking system is a robust framework designed to withstand significant stress. The upright column frames are constructed using high-quality structural H-section steel or square tubing, welded to ensure rigidity. To further enhance stability, multiple upright frames are interconnected using adjustable diagonal flats and connecting bars. This design philosophy ensures that the rack remains stable even when fully loaded and extended.

The system is versatile, available in both single-sided and double-sided configurations to suit the layout of your facility. The base lengths typically range from 1200mm to 2200mm, providing a solid footprint that distributes the load effectively across the warehouse floor. For businesses with specific spatial constraints, Herochu offers full customization services, tailoring the dimensions to fit the exact size of your goods and your warehouse architecture.

Operational Efficiency and Safety

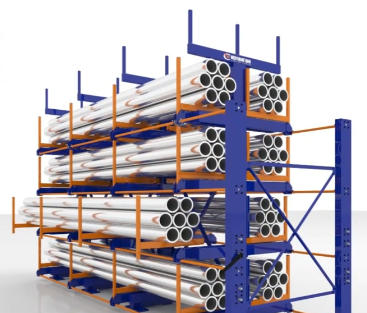

Safety is paramount in any industrial setting. The Herochu roll-out design significantly improves operational safety. When the arms are retracted, the load is tucked securely within the rack’s footprint, minimizing the chance of accidental collisions with passing traffic. When access is required, the arms can be extended—often up to 100% of their length—allowing overhead cranes or forklifts to engage the load directly without maneuvering into tight spaces. This is particularly beneficial for handling heavy items like steel pipes, where precise alignment is crucial.

Technical Specifications
The Herochu system is engineered for heavy-duty performance.

Material: Manufactured using GB-T Q235, Q345, and 45# high-class carbon steel, ensuring durability and resistance to deformation.
Load Capacity: Each arm is designed to support between 600kg and 1000kg, making it suitable for the heaviest industrial materials.
Height: The system can be configured with 2 to 7 layers, with story heights adjustable between 440mm and 940mm. Total system heights can exceed 6.5 meters, utilizing vertical space effectively.
Arm Length: Standard arms range from 500mm to 1000mm, but Herochu can customize arms up to 3 meters for specialized applications.

By choosing Herochu Cantilever Roll Out Racking, facility managers can transform their storage capabilities, turning chaotic piles of long materials into organized, accessible, and safe inventory systems.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
