Dual-Use Steel Plate Storage Rack and Pipe Storage Rack for Industrial Yards

Industrial storage yards and metal fabrication facilities often face a split inventory: flat steel plates on one side, cylindrical pipes on the other. Traditional storage solutions force a choice between a steel plate storage rack and a pipe storage rack, but rarely do both functions integrate well within the same footprint. Herochu addresses this limitation with a hybrid design that adapts the manual telescopic cantilever principle to accommodate both product shapes. The result is a steel plate storage rack pipe storage rack system that handles flat stock and tubular goods without compromising on density or access speed.

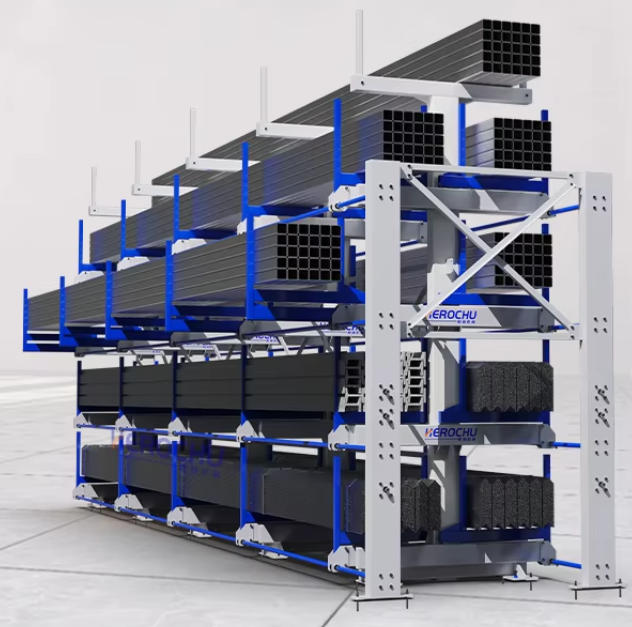

The core structural element remains the upright column frame, fabricated from GB-T Q235 square tubing. Herochu welds each frame to strict tolerances, ensuring vertical alignment even under asymmetrical loads. Multiple frames connect using adjustable diagonal flats and connecting bars, with the connecting bars serving a dual purpose: they improve overall stability and provide intermediate support points for shorter pipe lengths. The base length ranges from 1200mm to 2200mm, customized to the typical length of plates or pipes stored. For steel plates, a shorter base length with wider arm spacing works well. For pipes, longer bases with closer arm spacing prevent sagging.

When configured as a steel plate storage rack, the telescopic arms retract fully into the column frame, creating a flat, horizontal support plane. Plates up to 1000mm wide and 600 kg to 1000 kg in weight per arm rest directly on the extended arms. The operator uses a manual winch to deploy the arms, slides the plate onto the rack using an overhead crane or forklift, then retracts the arms. For thicker plates requiring more support, Herochu can increase the number of arms per level or reduce the vertical spacing between stories, with story heights adjustable from 440 mm to 940 mm.

Switching the same rack to pipe storage mode requires no hardware changes. The identical telescopic arms that supported flat plates now cradle individual pipes or bundles of small-diameter tubing. Because pipes naturally want to roll, Herochu recommends adding optional pipe stops or wooden dunnage between layers. The telescopic action proves especially valuable for pipes: the arms extend out, the crane lowers the pipe bundle, and the arms retract, pulling the pipes snug against the column face. This eliminates the need for deep reach forks or specialized pipe-handling attachments.

The load capacity of the Herochu steel plate storage rack pipe storage rack remains consistent at 600–1000 kg per arm. However, the distribution of that load differs between plates and pipes. A 1000 kg steel plate exerts uniform pressure along the arm length. A bundle of pipes concentrates that weight at two or three contact points. Herochu reinforces the telescopic rail sections to handle point loading without bending or binding. The material condition uses 45# high-class carbon steel for the rail guides, while the arms themselves utilize Q345 steel for higher yield strength.

Height configurations matter more for pipe storage than for plates. Pipes stored vertically in a rack require sufficient active height between arms to prevent crushing or deformation. Herochu sets the active height between 250 mm and 800 mm, depending on pipe diameter. For large-diameter pipes exceeding 300 mm, a taller active height with fewer total layers (three to four) works best. For small-diameter tubing, seven layers with 250 mm active height maximize density. The steel plate storage rack side of the configuration typically uses fewer, taller stories because plates are stacked flat rather than on edge.

Durability in harsh environments sets Herochu apart. Many steel plate storage rack pipe storage rack systems use light-gauge formed steel that deforms under repeated heavy loads. Herochu relies on structural H steel and heavy square tubing for all primary load paths. The winch mechanisms are enclosed and greased for long-term operation. For outdoor yards, the entire assembly can be hot-dip galvanized or painted with industrial-grade epoxy. Free samples of the arm guide mechanism are available for testing, with the buyer covering delivery costs. OEM modifications allow for specialized arm coatings or non-standard widths.

From an operational workflow perspective, the hybrid nature of this rack reduces equipment movement. A single crane aisle serves both plate and pipe storage zones. When plate demand is high, operators retract arms in the pipe section to clear space for crane movement. When pipe orders dominate, the plate section arms retract. This flexibility is impossible with fixed-arm cantilever racks or separate steel plate storage rack and pipe storage rack units. Herochu provides installation drawings and on-site instruction to ensure proper alignment and safe operation. Design services are available for facilities with unusual overhead clearance or seismic requirements.

Cost comparison favors the hybrid approach. Two separate racks would require double the base plates, double the upright frames, and double the installation labor. The Herochu steel plate storage rack pipe storage rack uses a single structural skeleton with adjustable telescopic arms. The incremental cost of adding pipe-specific features is minimal compared to buying two dedicated systems. For fabrication shops that handle both raw materials, this represents a direct reduction in capital expenditure.

Herochu has successfully deployed these hybrid racks in steel service centers that previously used floor storage for plates and separate racks for pipes. Floor storage led to damage, waste, and safety risks. The new racking system organized both inventories within the same footprint while improving crane utilization. Operators report fewer collisions between loads and stored materials because the retracted arms keep the aisle clear. For any facility storing both flat plates and cylindrical pipes, the Herochu steel plate storage rack pipe storage rack offers a practical, space-efficient answer.
