Heavy-Duty Automated Storage & Retrieval System (ASRS) for Steel Pipe, Rebar & Long Profiles

The industrial landscape has long struggled with a persistent logistical paradox: the very materials that drive heavy fabrication—steel pipes, rebar bundles, structural beams, and long profiles—are among the most difficult to store, track, and retrieve efficiently. Floor-level cantilever racks consume hundreds of square meters of premium factory space. Overhead cranes demand skilled operators and introduce safety risks with every lift. Manual inventory counts rely on clipboards and walking the yard, producing records that are outdated before the walk is complete.

Herochu has engineered a fundamental departure from these legacy methods. The Heavy-Duty Automated Storage & Retrieval System (ASRS) for Steel Pipe, Rebar & Long Profiles replaces horizontal sprawl with vertical density, transforming underutilized overhead airspace into a digitally managed three-dimensional storage matrix. This is not a conventional racking system retrofitted with automation. It is a purpose-built vertical silo architecture designed from the ground up for the unique physical characteristics of long, heavy materials—their tendency to sway during movement, their substantial per-unit mass, and the geometric diversity that ranges from round pipes to I-beams to bundled rebar.

Gantry-Driven Automation with Sub-Millimeter Precision

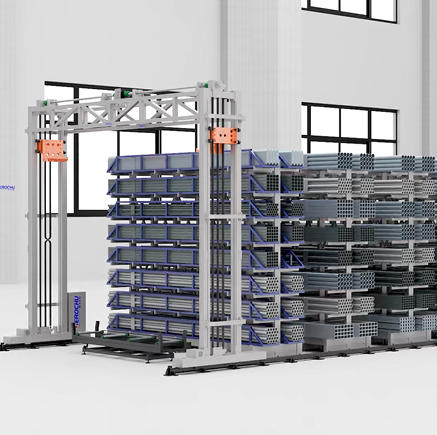

At the heart of the Herochu ASRS is a gantry-based retrieval system that operates with ±2 mm repeatability. The gantry travels along floor-mounted rails spanning the rack aisle, carrying a vertical mast equipped with a lifting platform. AC servo motors drive the horizontal and vertical movements through rack-and-pinion or chain transmission systems, achieving travel speeds adjustable from 5 to 30 meters per minute.

The system architecture accommodates pipe lengths from 6,000 mm to 8,000 mm across multiple storage towers. Each tower can be configured with five to eight storage layers, with per-level load ratings reaching 3,000 kg to 5,000 kg depending on the model specification. This modular design enables facilities to scale the system precisely to their material mix and throughput requirements, rather than forcing operations into a one-size-fits-all configuration.

Intelligent Inventory Management and ERP Integration

The intelligence of the Herochu Heavy-Duty ASRS extends far beyond mechanical movement. The system integrates Programmable Logic Controllers (PLC) with an intuitive Human-Machine Interface (HMI) that provides real-time inventory visibility at the operator’s fingertips. Every storage position—every cantilever arm in every bay of every tower—is mapped to a unique three-coordinate address within the warehouse control system database.

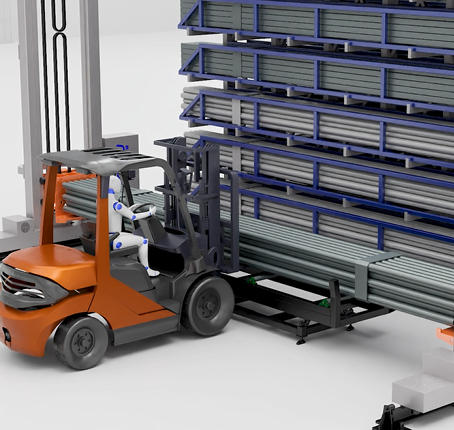

When new material arrives at the inbound station, the operator scans the bundle, verifies the material grade and heat number against supplier documentation, and places the bundle onto the handling cradle. The Warehouse Management System (WMS) queries the cell map for the nearest available empty cell that fits the bundle dimensions and weight, assigns the cell address, and dispatches the gantry to execute the put-away. The operator does not decide where the material goes. The system does, applying logic that optimizes travel distance for frequently picked SKUs and reserves heavier cells at lower rack levels to minimize lifting energy.

This cell-level indexing eliminates the gap between physical inventory and system records that plagues manual warehouses. Every movement—put-away, retrieval, relocation—is a PLC-logged transaction. The inventory count reflects the running balance of all gantry movements, reconciled against receipt and shipment logs. Discrepancies surface immediately, not at year-end physical inventory. The system supports barcode and QR code scanners for strict lot- and batch-level tracking, meeting the traceability requirements of aerospace, automotive, and other quality-critical industries.

Operational Transformation and ROI

The operational impact of the Herochu Heavy-Duty ASRS is quantifiable and immediate. Material retrieval time collapses from 15–20 minutes of manual searching to approximately 90 seconds of automated delivery. The system virtually eliminates mispicks—errors in selecting the wrong diameter, grade, or length—reducing material waste and production delays. For facilities operating multi-shift schedules, the system enables “lights-out” overnight material feeding, allowing automated cutting cycles to continue through unattended shifts.

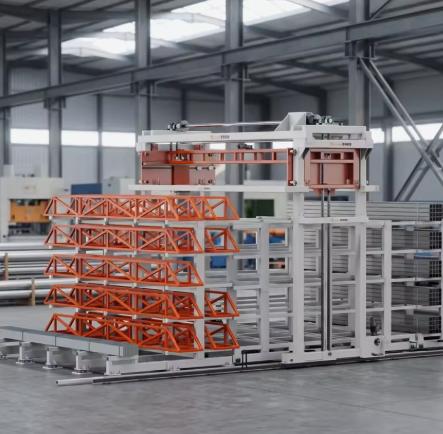

Floor space utilization improves dramatically. A typical Herochu installation rises 9 to 16 meters on a footprint of approximately 200–300 square meters, delivering over 80% floor space reduction compared to conventional storage layouts occupying 1,500 or more square meters. The vertical configuration also eliminates the need for hazardous manual climbing, overhead crane operations for routine picking, and ladder usage—safety improvements that translate directly to lower workers’ compensation costs and reduced operational risk.

Herochu manufactures this Heavy-Duty Automated Storage & Retrieval System for Steel Pipe, Rebar & Long Profiles in its 10,000 m² ISO 9001-certified facility in Shandong, China, with CE compliance and mandatory pre-shipment structural load testing. The company offers global on-site installation, debugging, and operational training, ensuring that the transition to automated long goods storage delivers immediate and sustained operational value.
