Factory Custom Gantry Intelligent Manipulator Systems

No two sheet metal fabrication lines share identical constraints. Bed length, plate thickness, ceiling clearance, floor rail layout, upstream storage type, and downstream sorting flow all vary. A gantry manipulator that cannot adapt to those variables forces the plant to adapt to the machine — the wrong direction. Herochu approaches this with a factory custom gantry intelligent manipulator architecture, where the core motion platform stays standardized but the tool head, span, payload class, and control integration are configured to the installation.

The customization starts at the model-selection stage. Herochu offers five standard platforms — HC-RT2513-300, HC-RT3015-500, HC-RT4015-500, HC-RT4020-500, and HC-RT6015-500 — covering sheet sizes from 2500×1300 mm through 6000×1500 mm and load capacities of 300 kg or 500 kg. Within each platform, the factory configures the gantry span to match the specific laser cutter model, adjusts the tool-head cup layout to the plate formats the shop runs, and sets the control interface to communicate with the plant’s existing CNC and WMS infrastructure.

Intelligent Control Architecture

The word “intelligent” in the system name refers to the PLC-driven control layer that governs every cycle. The Herochu gantry intelligent manipulator runs on a touchscreen HMI that displays real-time material positioning, cycle status, and fault codes. The controller interfaces with the laser cutter’s CNC system — when a cutting program finishes, the gantry receives the signal and initiates the unload-load sequence without operator prompting.

Fault detection runs continuously through the cycle. The vacuum pressure sensor, position encoders, and end-of-travel limit switches all report to the PLC. If a pick fails — low vacuum, no sheet detected, double-sheet condition — the controller logs the event, attempts a retry if the fault is recoverable, and halts the cycle with a specific diagnostic code if it is not. Maintenance technicians read the code on the HMI and know whether to check the air supply, the cup seals, or the sheet stack alignment before walking to the machine.

CNC and WMS Integration Depth

The factory custom gantry intelligent manipulator does not operate as an isolated device. Herochu designs the control architecture to synchronize with the plant’s broader automation stack. The gantry’s PLC exchanges signals with the laser cutter CNC (program start/finish, bed ready, safety interlock), the double-layer exchange material car (sheet staged, position confirmed), and — where the plant operates one — the warehouse management system or automated storage and retrieval system (ASRS) that supplies raw stock.

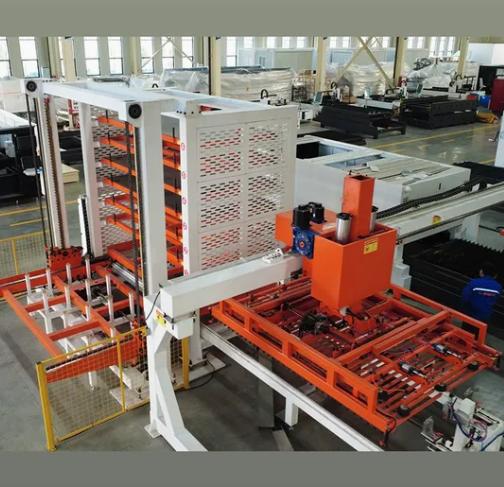

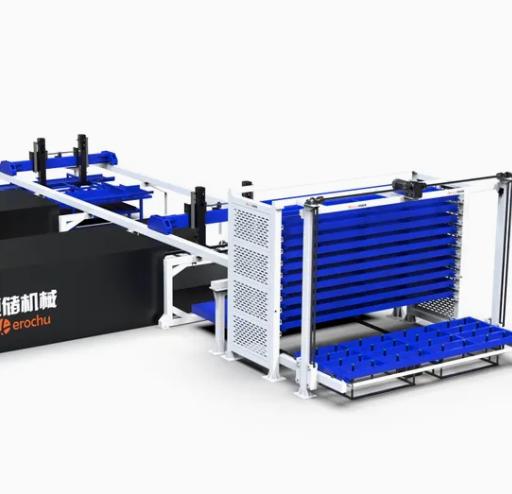

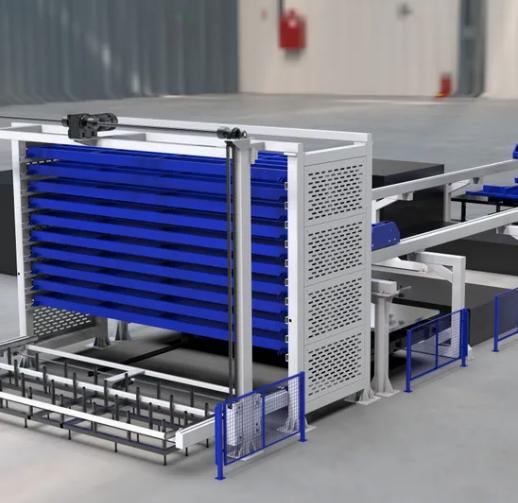

That WMS integration is where the “custom” label carries real weight. A plant with an existing vertical plate storage tower from Herochu or another supplier can have the gantry pull sheets directly from the storage rack rather than from the exchange car. The controller queries the WMS for the next sheet by material grade and thickness, the storage system presents it at the pick position, and the gantry executes the retrieval. No operator selects or stages the plate manually — the production schedule drives the material flow.

Model Selection Logic

Choosing the correct Herochu configuration comes down to four variables: sheet dimension, payload, cycle speed requirement, and facility utility capacity.

Sheet dimension sets the floor model. A shop whose largest format is 3000×1500 mm needs the HC-RT3015-500; specifying a larger gantry wastes structural capacity and capital. A shop running 4000×2000 mm plate needs the HC-RT4020-500 — the 4015 platform cannot clear the wider sheet.

Payload determines the series. The 300-series handles 300 kg maximum; the 500-series handles 500 kg. Plate weight depends on material density, thickness, and area — a 6 mm steel plate at 3000×1500 mm weighs roughly 210 kg, within the 300-series range. The same format at 10 mm thickness exceeds 350 kg and requires the 500-series.

Cycle speed — the gantry traverse at 10–30 m/min, lift at 5–10 m/min, fork adjustment at 5–20 m/min — is uniform across models. The decision is not which model is faster but whether the shop’s cutting cycle time leaves enough window for the manipulator to complete its load-unload sequence. Herochu engineers can review the cutting program duration and confirm the manipulator cycle fits within it.

Utility capacity — air supply at 0.6–0.7 MPa and 1.5 m³/min consumption — is the same for all models. If the plant’s compressor cannot sustain that draw alongside existing pneumatic equipment, the installation scope includes a compressor upgrade. This is a facility-planning decision, not a model-selection decision, but Herochu flags it during the custom specification process.

Tool Head Configuration

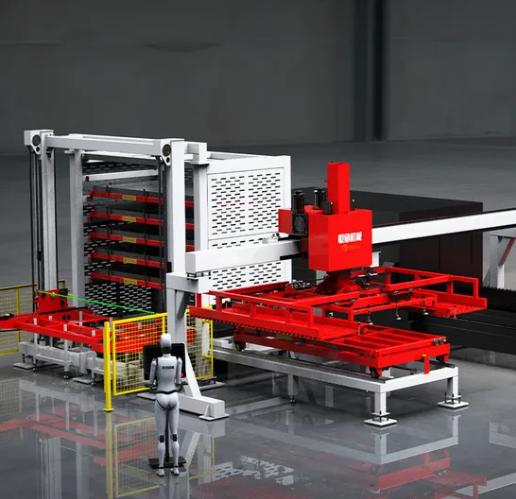

The standard tool head combines vacuum suction cups for loading and mechanical grippers for unloading. Customization adjusts the cup count, spacing, and manifold layout to the specific plate sizes the shop runs. A plant cutting a narrow product mix — always 3000×1500 mm, always 4–8 mm thickness — gets a fixed cup array optimized for that format. A plant running mixed formats gets a telescoping or selectable cup array that the CNC activates based on the current sheet dimensions read from the WMS or measured at the pick station.

Gripper configuration on the unload side follows the same logic. Standard cut-sheet removal uses a fixed jaw width. Parts with large cutouts or narrow skeleton webs may need adjustable jaws or additional support fingers to prevent the cut sheet from sagging during transfer. Herochu configures these during the custom engineering phase based on sample parts from the shop.

Safety and Compliance Engineering

Every Herochu factory custom gantry intelligent manipulator ships with CE, UE, and ISO 9001 compliance documentation. The safety system includes perimeter fencing, redundant light curtains that halt motion when breached, and emergency-stop circuits wired to cut power to the drive systems. These are not optional add-ons — they are part of the base package because the manipulator operates in the same envelope as personnel who load raw material and remove finished parts.

The custom configuration extends to safety layout. The fencing footprint, access gate locations, and light-curtain positions adjust to the plant’s floor plan and the adjacent equipment arrangement. A cell tucked into a corner against a wall has different access requirements than one sitting center-floor with material flow on two sides. Herochu’s engineering team reviews the site layout and specifies the safety hardware accordingly.

Commissioning and Training

A factory custom system arrives commissioned to the specified configuration but requires on-site integration with the laser cutter and storage systems. Herochu handles the mechanical installation — gantry erection, rail leveling, end-carriage alignment — and the electrical and pneumatic tie-ins. The commissioning phase includes cycle testing with actual plate loads, verification of the ±2 mm repeatability, and fault-injection drills to confirm the safety interlocks function under simulated failure conditions.

Operator training focuses on the HMI interface, cycle monitoring, and routine fault response. The controller’s diagnostic codes are documented so operators can clear common faults — a misaligned sheet, a low-air warning — without calling maintenance. Deeper service tasks — guide-rail lubrication, chain tension, cup replacement — go to the maintenance team with full procedure documentation.

ROI and the Custom Configuration Premium

Custom engineering adds upfront cost compared to an off-the-shelf unit, but the premium buys fit. A manipulator matched to the shop’s actual sheet formats, payload range, and control infrastructure runs at full cycle efficiency from day one. A mismatched unit — too small for the largest plate, too slow for the cutting cycle, or unable to talk to the existing WMS — never reaches its rated throughput. Herochu’s 12–18 month target payback assumes the configuration is correct. The custom specification process is how that assumption holds true.

The throughput gain — 30–50% increase in factory output by sustaining uninterrupted cutting cycles — and the 30% material handling cost reduction are achievable numbers when the gantry, cutter, storage, and control systems are specified as an integrated cell. That integration is what the factory custom gantry intelligent manipulator delivers.
