Electric Foldable Cantilever Rack for Sheet Metal

Handling sheet metal in manufacturing environments presents unique challenges. Standard pallet racks often fail to accommodate the wide, flat dimensions of metal sheets, while floor stacking leads to damage, safety hazards, and inefficient use of floor space. The Electric foldable cantilever rack for sheet metal from Herochu solves these problems by combining powered retraction with a cantilever design specifically engineered for flat stock.

Why Sheet Metal Demands a Specialized Rack

Sheet metal typically comes in gauges from 0.5mm to 6mm, with widths exceeding 2 meters and lengths up to 6 meters or more. Conventional storage methods—leaning sheets against walls or stacking them horizontally—cause edge dings, surface scratches, and dangerous sliding. Moreover, retrieving a single sheet from a stack often requires two workers and risks cutting injuries. A cantilever rack designed for sheet metal eliminates these risks by storing each sheet vertically or on inclined arms, with individual access points.

Herochu’s electric foldable design takes this further. The folding mechanism allows arms to retract when not in use, creating clear aisles for forklifts or overhead cranes. When extended, each arm supports up to 800 kg, sufficient for even heavy-gauge steel plates.

Engineering the Foldable Cantilever Action

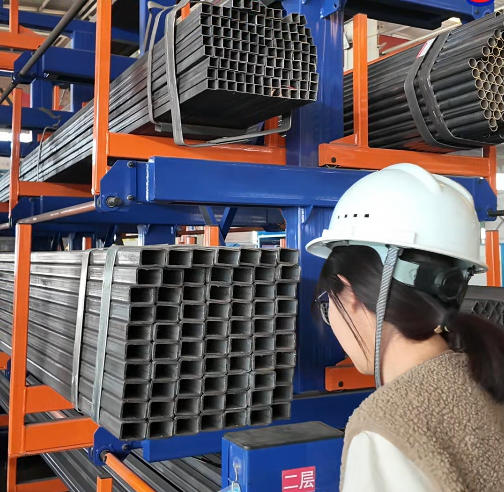

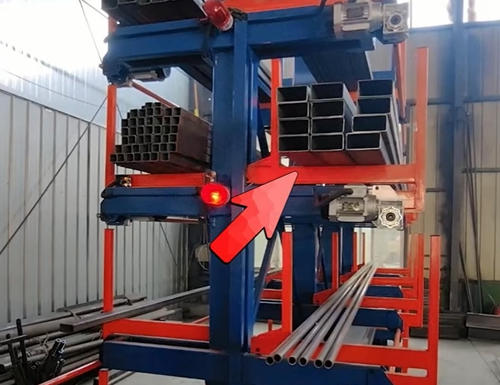

Unlike hydraulic or purely mechanical systems, Herochu integrates an electric winch drive into the cantilever base. The operator activates a pendant control or wireless remote, and the motor rotates a worm gear that drives a lead screw. This screw pushes or pulls the cantilever arm assembly along linear rails. The folding motion is not a simple hinge but a controlled telescopic fold: the arm sections slide into each other, reducing the overall projection from full extension (e.g., 1200 mm) to a compact 400 mm.

Key engineering choices include:

• Q235B steel construction for the arm profiles, with a powder-coated finish that resists corrosion from cutting fluids or humidity.

• Double-row ball bearing slides inside the foldable sections, rated for 100,000 cycles.

• Magnetic limit switches that automatically stop the motor at full extension or full retraction, preventing over-travel.

• Manual override crank included for emergency operation if power fails.

The foldable feature is especially valuable for sheet metal because it allows the rack to be placed close to shears or laser cutters. When the operator needs to load or unload, they extend only the required arm. After retrieval, the arm folds back, keeping the aisle clear for other material handling equipment.

Structural Components Customized for Flat Stock

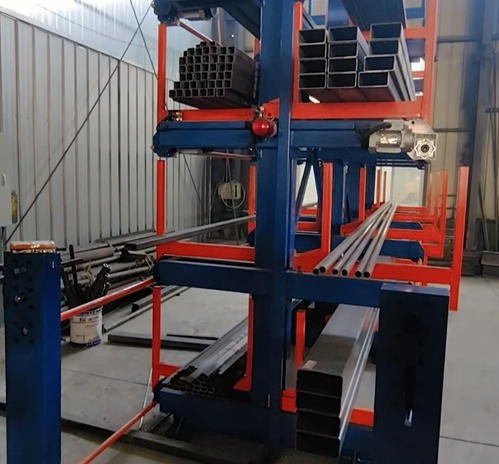

Herochu’s electric foldable cantilever rack uses a base constructed from H-beam steel, welded with gusset plates to resist the high bending moment created by long sheet loads. The upright columns are double-sided or single-sided depending on layout needs. Hole spacing at 100 mm intervals allows vertical adjustment of the cantilever arms in 100 mm increments—critical for accommodating different sheet thicknesses and stack heights.

The arms themselves are unique. Instead of round or rectangular tubes, Herochu uses a tapered C-channel design. The open side faces upward, and a replaceable UHMW polyethylene liner runs along the top edge. This liner prevents metal-to-metal contact, eliminating scratching on finished sheets. For extra safety, each arm includes a raised backstop lip at the rear, preventing sheets from sliding off the back of the rack.

Cross braces connect uprights in both X and Z directions, transforming the individual racks into a rigid bank. For sheet metal storage, Herochu recommends anchoring the rack to the floor using expansion bolts, as the high surface area of stored sheets can catch air currents from passing forklifts.

Operational Workflow for Sheet Metal Shops

A typical use case: A fabrication shop receives a delivery of 4’×8′ sheets of 14-gauge galvanized steel. The forklift driver places a bundle onto the extended cantilever arms of the Herochu rack. Because the arms are foldable, the driver can approach perpendicular to the rack, set the bundle down, then retract the arms halfway—just enough to clear the aisle—while leaving the sheets supported. Later, a machine operator needs a single sheet. They press the extend button, walk to the rack, slide the top sheet forward onto a roller conveyor, and retract the arms. Total time under 30 seconds.

This efficiency translates to documented 40% reduction in material handling labor compared to A-frame racks. Additionally, the electric foldable mechanism eliminates manual cranking, which in traditional mechanical racks causes operator fatigue and inconsistent retraction speeds.

Maintenance and Safety Considerations

Herochu equips every electric foldable cantilever rack with a thermal overload protector in the motor circuit. If the arm encounters an obstruction during extension—such as a sheet that shifted out of position—the motor automatically reverses 50 mm and stops, preventing damage. The powder coating (or hot-dip galvanizing option for outdoor use) meets ISO 1461 standards. Lead time for custom configurations is 20 days, with SGS and ISO certification provided.

For sheet metal storage, the rack’s height ranges from 0 to 5 meters. Higher configurations require seismic bracing in earthquake-prone regions. Herochu’s engineering team supplies installation drawings and can recommend anchor patterns based on local building codes.

Conclusion

The electric foldable cantilever rack for sheet metal is not a generic cantilever rack with a motor added. It is a purpose-built system where every component—from the tapered arm profile to the magnetic limit switches—addresses the specific needs of flat stock storage. By choosing Herochu, fabricators gain a solution that reduces damage, improves throughput, and maximizes floor space utilization.
