Customized Steel Pipe Double Side Industrial Cantilever Shelf

Space is the most valuable currency in warehousing. As real estate costs rise, the pressure to increase storage density without compromising accessibility becomes paramount. For facilities dealing with long materials, the Customized Steel Pipe Double Side Industrial Cantilever Shelf represents the optimal balance between high-density storage and operational agility. This article delves into the spatial dynamics of double-sided cantilever systems and how Herochu engineers these units to transform warehouse efficiency.

I. The Spatial Logic of Double-Sided Storage

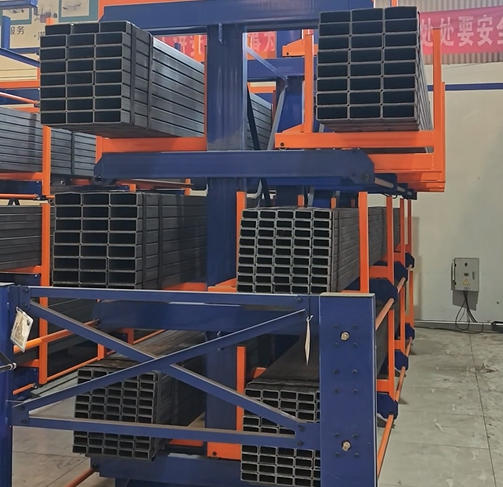

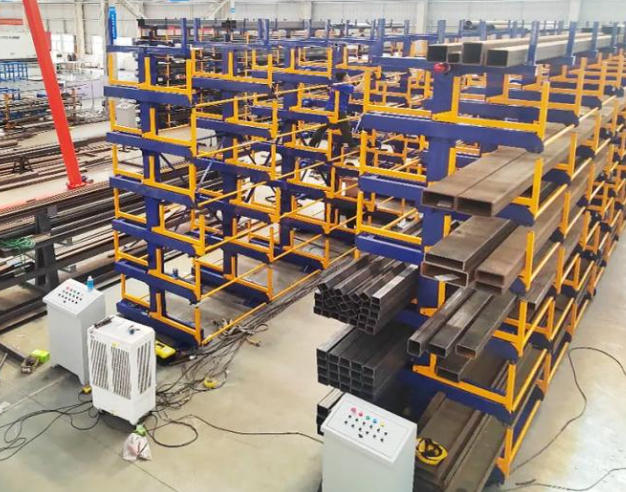

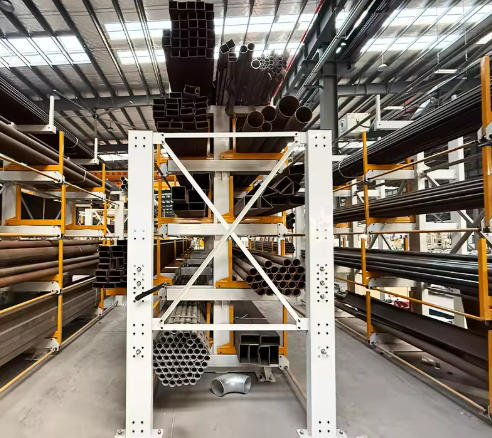

The fundamental advantage of a double-sided cantilever system lies in its ability to share a vertical support structure between two storage zones. In a single-sided arrangement, a column supports arms on one side, leaving the back of the column exposed or against a wall. In a double-sided configuration, a single column supports arms on both faces, effectively creating a “back-to-back” storage aisle.

This design creates a shared aisle that services two rows of inventory. When a forklift or crane operates in this aisle, it has immediate access to goods on both the left and right. This reduces the total number of aisles required in a facility, thereby increasing the volume of goods stored per square meter of floor space. The Customized Steel Pipe Double Side Industrial Cantilever Shelf is particularly effective in large, open-plan warehouses where maximizing the central storage area is the primary objective.

II. Customization: Tailoring the System to the Load

The term “Customized” in the product title is not merely a descriptor; it is a functional necessity. Steel pipes, aluminum extrusions, and timber vary wildly in length, weight, and center of gravity. A standardized shelf often results in wasted vertical space or inadequate support points.

Herochu approaches customization through a modular design philosophy:

Arm Configuration: The number of arms per column can be adjusted. A facility storing short copper fittings might utilize six levels of arms, while a facility storing massive steel girders might only need three.
Beam Length and Capacity: The length of the cantilever arm dictates the depth of the storage bay. Herochu offers arms that can extend significantly to accommodate extra-long loads (e.g., 12-meter pipes) without deflection. The gauge of the steel used for the arm is calculated based on the required load capacity, ensuring that a “heavy-duty” rating is a guarantee, not a suggestion.
Column Spacing (Bay Width): The distance between uprights can be customized. This is critical for preventing “bridge spanning,” where a long pipe rests only on the arms of two distant columns and sags in the middle. By adjusting the bay width, Herochu ensures continuous support for the material.

III. The Mechanics of the Double-Side Interface

In a Customized Steel Pipe Double Side Industrial Cantilever Shelf, the connection between the arm and the column is a critical stress point. Herochu utilizes high-strength bolted connections or specialized插销 (pin) systems that allow for rapid reconfiguration while maintaining structural rigidity.

The columns themselves are often constructed from structural steel channels or box sections. In double-sided setups, the column acts as a central spine. To prevent torsion (twisting) caused by uneven loading on opposite sides, these columns are reinforced with heavy-duty bracing and tie-backs. This ensures that even if one side is fully loaded and the other is empty, the rack remains plumb and stable.

IV. Integration with Material Handling Equipment

The design of the double-sided shelf is intrinsically linked to the equipment used to service it. The “Customized” aspect often involves analyzing the client’s forklift fleet or crane capabilities.

Forklift Compatibility: The aisle width between double-sided rows must be wide enough to accommodate the turning radius of the forklift, especially if the forklift is carrying a long load sideways. Herochu’s design team calculates these clearances to prevent collision damage.
Crane Operations: For overhead crane operations, the height of the double-sided shelf is optimized to allow the crane hook sufficient clearance to lift the load vertically without snagging the arms.

V. Safety and Visibility

A common concern with double-sided racking is visibility. Operators need to see what is stored on the “far side” of the rack or deep within the arms. Herochu addresses this by offering high-visibility color options (typically safety orange or yellow) for the arms, contrasting with the blue or grey columns. This color coding helps operators judge distances and load positions more accurately.

Furthermore, the Customized Steel Pipe Double Side Industrial Cantilever Shelf often incorporates safety stops or end-stops on the arms. These physical barriers prevent pipes from rolling off the ends during the loading process. In double-sided setups, where loads might be placed from either direction, these safety features are vital for preventing accidents in the aisle.

VI. Conclusion

The Customized Steel Pipe Double Side Industrial Cantilever Shelf is a masterclass in spatial efficiency. By leveraging the double-sided architecture, warehouses can nearly double their storage capacity within the same footprint compared to single-sided wall systems. Through Herochu’s commitment to customization, this system is not a rigid structure but a flexible framework that adapts to the specific dimensions and weights of the inventory, ensuring that every cubic meter of the warehouse is utilized to its full potential.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
