Sheet Metal Storage Rack Design: Maximize Space and Protect Material Integrity

Efficient storage of sheet metal remains a persistent challenge in fabrication shops, laser cutting facilities, and metalworking environments. Stacking plates leads to surface scratches, dents, bending deformation, and significant material waste. A well-executed sheet metal storage rack design directly addresses these pain points while transforming how workshops utilize floor space and manage inventory. Herochu has developed a range of storage solutions that prioritize board protection, space efficiency, and operational simplicity.

The Core Principles of Modern Sheet Metal Storage

Traditional sheet metal storage methods rely on stacking plates horizontally or leaning them against walls. Both approaches introduce risks: stacked sheets scratch each other under pressure, while vertical leaning can cause warping or dangerous falls. A purpose-designed sheet metal storage rack eliminates these hazards by supporting each sheet independently on a flat, horizontal drawer. This design ensures no contact between plates, preserving surface finishes and preventing bending stress.

Herochu’s sheet metal storage rack design incorporates a vertical stratification architecture that converts two-dimensional floor storage into a three-dimensional structure. By stacking drawers vertically, workshops can store dozens of sheets within a footprint that previously held only a few stacks. The vertical design also enables first-in-first-out (FIFO) inventory management, reducing the risk of material obsolescence or surface corrosion caused by long-term backlog.

Structural Features That Define Performance

A sheet metal storage rack must withstand repeated loading cycles while maintaining alignment and smooth operation. Herochu builds its racks from heavy-duty all-steel structures with high tensile strength. The frame uses reinforced box-section columns and cross-braces to resist torsional forces during drawer extension. Each rack undergoes finite element analysis to verify stress distribution, ensuring that load paths remain efficient even under maximum rated capacity.

The drawer mechanism represents the most critical engineering element. Herochu equips its racks with heavy-duty guide rails featuring precision-ground ball bearing slides or roller systems. These rails resist jamming even when loaded to capacity, providing consistent extension force across the full travel distance. Anti-slip surfaces on each drawer deck prevent plates from shifting during opening or closing, while integrated limit devices stop drawers from accidentally pulling out completely.

Operational Efficiency and Labor Reduction

Manual handling of large sheet metal plates typically requires two or more workers and material handling equipment. Herochu’s sheet metal storage rack design reduces this labor requirement through ergonomic access. Each drawer pulls out to 100% of its length, allowing overhead cranes, forklifts, or vacuum lifters to directly access the stored sheet without repositioning. The operator simply selects the required drawer, extends it fully, and retrieves the top sheet.

For environments without powered lifting aids, Herochu offers hand-cranked drawer operation. The crank mechanism multiplies operator torque, allowing a single person to extend a fully loaded drawer with minimal effort. Electric motorized options provide one-button start functionality, ideal for high-frequency retrieval operations. This design flexibility means workshops of any size can implement a sheet metal storage rack without investing in additional material handling infrastructure.

Protecting Material Investment

Sheet metal represents a significant capital investment for any fabrication business. Scratches, pits, and bending damage directly reduce usable material yield. Herochu’s independent flat storage approach eliminates inter-sheet friction, preserving factory finishes on materials such as stainless steel, aluminum, painted sheets, and polished plates. The horizontal orientation prevents gravity-induced bowing that occurs with vertical storage, maintaining flatness for precision cutting operations.

The FIFO capability inherent to drawer-type racks encourages systematic inventory rotation. Plates loaded from the rear or top are retrieved in order of receipt, reducing the likelihood of age-related degradation. For materials prone to rust or tarnish, this rotation schedule ensures that no sheet remains in storage longer than necessary. Many Herochu customers report material waste reductions exceeding 15% after switching from stacked storage to drawer-type racks.

Customization for Specific Applications

No two fabrication shops have identical material dimensions or workflow patterns. Herochu offers fully customizable sheet metal storage rack designs to accommodate plate lengths from 2 meters to 6 meters, widths up to 2 meters, and single-layer load capacities ranging from 2 tons to 10 tons. Drawer count, height spacing, and overall rack dimensions adjust to fit available ceiling heights and aisle widths. Color coding and logo placement support 5S visual management systems.

Quality Assurance and Compliance

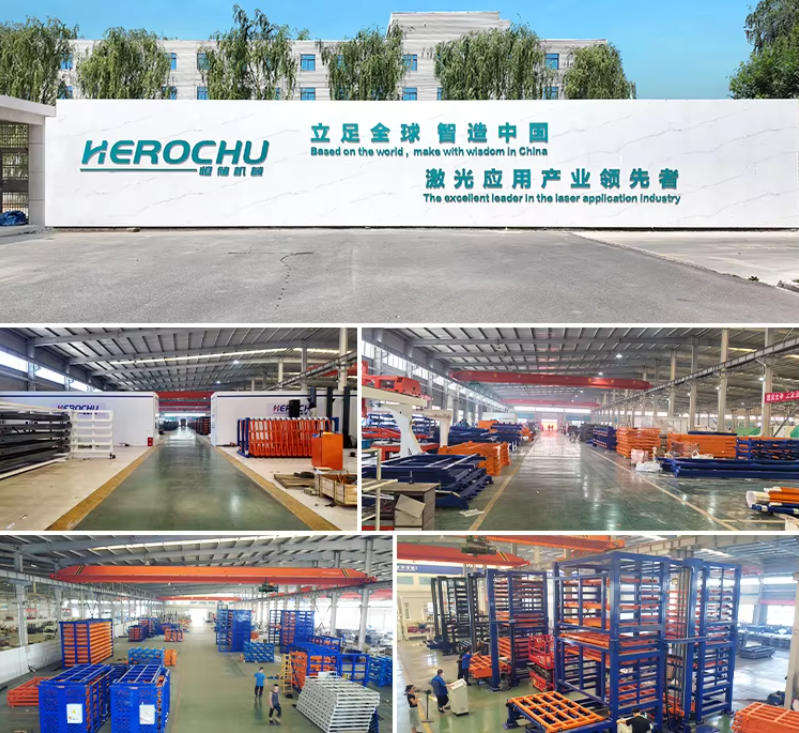

Every Herochu sheet metal storage rack carries ISO 9001 certification for quality management systems and CE marking for European safety standards. The company operates a 16,000-square-meter self-owned factory with in-house powder coating lines that apply rust-proof and corrosion-resistant finishes. Welding processes follow certified procedures with regular non-destructive testing. Factory-direct supply eliminates intermediary markups while ensuring fast delivery and responsive after-sales support.

Conclusion for Practical Implementation

Implementing a sheet metal storage rack design requires evaluating current material inventory, available floor space, retrieval frequency, and handling equipment. Herochu provides site assessments and layout recommendations to maximize the return on investment. Workshops that adopt drawer-type sheet metal storage consistently report cleaner workspaces, faster material retrieval, reduced damage claims, and improved overall productivity. The transition from stacked or leaned storage to a vertical drawer system represents one of the highest-impact improvements a metal fabrication shop can make.
