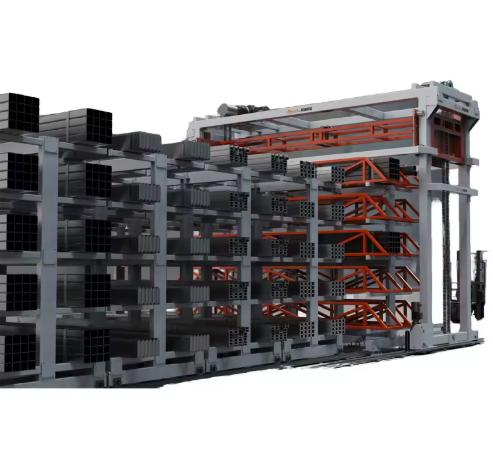

Automatic Storage Solutions for Metal Pipe and Profiles: The High-Capacity Standard

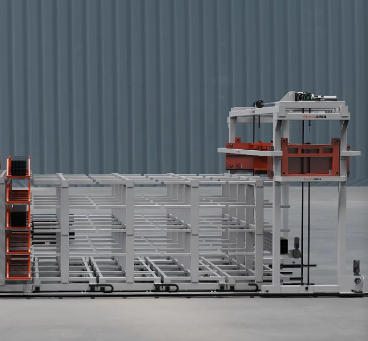

Automatic Storage Solutions for Metal Pipe and Profiles: The High-Capacity Standard - Image 2

Heavy Duty Smart Warehouse for Profiles: Herochu 500-Tonne High-Density Storage

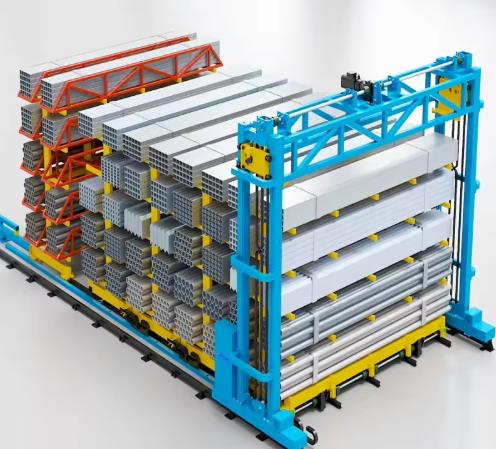

Automated Adjustable Steel Pipes Racks: Herochu Multi-Layer Configurable Storage System

Automatic Storage Solutions for Metal Pipe and Profiles: The High-Capacity Standard

In the demanding landscape of modern industrial warehousing, the management of long goods—specifically metal pipes, tubes, and structural profiles—remains a critical bottleneck. Traditional cantilever racking systems, while ubiquitous, suffer from inherent inefficiencies: low density, difficult access to rear items, and the constant risk of damage during forklift operations. Enter the Herochu Automatic Storage Solutions for Metal Pipe, a system engineered not merely to store materials but to optimize the entire logistics chain of heavy industry.

Category Automated Pipe Storage Systems Tag Automatic Storage Solutions for Metal Pipe and Profiles: The High-Capacity Standard

Automatic Storage Solutions for Metal Pipe and Profiles: The High-Capacity Standard

The Density Imperative: Maximizing Cubic Space

The primary value proposition of the Herochu system is its aggressive reclamation of floor space. In industrial real estate, the “cube” is the most valuable asset. Traditional storage methods waste a significant percentage of this volume on access aisles and safety margins required for crane operations.

The Herochu system challenges this by utilizing a high-density vertical configuration. By employing a gantry-based retrieval system rather than external cranes, the warehouse structure itself becomes the storage medium. The system boasts a staggering capacity: a single installation can house up to 500 tonnes of mixed profiles within a footprint of approximately 200 square meters.

This density is achieved through a footprint-optimized design that assumes a standard bar length (e.g., 12 meters) and utilizes up to 13 storage levels. By eliminating the wide flue spaces found in standard pallet or cantilever racks, Herochu effectively doubles or triples the storage density per square meter. For facility managers facing the choice between expanding their building or optimizing current assets, this system offers a compelling alternative to construction.

Engineering the Gantry: Precision in Motion

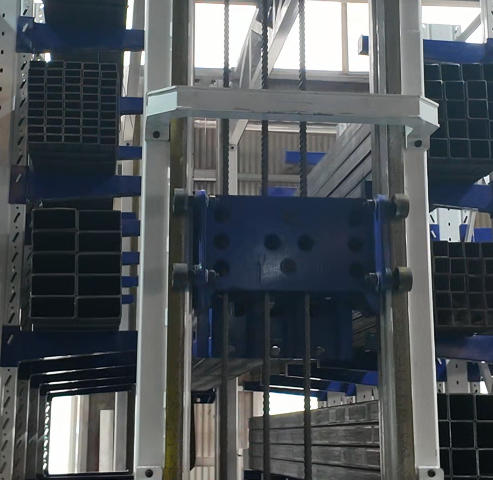

At the heart of this system lies the loading and unloading gantry robot. Unlike standard overhead cranes that may swing loads or require excessive safety zones, the Herochu gantry operates on precision linear guide rails. This design choice is critical for handling long, awkward loads like steel beams or aluminum extrusions.

The transmission mode utilizes a robust chain drive, selected for its durability and ability to handle high torque at low speeds. While the speeds—9 m/min vertical lifting and 12 m/min horizontal inlet/outlet—may appear moderate compared to high-speed parcel sorters, they are calculated specifically for heavy industrial loads. Moving 3 to 5 tonnes per layer requires stability over velocity. The moderate speed prevents load sway, ensuring that a bundle of pipes does not shift or slide during the pick-and-place cycle. This precision results in a consistent throughput of 15–20 picks per hour, a rate that far exceeds manual retrieval times when factoring in forklift travel and positioning.

Customizable Floor Plans

Flexibility is built into the structural DNA of the Herochu solution. The system is not a “one-size-fits-all” product but a configurable platform. The main structure is available in widths of 6015mm, 6020mm, and 6025mm, allowing integrators to fit the system into existing building envelopes or design new facilities around these efficient modules.

Furthermore, the load-bearing capabilities are substantial. With a capacity of 3 to 5 tonnes per layer, the system accommodates both single heavy items (like large diameter steel pipes) and bundled loads (like copper tubing or aluminum profiles). The number of floors is equally adaptable, ranging from 8 to 13 levels, allowing the system to scale vertically based on the facility’s clear height.

Conclusion

The Herochu Automatic Storage Solutions for Metal Pipe represents a shift from passive storage to active inventory management. By combining high-density vertical stacking with a precision gantry system, it solves the dual problems of space scarcity and handling difficulty. For industries dealing with high volumes of long goods, it offers a robust, durable, and highly efficient pathway to modernization.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
