Sheet Metal Magazine with Built-In Loading

Introduction: Redefining Material Flow with an Integrated Loading Magazine

In modern sheet metal fabrication, the interface between raw material storage and the cutting machine often becomes a bottleneck. Operators manually retrieve sheets, forklifts shuffle stacks, and remnants disappear into chaotic piles. Herochu solves this with an engineering breakthrough: the sheet metal magazine with built-in loading. Unlike traditional standalone storage racks that require separate loaders, Herochu’s design embeds the loading mechanism directly inside the material magazine. This integration eliminates transfer points, reduces floor space consumption, and accelerates cycle times from storage to cutting table.

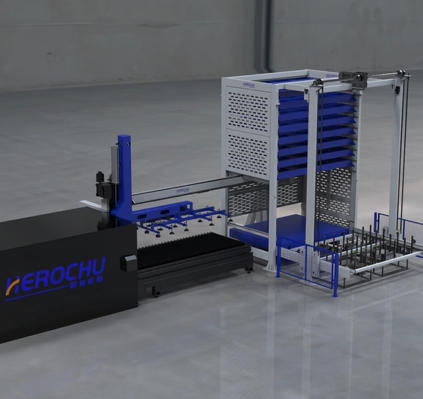

The HC-A6015 model represents the culmination of this philosophy. It functions not merely as a passive rack but as an active, intelligent buffer that holds up to thirteen shelves of metal sheets while continuously feeding the laser or punch press. Every sheet enters the machine with ±0.2 mm repeatability, untouched by human hands and free from surface scratches. For job shops and high-mix-low-volume production lines, this built-in loading magazine transforms logistics from a cost center into a competitive advantage.

Why Built-In Loading Outperforms Conventional Designs

Traditional automated storage systems use a separate gantry or forklift to retrieve a sheet from a storage tower, then transfer it to a standalone loading position. Each transfer adds seconds – sometimes minutes – to the cycle. More critically, each transfer introduces alignment errors and physical contact that can mar sensitive coated or brushed sheets. Herochu’s sheet metal magazine with built-in loading collapses these steps into one continuous motion.

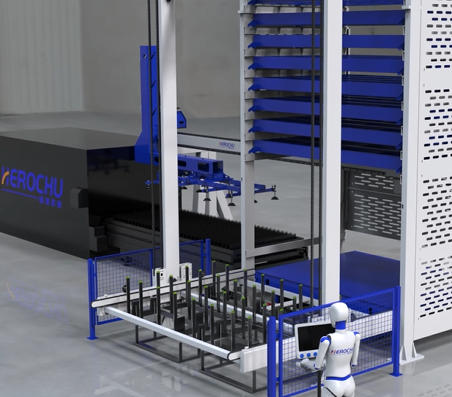

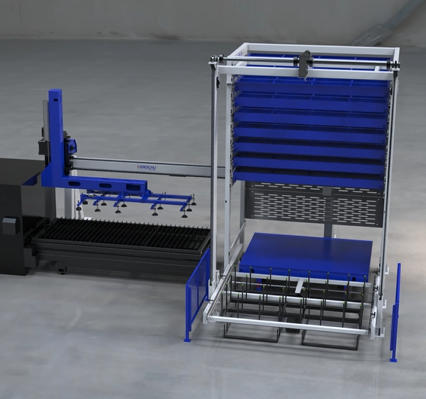

Inside the HC-A6015, a high-speed servo-driven telescopic fork travels vertically along linear guide rails, stopping precisely at the targeted shelf. The same fork extends horizontally, slides under the sheet stack, and engages vacuum-assisted suction cups that lift the top sheet without disturbing lower layers. The fork retracts and descends directly to the machine’s cutting table inlet – a total pathway with no intermediate pickup station. This direct path reduces total cycle time to under 25 seconds per sheet, even for 3‑ton stacks.

Furthermore, the built-in loading design minimizes moving parts. Conventional systems require separate conveyors, lift tables, and alignment rollers, each with its own maintenance schedule. Herochu’s integrated magazine uses a single chain-drive transmission for vertical motion and a telescopic fork for horizontal transfer. Fewer components mean lower mean time between failures and faster diagnostic routines accessible via remote VPN.

Technical Specifications That Deliver Performance

The HC-A6015 sheet metal magazine with built-in loading is available in multiple footprint options: 3015, 4015, 4020, 6015, 6020, and 6025 mm. This range accommodates sheet lengths from 3,000 mm up to 6,000 mm and widths from 1,500 mm to 2,500 mm. Number of storage floors is configurable between 8 and 13, allowing warehouses with height restrictions to optimize density or taller facilities to maximize capacity.

Each shelf supports a load of 3 tonnes or 5 tonnes, customer-selectable at order time. The maximum stack weight that the built-in loading mechanism can handle per cycle is 200 kg, though the total magazine can store up to 3,000 kg across its shelves. Vertical lifting speed reaches 9 m/min, while the horizontal inlet and outlet speed operates at 12 m/min. Power supply requirements are standard 380–480 V, three‑phase, 50/60 Hz, with clean dry air at 0.6–0.7 MPa for the vacuum system. The unit operates below 70 dB(A) – quieter than most hydraulic press brakes.

Space Efficiency and Payback Calculation

One of the most quantified benefits of Herochu’s sheet metal magazine with built-in loading is its volumetric density. The cassette-based shelf design allows storing ten packages of 2.5 tonnes each within just one meter of vertical height. Compared to floor stacking or cantilever racks, this configuration unlocks up to 64 % more storage capacity in the same footprint. For workshops paying premium urban industrial rents, this density directly reduces storage cost per ton.

The average payback period for installing an HC-A6015 across customer case studies falls around three years. Savings derive from three streams: eliminated forklift movements (fuel, maintenance, operator wages), reduced material damage (scratched sheets rejected from finished parts), and reclaimed floor space previously used for staging areas. Additionally, leftover sheets – which commonly become “lost” inventory – are automatically registered in the built-in magazine’s control software. Operators can retrieve remnants by simply querying the system, promoting reuse and lowering raw material purchases by an estimated 6‑8 % in documented installations.

Safety and Ergonomics Integration

Beyond productivity, the sheet metal magazine with built-in loading dramatically improves workshop safety. Forklift traffic around laser cutters is a leading cause of accidents in sheet metal fabricating shops. By positioning the HC-A6015 directly adjacent to the cutting machine and having it perform all loading cycles autonomously, pedestrian-vehicle interactions drop to near zero. The system includes Category‑4 safety relays that immediately halt motion if a light curtain is broken and 360° LED status lighting to alert nearby workers of its operational state.

Ergonomically, the built-in loading design spares operators from repetitively lifting 50 kg to 100 kg sheets, a common source of back injuries in manual loading scenarios. One operator can supervise three or four Herochu magazines simultaneously, intervening only to change coil remnants or replenish the occasional specialty sheet not stored in the main magazine.

Conclusion: A Foundational Component for Lights-Out Manufacturing

Herochu’s sheet metal magazine with built-in loading is not merely a storage accessory – it is the foundational logistics node for any serious automation roadmap. When combined with Herochu’s automatic storage tower and robotic bending cell, the HC-A6015 enables fully unattended “lights-out” production shifts. For fabricators seeking to move from reactive material handling to predictive, JIT flow, this integrated magazine delivers measurable ROI from month one.
