Heavy Duty Profile Bar Stock AS/RS Warehouse: Herochu’s High-Capacity Automated Storage for Industrial Bars

Most automated storage and retrieval systems (ASRS) are designed for palletized goods, totes, or cartons. They handle uniform loads on standardized platforms, moving along fixed grid patterns in climate-controlled distribution centers. But industrial operations — steel service centers, bar stock distributors, metal fabrication plants, and heavy machinery manufacturers — work with materials that refuse to fit that mold.

Bar stock is long, heavy, and varied. Round bars, square bars, hexagonal bars, and structural sections arrive in 6-meter to 12-meter lengths, weighing hundreds of kilograms per piece and several tons per bundle. They cannot be palletized without cutting. They cannot be stored on standard shelving. And they demand per-level load capacities that conventional ASRS simply cannot deliver.

A Heavy Duty Profile Bar Stock AS/RS Warehouse is built for this environment. It combines the automated storage and retrieval concept — gantry positioning, digital inventory, WMS integration — with structural engineering rated for multi-ton per-level loads and cantilever rack architecture designed for long linear materials.

Herochu engineers this category of system for industrial operations where material weight, length, and throughput volume exceed the limits of standard automated storage equipment.

System Architecture

The Herochu Heavy Duty Profile Bar Stock AS/RS Warehouse is built on four structural and mechanical subsystems:

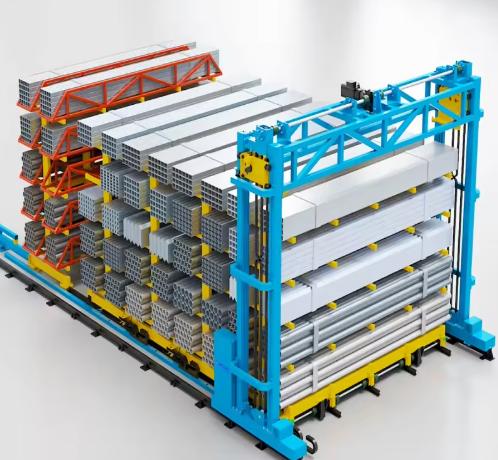

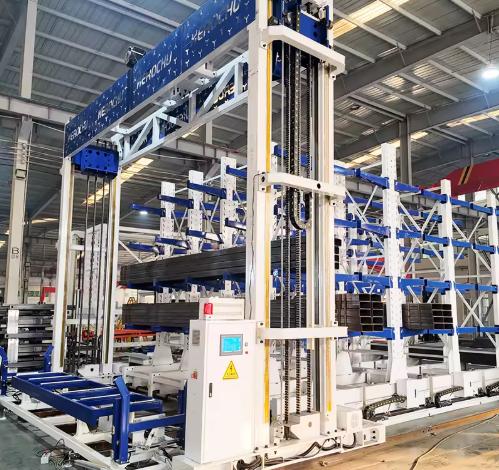

Heavy-Duty Gantry System

The gantry is the system’s workhorse. It spans the rack array and travels on floor-mounted linear guide rails at 5–30 m/min horizontally and 5–15 m/min vertically. A chain-drive transmission system handles the heavy cyclical loading of multi-ton bins, providing reliable torque delivery without the stretch and wear issues of belt drives under sustained heavy load.

Positioning repeatability holds at ±2 mm. This precision is essential for automated bin engagement — the extraction tool must locate and engage a bin loaded with 3,000–5,000 kg of bar stock without operator correction. The chain-drive and linear guide rail combination delivers this repeatability consistently in the dust, vibration, and temperature variation of metalworking environments.

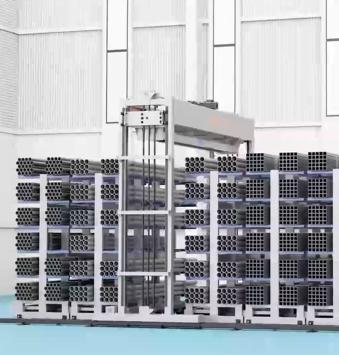

Cantilever Rack Towers

The storage towers use cantilever arm architecture to support bins at multiple vertical levels. This design is suited to long materials — the arms support the bin along its length without the obstruction of front columns, allowing bars and pipes to extend the full depth of the shelf.

Configurations scale by capacity and volume:

• HC-XG6053-6: 6 towers, 5 layers, 6,000 mm bar length, 3,000 kg/level
• HC-XG8055-8: 8 towers, 5 layers, 8,000 mm bar length, 5,000 kg/level
• HC-XG8085-10: 10 towers, 8 layers, 8,000 mm bar length, 5,000 kg/level

All layer counts and tower counts are customizable. The main load-bearing frame is fabricated from Q235B high-strength steel — a structural grade that provides the yield strength and weld integrity required for sustained multi-ton loading across 8+ vertical layers. Every system undergoes pre-shipment load testing at full rated capacity before delivery.

Material Bins

Bins measure 600 × 500 mm per grid cell and are engineered for the weight and geometry of industrial bar stock:

• Round bars in carbon and alloy steel, up to 12 meters in length
• Square and hexagonal bars in various grades
• Bundled bars in strapped packages
• Loose individual bars and short cutoffs
• Structural sections — angles, channels, flats

A single Herochu system accommodates multiple material types in adjacent bin positions, eliminating the need for segregated storage zones by grade or dimension.

Guide Rails and Control Infrastructure

Floor-mounted guide rails define the gantry’s horizontal travel path with the precision required for ±2 mm repeatability. The PLC touchscreen controller serves as the operational hub — managing cycle execution, bin position tracking, real-time stock display, diagnostic monitoring, and communication with external WMS, ERP, and MES systems.

Full Technical Parameters

Supplementary performance data:

The Case for 5,000 kg per Level

Per-level load capacity is the defining specification of a heavy-duty ASRS. Standard automated storage systems typically handle 500–1,500 kg per level — adequate for palletized goods or tote bins, but insufficient for industrial bar stock.

A single 6-meter bundle of 50 mm round carbon steel bars weighs approximately 1,800–2,200 kg. A bundle of 80 mm bars can exceed 4,500 kg. At these weights, a 1,500 kg per-level ASRS is not just inadequate — it is a safety hazard. Overloading automated storage equipment leads to structural deflection, drive failure, and the risk of a multi-ton load dropping from an elevated position.

Herochu’s heavy-duty configurations address this directly. The HC-XG8055-8 and HC-XG8085-10 models deliver 5,000 kg per level — enough capacity for the heaviest bar stock bundles used in industrial fabrication. The structural frame, chain drive, and lifting mechanism are all engineered to this rating, and every system is load-tested at full capacity before it leaves the factory.

Warehouse Space Savings and Vertical Density

Industrial bar stock storage is notoriously space-inefficient in conventional layouts. Static cantilever racking requires wide aisles for forklift access — 3.5 to 4.5 meters per aisle — and uses only the horizontal dimension. In a facility with 8-meter ceilings, traditional cantilever racking might utilize 30–40% of the available cubic volume, leaving the remaining 60–70% empty.

The Herochu Heavy Duty Profile Bar Stock AS/RS Warehouse reclaims that volume. By eliminating forklift aisles and stacking bins across 5 to 8+ vertical layers, the system achieves up to 80% reduction in floor space consumed for the same material volume.

For a steel service center storing 8-meter bar stock, this means:

• The same material volume stored in 20–30% of the floor area previously required
• Eliminated forklift aisle space converted to usable production or staging area
• Full utilization of building height rather than leaving vertical space empty
• Reduced material travel distance from storage to cutting or processing stations

In facilities where warehouse space is at a premium or expansion requires new construction, this density improvement often delivers ROI faster than any other operational change.

Automated Retrieval and Material Flow

Manual bar stock retrieval is one of the most time-consuming and labor-intensive tasks in an industrial warehouse. The process typically involves:

1. Operator identifies the material and location from a paper or spreadsheet record
2. Forklift travels to the rack aisle, maneuvers into position
3. Forklift extracts the bundle or bar, reverses, and transports to the delivery point
4. Record is manually updated, often with errors or delays

Each cycle consumes 5–15 minutes. Across a shift, a single forklift operator might complete 40–60 retrievals — and each cycle carries risk of material damage, rack collision, or operator injury from shifting loads.

The Herochu ASRS compresses this workflow. A retrieval command — entered on the touchscreen or received from the integrated WMS/ERP — triggers an autonomous cycle:

1. PLC identifies the bin position for the requested material
2. Gantry travels to the correct tower at 5–30 m/min
3. Lifting mechanism lowers to the designated layer at 5–15 m/min
4. Extraction tool engages and retrieves the bin
5. Gantry delivers the bin to the output station at 12 m/min
6. Inventory database updates automatically with the new stock level

The operator collects the material at the output station. No forklift, no aisle maneuvering, no manual record-keeping. For multi-shift operations, the system runs 24/7 — unmanned cycles keep material staged and available without dedicating labor to retrieval.

Digital Inventory and ERP/MES Integration

The PLC touchscreen interface displays real-time stock levels for every bin, tower, and material type. When bar stock is deposited or retrieved, the inventory database updates instantly — no manual cycle counts, no spreadsheet reconciliation, no stockout surprises.

WMS and ERP integration extends this capability across the operation:

• Production planning systems query the ASRS for current stock of specific bar grades and dimensions
• When stock falls below defined thresholds, the system triggers automatic reorder alerts
• Production orders can trigger batch retrieval — the gantry stages all materials for a job at the output station before the shift begins
• Complete cycle logging provides an audit trail for inventory reconciliation and material traceability

This transforms the storage area from a passive container into an active data source for production planning and supply chain management — the core of Industry 4.0 warehouse intelligence.

Safety and Structural Reliability

Heavy-duty storage at height demands engineered safety systems. The Herochu ASRS integrates multiple protection layers:

• Intelligent laser sensors detect obstructions in the gantry path and halt movement before contact occurs
• Real-time load monitoring verifies bin weight against rated capacity before lifting; the system aborts the cycle if overload is detected
• Mechanical fail-safes on the chain drive prevent uncontrolled vertical descent in the event of a drive malfunction
• Pre-shipment load testing validates structural integrity at full rated capacity before the system leaves the factory

The Q235B high-strength steel frame handles the cyclical loading of repeated storage and retrieval cycles across years of continuous operation. The structural design distributes weight through the tower columns into reinforced floor foundations, preventing deflection under maximum load.

Applications and Industry Fit

The Herochu Heavy Duty Profile Bar Stock AS/RS Warehouse serves operations across the industrial supply chain:

• Steel service centers — distributing round, square, and hexagonal bar stock to downstream fabricators
• Metal fabrication plants — managing raw material inventory for cutting, machining, and welding
• Bar stock distributors — handling high-throughput storage and retrieval for multiple customer orders
• Heavy machinery manufacturers — maintaining just-in-time material supply to production lines
• Construction material suppliers — stockpiling structural sections and rebar bundles for project fulfillment
• Automotive and aerospace suppliers — storing alloy bars and specialty profiles with full traceability

Customization and Factory-Direct Supply

Herochu supplies the system under OEM and ODM arrangements, direct from the factory. Each installation is engineered to the customer’s specifications:

• Rack tower count and layer count matched to facility dimensions and storage volume
• Per-level capacity selected from 3,000 kg to 5,000 kg based on the heaviest material handled
• Gantry span configured for 6,000 mm, 8,000 mm, or up to 12,000 mm material lengths
• WMS/ERP/MES integration configured to the customer’s software environment
• Modular architecture supports future expansion — additional towers and layers added as throughput demands grow

This project-based procurement model ensures the system is purpose-built for its operating environment. The customer receives a storage solution engineered to their material specifications, facility constraints, and production workflow — not a catalog product adapted to fit.

Conclusion

The Herochu Heavy Duty Profile Bar Stock AS/RS Warehouse brings together the load capacity, vertical density, and automation precision required for industrial bar stock storage at scale. With 5,000 kg per-level capacity, ±2 mm positioning repeatability, up to 80% floor space savings, and integrated digital inventory management with WMS/ERP connectivity, it is engineered for operations where standard ASRS cannot meet the weight, length, or throughput requirements. For any facility storing heavy bar stock, pipes, or structural sections at volume, this system delivers measurable improvements in space utilization, labor efficiency, and inventory accuracy — the foundations of a modern, data-driven industrial warehouse.
