Automated Heavy Duty Cantilever Warehouse for Steel Profiles

Structural steel profiles impose storage demands that lighter materials do not. Wide-flange beams, channels, and angle iron arrive in heavy bundles that must be supported along their entire length to prevent sagging and deformation. Cantilever racking has long been the default solution for these materials, but conventional cantilever systems require forklift access to each rack face, consume substantial aisle space, and rely entirely on operator skill for safe load placement.

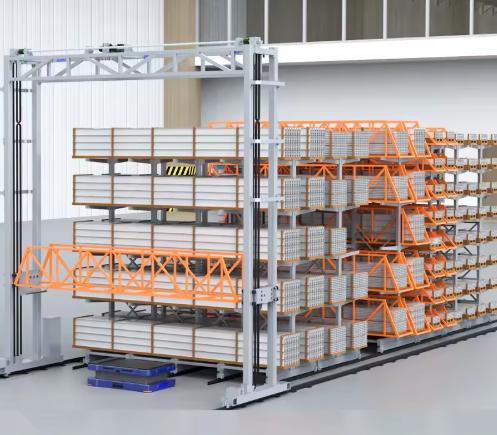

Herochu’s Automated Heavy Duty Cantilever Warehouse reimagines this storage category by integrating the proven cantilever support architecture with automated gantry retrieval. The structural frame is fabricated from high-strength steel sections engineered for continuous industrial operation, with per-level load capacities reaching 5,000 kg and total system capacity approaching 500 tonnes. Cantilever arm spacing and extension are configured during project engineering to match the specific beam depths, channel sizes, and bundle configurations that the facility handles.

Gantry Retrieval Without Aisle Constraints

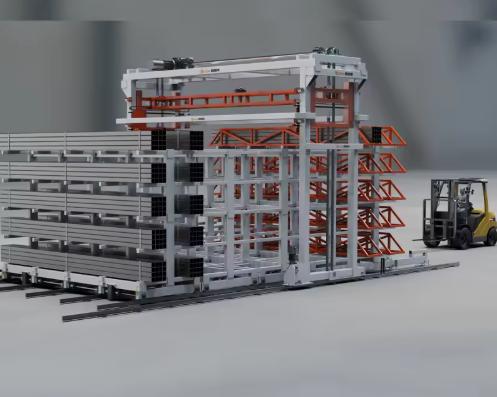

The defining operational difference between the Herochu automated cantilever warehouse and its manual counterparts is the elimination of access aisles. In a conventional cantilever installation, every rack face requires a clear aisle wide enough for forklift maneuvering — typically 3.5 to 4 meters minimum. The Herochu system replaces forklift access with a precision gantry that travels on floor-mounted linear guide rails spanning the full storage width.

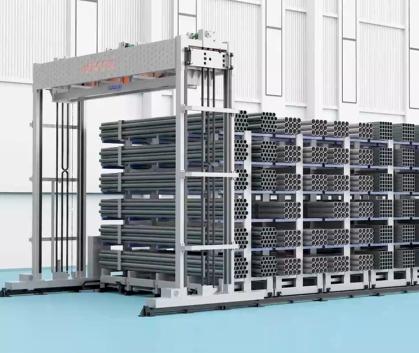

The gantry carriage moves horizontally at variable speeds of 5 to 30 meters per minute, with a vertical mast assembly descending between rack rows to the target storage level. Positioning repeatability of ±2 mm ensures precise engagement with material frames on every cycle. Because the gantry accesses compartments directly without requiring aisle clearance, the storage matrix achieves a density that conventional cantilever layouts cannot match.

Material Frames for Universal Profile Handling

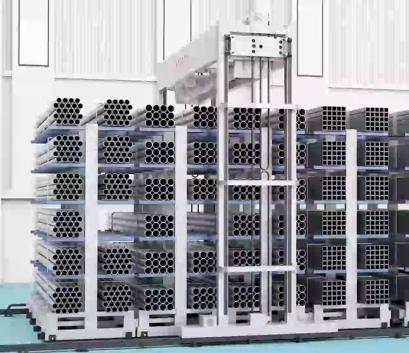

The interface between gantry and stored material is the material frame — a configurable carrier designed to match the geometry of specific profile families. Flat-bottom frames accommodate bundled tube and pipe. V-cradle frames secure single round bars and prevent rolling. Compartmented frames organize mixed small-diameter stock. For structural beams, the frame configuration supports the web or flange in a stable orientation that prevents tipping during transport.

The frame-based approach provides a consistent pick-and-place interface regardless of material shape or bundle configuration. The gantry lifting forks engage the frame, not the material directly, eliminating the surface damage that can occur when automated equipment contacts bare steel. Frames are removable and interchangeable, allowing the same storage compartment to accommodate different profile families as inventory requirements evolve.

Digital Inventory Management with ERP Integration

Every storage position within the Herochu cantilever warehouse receives a unique coordinate in the control system database. The PLC and touchscreen interface provide operators with real-time visibility into stock levels, material locations, and retrieval histories. This visibility extends to enterprise systems through seamless ERP and MES integration — production planning can query inventory availability and trigger automated material issuance based on work order requirements.

Laser distance sensors at known rack positions provide periodic absolute position verification, correcting for cumulative encoder drift and ensuring that inventory location data remains accurate over extended operational periods. The closed-loop feedback between physical positioning and digital tracking eliminates the inventory discrepancies that plague manual storage systems.

Technical Specifications and Model Range

The Herochu automated cantilever warehouse is available in configurations accommodating profile lengths from 6,000 to 12,000 mm. Standard models support per-level loads of 3,000 to 5,000 kg, with customized engineering available for heavier load cases. Gantry travel speeds of 5 to 30 meters per minute and lifting speeds of 5 to 15 meters per minute balance throughput requirements against load stability. Repeatability of ±2 mm across all axes ensures reliable automated operation without manual intervention.
