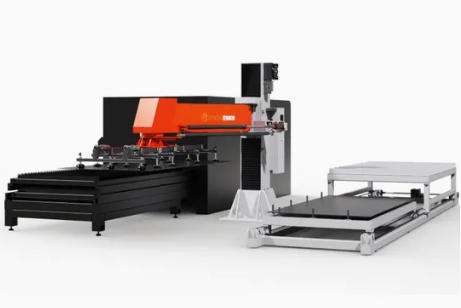

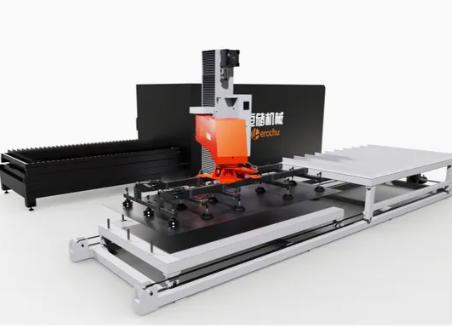

Servo swing arm manipulator

The Unseen Craftsman: Elevating Your Workshop with the Herochu Servo Swing Arm Manipulator

In the rhythmic pulse of a modern fabrication workshop, between the hum of the laser cutter and the decisive thud of the punch press, there exists a silent, persistent drain on productivity. It’s not the machines themselves, but the demanding, physically punishing ballet of feeding them. Skilled operators, whose expertise should be focused on precision and quality, are instead locked in a cycle of lifting, aligning, and maneuvering heavy, cumbersome sheets of metal. This is where potential is lost—to fatigue, to the risk of injury, and to the inherent inconsistency of human endurance.

The Herochu Servo Swing Arm Manipulator was engineered to shatter this paradigm. This is not merely a piece of machinery; it is an intelligent, automated collaborator designed to liberate your workforce from the grind of manual material handling. With a starting investment of $6,999, it represents the new frontier of accessible, customizable automation, transforming high-skill operators into process conductors and unlocking the full, throttled capacity of your primary equipment. It’s the strategic pivot from a labor-intensive operation to a seamlessly integrated, high-output production cell.

The Core Philosophy: Where Precision Engineering Meets Practical Application

At its essence, the Herochu Manipulator is a study in applied force and intelligent motion. Every component has been selected and integrated not just for individual performance, but for how it contributes to a fluid, reliable, and utterly predictable workflow. The CE, UE, and ISO 9001 certifications are not just stickers on a crate; they are a testament to a design and manufacturing philosophy built on global standards of safety, quality, and reliability.

The Power of Synchronized Motion: The Servo Heart
What separates this system from simpler mechanical arms is its core drive: a high-torque servo synchronous lifting mechanism. This is the key to its graceful, almost human-like dexterity. Unlike jerky pneumatic cylinders or powerful but imprecise hydraulic systems, servo control offers programmable, silken-smooth motion. The lift is perfectly vertical, eliminating the dangerous sway that can misalign a half-ton sheet of stainless steel. The servo arm positioning transmission ensures the swing is a controlled, deliberate arc, not a simple mechanical flop. This precision is what allows the manipulator to place a 1000KG sheet with the same gentle accuracy as a human hand would place a piece of paper, guaranteeing perfect alignment with your machine bed every single time.

The Intelligent Grip: Adaptable, Reliable, and Strong
The point of contact—where machine meets material—is critical. Herochu employs multiple sets of heavy-duty, oil-resistant suction cups, each governed by its own independent open/close valve. This modular end-effector is the source of the system’s remarkable versatility. It can be configured to securely handle a delicate 1mm thick aluminum panel for an electrical cabinet door without causing the slightest deformation, and then, with a quick program change, confidently lift a 20mm thick, 1000KG slab of armor plate. The oil-resistant compound is a crucial detail for real-world environments, ensuring the suction seals remain reliable and durable despite exposure to cutting fluids, lubricants, and shop-floor grime.

The Unwavering Guardian: Safety and Control Systems
The “brain” of the operation is an original Omron CNC control system. This is industrial-grade intelligence, far beyond simple relay logic. It allows you to program complex sequences, store countless recipes for different sheet sizes and weights, and achieve deep, handshake-level integration with your press, laser, or punch. This powerful control is matched by an equally robust safety ethos. The integrated power failure safety protection system and emergency stop circuits are designed for absolute fail-safe operation. Should a power loss or emergency stop occur, the system immediately engages automatic braking, locking the arm and its payload securely in place to prevent any chance of a catastrophic drop, thereby creating an ironclad safety perimeter for your personnel.

The Transformation on Your Shop Floor: From Specification to Tangible Result

The technical data tells one story, but the daily reality in your workshop after installation tells a far more compelling one.

1. The Liberation of Human Capital
The most profound impact is on your team. The repetitive strain of handling 300KG to 1000KG sheets is more than just inefficient; it’s a primary source of costly ergonomic injuries and chronic fatigue. The manipulator erases this risk. Your most experienced operators are no longer defined by their physical strength but by their cognitive skills. They can oversee multiple processes, perform meticulous quality checks, and manage the overall workflow. This shift dramatically improves job satisfaction, reduces turnover and absenteeism, and allows you to retain and leverage your most valuable institutional knowledge.

2. The Rhythm of Uninterrupted Production
Every manufacturing manager knows that machine uptime is the true engine of profit. A human operator, no matter how skilled, is variable. They need breaks, their pace slows over a long shift, and their focus can waver. The Herochu manipulator is relentless in its consistency. It establishes and maintains an optimal, rhythmic cycle time, feeding your primary equipment without pause. This elimination of human variability means your laser cutter or stamping press can operate at its maximum theoretical output for hours on end. The manipulator pays for itself not by working faster than a human in a single burst, but by working at a perfect, unwavering pace forever.

3. Mastering the High-Mix, Low-Volume Environment
A common misconception is that automation is only for mass production. The Herochu Swing Arm is specifically designed for the agile, custom-focused shops that dominate today’s manufacturing landscape. Its modular assembly structure is a key feature here. It is inherently flexible and designed for relatively straightforward assembly and disassembly. Changing over from processing small 1250x1250mm sheets to large 3000x1500mm formats is not a major logistical event. It typically involves a quick reconfiguration of the suction cup array and selecting a new program from the intuitive Omron interface. This makes it an ideal solution for kitchenware manufacturers running batches of different sink designs, or electrical cabinet shops producing unique enclosures for various clients.

4. The Guardian of Flawless Finish
In industries where appearance is critical, any scratch, dent, or marring on a sheet renders it scrap. Manual handling, with its inevitable dragging, scraping, and awkward angles, is a primary source of this costly damage. The vacuum gripper system of the Herochu manipulator cradles the material. It lifts it cleanly from the stack and transports it without any contact with surrounding structures. This meticulous handling preserves the pristine surface of pre-polished sheets, brushed metals, and coated materials, directly boosting your yield and saving thousands in material waste and rework.

Built for Your Industry: A Versatile Automation Partner

The Herochu Servo Swing Arm Manipulator is a platform, not a niche tool. Its design addresses universal material handling challenges across a spectrum of industries.

• Kitchenware and Appliance Manufacturing: Perfect for feeding stainless steel and composite sheets into stamping presses for sinks, oven housings, and refrigerator liners. Its gentle handling ensures flawless finishes on visible surfaces.

• Electrical Cabinet and Enclosure Production: Ideal for the high-variety nature of this industry, effortlessly managing the different panel sizes and materials used in custom cabinet fabrication.

• General Metal Sheet Fabrication: From architectural cladding and signage to heavy machinery components, this manipulator serves as the perfect first touchpoint, reliably feeding sheets into cutting, bending, and forming processes with unwavering accuracy.

Technical Configuration: Selecting Your Capacity

Our range is built around payload capacity to suit diverse operational needs, all while maintaining a consistent maximum sheet format for wide application.

The modular assembly structure ensures that this is not a permanent, immovable fixture. It offers the flexibility to adapt your floor plan as needed, effectively reducing space waste and providing a future-proof asset that can evolve with your business.

The Herochu Proposition: The Future is Accessible

The Herochu Servo Swing Arm Manipulator demystifies and democratizes industrial automation. It is a tangible solution that delivers a rapid return on investment through increased output, enhanced quality, and a safer, more empowered workforce. This is about building a smarter, more resilient manufacturing operation where technology and human skill amplify each other.

Stop letting the physical limitations of manual feeding dictate your company’s potential. The cycle of fatigue, inconsistency, and risk is a problem of the past.

Reach out to our engineering team today for a confidential, no-obligation consultation. Let’s explore how a customizable solution, starting at $6,999, can be tailored to your specific workshop, unleashing a new era of productivity and growth for your business.
