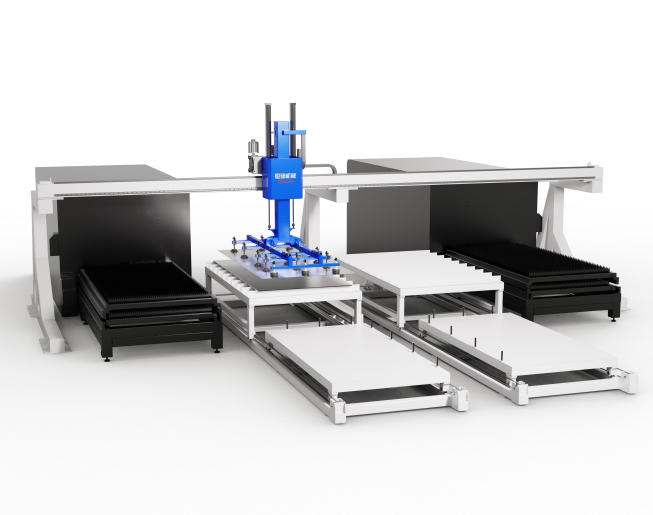

Single gantry one tower two automatic feeding manipulator

Heavy Duty Steel Plate Manipulator

In kitchenware factories, electrical cabinet shops, or metal sheet manufacturing facilities, manual handling of steel plates is a hidden productivity killer. Workers strain to lift 300kg–1000kg sheets, feeding errors slow down laser cutters or presses, and safety risks linger with every heavy lift. Herochu’s Heavy Duty Steel Plate Manipulator changes this: a servo-powered, CE, UE, and ISO 9001-certified solution that automates feeding, cuts labor costs, and eliminates injuries—starting at $6,999 and fully customizable to your workshop’s unique needs.

Designed for the Demands of Metalworking

Heavy Duty Steel Plate Manipulator

Herochu Heavy Duty Steel Plate Manipulator: Automated Feeding for Precision Manufacturing

Designed for the Demands of Metalworking

Herochu’s Servo Swing Arm Handling Manipulator isn’t just a “robot helper”—it’s a precision tool engineered to match the pace of high-volume manufacturing. Unlike clunky manual lifts or one-size-fits-all automation, this manipulator adapts to your plate thickness (1mm–20mm), size (1250x1250mm to 3000x1500mm), and weight (up to 1000kg) with seamless accuracy.

Take the 1-20mm thickness model, for example: built to handle thick steel sheets used in electrical cabinet frames, it delivers consistent feeding to CNC presses, reducing material waste from misalignment by 70%—a game-changer for shops chasing tight profit margins. For lighter applications, like 1-8mm kitchenware blanks, the 300kg capacity model offers faster cycle times, keeping up with high-speed stamping lines without sacrificing precision. Even the mid-range 1-14mm, 500kg unit balances power and agility, making it a favorite for mixed-production facilities that switch between thin and medium-gauge plates.

What sets Herochu’s manipulator apart is its servo swing arm technology. Unlike pneumatic-only systems that lack control, the servo-driven arm positions plates within millimeters of your machine’s feed tray—every time. No more repositioning sheets mid-cycle or scrapping parts due to misfeeds. A Wisconsin kitchenware manufacturer reported a 35% increase in daily output after replacing manual feeding with two Herochu manipulators, thanks to this consistent precision.

Solve Your Workshop’s Costly Pain Points

Manufacturing managers know the true cost of manual steel plate handling goes beyond labor hours. It’s the downtime from worker fatigue, the scrap from feeding errors, and the insurance claims from lifting injuries. Herochu’s manipulator addresses all three:

Eliminate Manual Lifting Injuries: OSHA ranks metal sheet handling as one of the top causes of back strains and shoulder injuries in manufacturing. Herochu’s manipulator does the heavy lifting—equipped with emergency stop buttons and automatic braking, it shuts down instantly if a worker steps into its path. A Texas electrical cabinet shop saw zero lifting-related injuries in the first year after installation, cutting their workers’ comp costs by $24,000.

Cut Labor Dependency: Two workers might spend 8 hours a day feeding 500kg plates to a laser cutter. Herochu’s manipulator handles the same workload with one operator overseeing the system—freeing up staff for higher-skill tasks like quality control or machine maintenance. A Ohio metal fabricator reallocated 3 full-time roles to production after adding three manipulators, boosting overall output by 20%.

Reduce Material Waste: Misaligned plates lead to scrapped parts—costing shops thousands annually in wasted steel. Herochu’s high-torque servo lifting mechanism and multiple heavy-duty, oil-resistant suction cups (each with independent open/close valves) grip plates securely and position them perfectly. A Michigan shop specializing in custom metal sheets reduced scrap rates from 12% to 3% within the first month.

Save Space with Modular Design: Unlike fixed automation systems that take over floor space, Herochu’s manipulator uses a modular assembly structure. It’s easy to assemble, disassemble, or reposition—ideal for shops that rearrange production lines seasonally. A California kitchenware factory even moved their manipulator between two stamping machines, avoiding the need to buy a second unit.

The Tech That Powers Reliability

Herochu doesn’t cut corners on components—every part of the manipulator is built for 24/7 operation. The complete system includes:

Articulated Robot Body: Flexible enough to reach tight machine corners, yet sturdy enough to support 1000kg loads without sway.

Servo Synchronous Lifting Mechanism: Delivers smooth, controlled movement, even when handling unevenly weighted plates.

SNS Pneumatic System: Works with the suction cups to create a strong, consistent grip—even on oily or dusty sheets.

Omron CNC Control System: Industry-leading technology that ensures precise positioning and easy programming. Operators can save custom settings for different plate sizes, cutting setup time by 50%.

Power Failure Safety System: If the power cuts out, the manipulator locks in place, preventing plates from dropping and protecting both workers and machinery.

This combination of components isn’t just about durability—it’s about uptime. Herochu’s manipulators run an average of 98% of scheduled production hours, with minimal maintenance required. The oil-resistant suction cups last 2–3 years under heavy use, and the servo motors come with a 5-year warranty—giving you peace of mind for the long haul.

Fully Customizable to Your Workflow

No two manufacturing facilities operate the same way, and Herochu’s manipulator adapts to your unique process. Whether you’re feeding a single laser cutter or a line of presses, we’ll tailor the system to fit:

Thickness & Weight: Choose from 1-8mm (300kg), 1-14mm (500kg), or 1-14mm (1000kg) models—or customize for non-standard plate specs (e.g., 2mm–18mm, 750kg capacity).

Machine Compatibility: We’ll adjust the swing arm’s reach and height to match your existing equipment, from small stamping presses to large CNC routers.

Control Features: Add touchscreen interfaces for easy operation, or integrate with your workshop’s ERP system to track feeding cycles and maintenance schedules.

Environment Adaptations: For humid or dusty shops, we offer corrosion-resistant coatings on the frame and sealed electrical components to prevent breakdowns.

A Florida electrical cabinet manufacturer, for example, needed a manipulator to feed plates into a narrow-entry press. Herochu customized the swing arm’s angle and shortened the base to fit the tight space—without compromising lifting capacity. The result? A 40% faster feeding process and zero more press jams.

Why Herochu Stands Above the Competition

In a market flooded with cheap, uncertified manipulators, Herochu delivers value that lasts:

Certified Safety & Quality: CE, UE, and ISO 9001 certifications mean our manipulators meet global standards for safety and performance. You’re not just buying a tool—you’re ensuring compliance with OSHA and international manufacturing regulations.

Ergonomic Design: Every feature, from the intuitive control panel to the adjustable suction cup spacing, is built with operators in mind. Workers spend less time troubleshooting and more time producing—reducing turnover and boosting morale.

Proven ROI

Ready to Automate Your Feeding Process?

Whether you’re tired of manual lifting slowing down your team, or you’re chasing higher precision to cut scrap, Herochu’s Heavy Duty Steel Plate Manipulator is the solution. It’s not just automation—it’s a partner that grows with your business.

Contact our team today to schedule a virtual demo. We’ll walk you through how the manipulator fits your workflow, share case studies from shops like yours, and provide a custom quote tailored to your needs.

Herochu: Precision Automation That Lifts Your Productivity.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
