Horizontal Pipe Storage Rack

Optimized Tube and Conduit Organization for Fabrication Shops and Distribution Centers

Fabrication shops waste an estimated 15% of material handling labor searching for the right pipe diameter or retrieving stock from cramped floor piles. Horizontal pipe storage compounds this problem because long tubes require clear floor space for pulling and measuring. The solution is a dedicated horizontal pipe storage rack that keeps tubes accessible, organized, and protected from bending or surface damage. Herochu engineered its Horizontal Pipe Storage Rack to meet the specific demands of metal fabrication, electrical conduit distribution, and plumbing supply operations.

Horizontal Orientation for Rapid Material Selection

Vertical pipe storage racks save floor space but require overhead clearance and specialized lifting equipment to extract long tubes. Horizontal pipe storage racks keep material at working height, allowing operators to slide pipes directly onto roller conveyors, cutting tables, or delivery trucks. Herochu’s horizontal design positions pipes parallel to the floor, supported at multiple points along their length to prevent sagging or permanent bending.

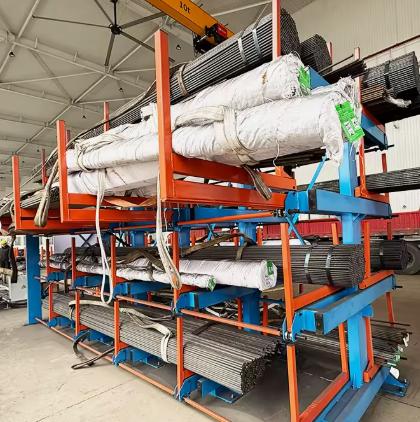

The horizontal pipe storage rack uses a stepped or tiered configuration, with each level set back from the level below. This tiered arrangement provides visual access to all stored pipes from the aisle, eliminating the need to pull front bundles to reach rear material. Operators simply identify the required diameter on the top tier, roll it forward, and extract it without disturbing adjacent pipes. For high-turnover facilities, this feature reduces pipe selection time from minutes to seconds.

Load Capacity and Span Engineering

Horizontal pipe storage imposes bending loads on the supporting structure that vertical storage does not. A 20-foot steel pipe weighing 200 pounds applies a distributed load across the rack arms, with maximum bending moment occurring at mid-span. Herochu calculates arm spacing based on pipe diameter and wall thickness, ensuring that no span exceeds the pipe’s own allowable bending stress.

The Horizontal Pipe Storage Rack frame uses rectangular tubing or I-beam sections sized to limit deflection to L/240 or less. For a 10-foot span between supports, maximum deflection stays below half an inch under full load. This stiffness prevents the rack from sagging over time, which would cause pipes to roll toward the low point and potentially fall.

Per-level load capacity ranges from 3,000 to 10,000 pounds depending on configuration. Facilities storing heavy-wall oilfield pipe or boiler tubing select the higher capacity option with reinforced beams and additional vertical columns. Electrical conduit and plumbing pipe warehouses typically require only 3,000 to 5,000 pounds per level, allowing lighter construction and lower cost.

Corrosion Protection and Surface Finish

Pipes often arrive at fabrication shops with protective oil coatings or mill scale. These materials transfer to rack surfaces over time, creating slippery conditions and attracting abrasive dust. Herochu’s powder coated finish on the horizontal pipe storage rack provides a smooth, cleanable surface that resists oil absorption. Operators wipe down arms periodically with degreaser to maintain slip resistance.

For facilities storing stainless steel or aluminum pipe, the powder coating prevents cross-contamination from carbon steel rack materials. Stainless steel picks up iron particles from uncoated carbon steel surfaces, leading to surface rust stains that require costly passivation to remove. Herochu’s complete encapsulation of all steel surfaces eliminates this contamination risk, preserving the cosmetic and corrosion-resistant properties of specialty alloys.

Adjustable Arm Spacing for Multiple Diameters

Pipe diameters vary from half-inch conduit to twelve-inch storm drainage pipe. A fixed-arm horizontal pipe storage rack cannot accommodate this range efficiently—small pipes fall through wide spacing, while large pipes sit too high when spacing is narrow. Herochu solves this with adjustable arm spacing on the horizontal pipe storage rack. Each arm mounts to the column using a pin-and-hole system with three-inch increments. Operators reconfigure spacing during off-hours to match incoming material diameters, achieving near-total vertical space utilization.

A typical reconfiguration takes one person less than an hour for a 100-foot rack. The process involves removing locking pins, sliding arms to the desired positions, and reinserting pins. No tools required. This flexibility proves valuable for job shops that process different pipe types week to week. Monday’s 4-inch conduit order uses narrow spacing. Tuesday’s 10-inch drainage pipe uses wide spacing. The rack adapts without capital expenditure or downtime.

Mechanical Assistance for Heavy Bundles

Manual handling of heavy pipe bundles strains workers and slows operations. Herochu offers a mechanical assistance option on the horizontal pipe storage rack that reduces extraction force by 80%. A hand crank drives a screw mechanism that tilts the entire arm assembly downward, using gravity to roll pipes toward the aisle. Operators then slide pipes onto roller stands or forklift attachments without lifting.

The same mechanism works in reverse for loading. Operators place pipes on the tilted arms, then crank the assembly back to horizontal. The screw mechanism holds position without back-driving, so pipes stay secure even if the operator releases the crank mid-stroke. This feature eliminates the need for battery-powered lift assists or overhead cranes in facilities where those options are impractical.

Safety Features and Damage Prevention

Horizontal pipe storage introduces specific hazards: pipes rolling off unsupported ends, bundles shifting during loading, and collapse from unbalanced loads. Herochu addresses each hazard through design. End stops on each arm prevent pipes from sliding out into the aisle. These stops stand 2 inches tall, sufficient to retain pipes up to 12 inches diameter without impeding loading from the side.

Load stops at the rear of each level prevent operators from pushing pipes completely through the rack. When a pipe contacts the rear stop, the operator feels resistance and stops advancing the load. This simple mechanical feedback prevents the common mistake of pushing a pipe off the back of the rack, which would require retrieving it from the opposite aisle.

Seismic restraints are available for facilities in high-hazard zones. These include bolt-down base plates with embedded anchors, diagonal wire rope ties connecting the rack to building structure, and vertical struts that resist rack tip-over during ground motion. Herochu’s engineering team provides site-specific seismic calculations based on local building codes and soil conditions.

Conclusion

Fabrication shops and distribution centers need pipe storage that prioritizes access speed and material protection. Herochu’s Horizontal Pipe Storage Rack delivers both through tiered design, adjustable arms, and optional mechanical assistance. Steel pipe, conduit, tubing, and round bar all find secure, organized homes within this system. The result is reduced handling labor, lower damage rates, and safer working conditions for warehouse teams.
