Compound servo swing arm handling manipulator

Automated Sheet Metal Loading: 4-Axis Robot for Laser Cutters

Compound servo swing arm handling manipulator

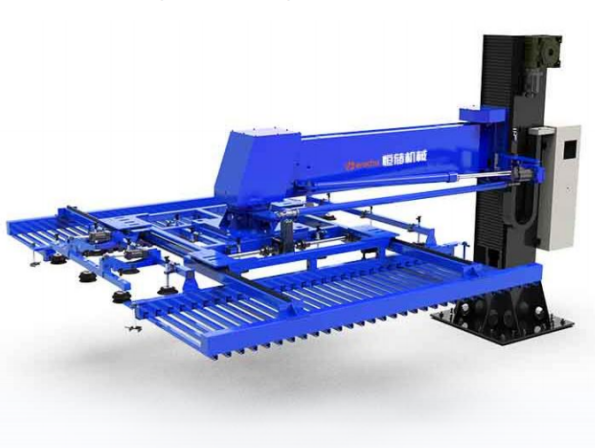

This advanced compound servo swing arm handling manipulator represents a fully integrated automation solution, engineered for efficient loading and unloading of sheet materials in industrial processing environments. The system comprises an articulated robot body, a high-torque servo synchronous lifting mechanism, and a servo-driven arm positioning transmission system. It is equipped with multiple heavy-duty, oil-resistant suction cups—each featuring independent open/close valves—and is supported by a robust SNS pneumatic system, a fail-safe power outage protection system, and a precision Omron CNC control and electrical system.

Compound servo swing arm handling manipulator

Compound Servo Swing Arm Handling Manipulator: High-Precision Automation for Sheet Material Processing

Suitable for a range of industries including kitchenware manufacturing, electrical cabinet production, and metal sheet processing, this manipulator enables fully automated sheet handling. Its modular assembly structure ensures flexibility, lightweight operation, and ease of assembly and disassembly, supporting quick adaptation to various production layouts.

Compound servo swing arm handling manipulator

Performance Specifications:

Model Variations: Available in three configurations to handle different material weight and thickness requirements.
Feeding Plate Thickness: Supports sheets from 1–8mm, 1–14mm, and 1–20mm.
Maximum Feeding Format: Accommodates sheet sizes up to 3000 × 1500 mm across all models.
Minimum Feeding Format: Compatible with sheets as small as 1250 × 1250 mm.
Maximum Load Capacity: Capable of handling sheet weights of 300 kg, 500 kg, and 1000 kg depending on the model selected.

Ideal for manufacturers seeking to enhance productivity and automate material transfer with precision and reliability, this servo swing arm manipulator offers a customizable and scalable solution for diverse industrial applications.
