Automatic one tower two loading manipulator

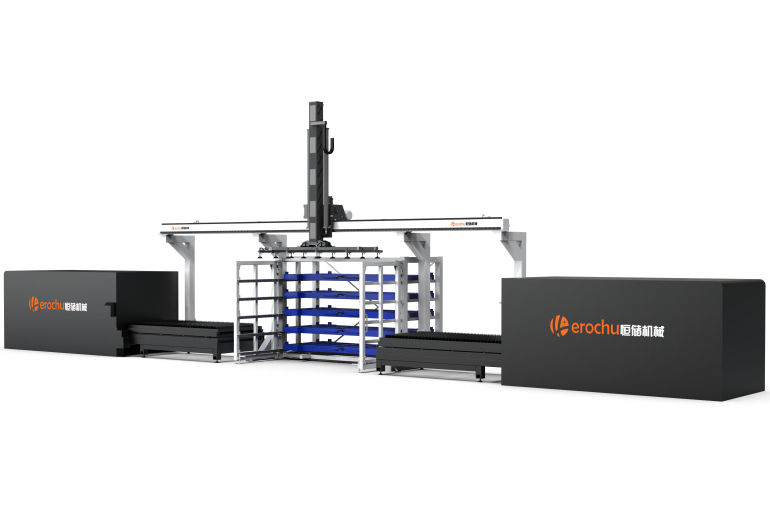

This automated one-to-two gantry loading manipulator is engineered for precision and reliability in demanding industrial environments. The system integrates a robust gantry beam structure with a high-torque servo-synchronous lifting mechanism and servo-driven translation positioning transmission. It is equipped with an automatic storage and discharge rack, multiple heavy-duty oil-resistant vacuum suction cups, an SNS pneumatic system, a comprehensive safety protection system, and a precision Omron CNC control and electrical system. Designed in accordance with European engineering standards, the machine offers exceptional structural stability, practical operation, and easy maintenance.

Automatic one tower two loading manipulator

Automatic one tow two loading manipulator

Automated 1-to-2 Loading Manipulator: High-Efficiency Gantry System for Industrial Material Handling

Technical Parameters:

Model: Automatic 1-to-2 Loading Manipulator
Compatible Specifications: 3015 / 4015 / 4020 mm
Number of Floors: 4
Load Capacity per Layer: 3 T
Maximum Handling Load: 100–500 KG
Air Consumption: 1.5 m³/min
Required Air Source Pressure: 0.6–0.7 MPa

Ideal for automating loading and unloading processes in manufacturing and sheet metal processing, this gantry manipulator enhances throughput, optimizes floor space, and ensures reliable performance in continuous production applications.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
