Automatic Loading and Warehouse System for Sheet Metal

Maximizing Floor Space and Efficiency: The Power of an Automatic Loading and Warehouse System for Sheet Metal

In today’s manufacturing landscape, every square foot of factory floor space is a valuable asset. Cluttered, disorganized storage areas for heavy steel plates not only waste this asset but also create workflow bottlenecks and safety issues. The solution is to look upward with an Automatic loading and warehouse system—a vertical storage and retrieval marvel that consolidates inventory and integrates directly with your production line. This deep dive explores why this system is indispensable for organized, lean manufacturing.

Engineering a Vertical Storage Powerhouse

The core of this system is its high-bay, three-dimensional storage warehouse. Available in configurations from 8 to 13 floors, this vertical design can store an enormous quantity of metal plates in a footprint a fraction of the size required for traditional racking. Each floor is engineered for strength, with a load capacity of 3 or 5 tons per layer, allowing for the safe storage of a full range of materials, from thin gauge sheets to thick, heavy plates.

Precision movement within this vertical structure is paramount. The system utilizes a linear guide rail + chain mechanism for the movement of the storage retrieval unit. This combination offers the perfect balance of high load-bearing capacity, exceptional rigidity for precise positioning, and smooth operation. The chain drive transmission provides the robust, reliable power needed to move multi-ton loads with consistency, day in and day out.

Beyond Storage: An Integrated Material Flow Manager

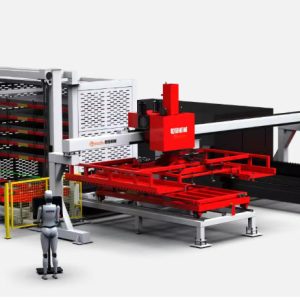

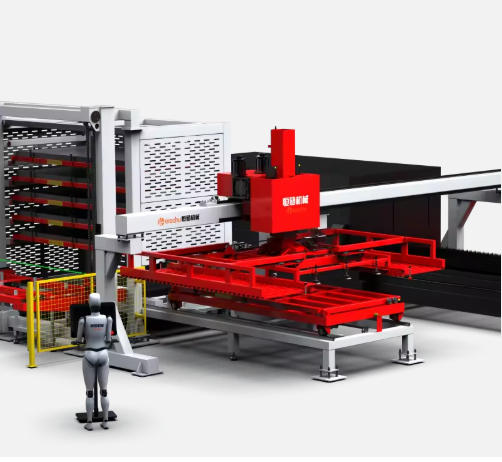

This system transcends being a simple warehouse. It is an active participant in your production flow. The stored plates are not just sitting idle; they are managed inventory, ready to be delivered on demand. The integrated Automatic Storage System Steel Metal Plate Gantry Loading Unloading Robot Manipulator acts as the bridge between storage and machine.

When a production order is initiated, the system’s PLC brain springs into action. It commands the retrieval unit to locate the specified plate on its designated floor. The plate is then smoothly extracted and transferred to the waiting gantry manipulator. Key performance metrics like the 9m/min vertical lifting speed and 12m/min inlet/outlet speed are optimized to minimize wait times, ensuring the laser cutter is fed as efficiently as possible.

Customization for Unmatched Versatility

A one-size-fits-all approach doesn’t work in metal fabrication. This system is built with necessary adaptability:

• Plate Support Options: The storage racks can be configured with different support structures (roller, flat bar, etc.) to optimally handle different plate types, minimizing the risk of sagging or surface scratches.

• Fleet Management Intelligence: Advanced software allows for inventory management by grade, thickness, and size. It can implement strategies like First-In-First-Out (FIFO) or prioritize material based on the production schedule.

• Scalable Integration: The system is designed as a module. It can start as a unit serving a single laser cutter and be expanded later to form a larger cell with multiple machines or even connect to other processes like punching or bending lines.

Operational Excellence and Control

Control is centralized and intuitive. The entire Automated sheet Metal loading system is overseen from a single touchscreen HMI (Human-Machine Interface). Here, warehouse contents are visualized, retrieval orders are queued, and system diagnostics are monitored. The ability to instantly switch between fully automatic and manual modes provides operators with complete control for every scenario, from high-volume production runs to prototyping single pieces.

The Compelling Business Case

Implementing this automated warehouse system delivers transformative benefits:

• Space Savings & Organization: Free up valuable floor space previously used for plate storage. This new space can be repurposed for additional value-added operations or to improve shop layout and material flow.

• Inventory Accuracy & Traceability: Digital tracking of every plate eliminates lost material and guesswork. You always know exactly what you have, where it is, and its consumption history.

• Reduced Material Damage: Automated handling is consistent and gentle. Plates are not dragged, dropped, or scratched by forklifts or cranes, preserving material quality and reducing waste.

• Optimized Labor Deployment: Skilled laborers are liberated from inventory management and material fetching duties, allowing them to focus on machine operation, quality control, and more complex tasks.

• Foundation for Industry 4.0: This system provides the structured, automated material flow essential for a connected smart factory. It generates data on material usage and machine readiness, enabling deeper production analytics and planning.

Conclusion

An Automatic Loading and Warehouse System is the strategic foundation for a modern, efficient sheet metal fabrication shop. It solves the critical challenges of space utilization, inventory control, and material handling inefficiency in one integrated package. By moving storage vertically and automating retrieval, it creates a predictable, fast, and safe flow of raw materials directly to the point of use. For businesses aiming to implement lean principles, reduce waste, and prepare for future growth, this automated warehouse is not just an option—it is an essential component of a competitive and streamlined manufacturing operation.
