Automatic Loading and Unloading System Gantry Loader: Maximizing Efficiency in Laser Cutting Workflows

Efficiency in metal fabrication hinges on minimizing idle time between cutting cycles. Enter the Automatic Loading and Unloading System Gantry Loader—a purpose-built automation solution that transforms traditional laser cutting machines into fully autonomous production cells. Designed specifically for continuous, high-volume environments, this system excels in handling large steel plates with speed, safety, and surgical precision.

Automatic Loading and Unloading System Gantry Loader: Maximizing Efficiency in Laser Cutting Workflows

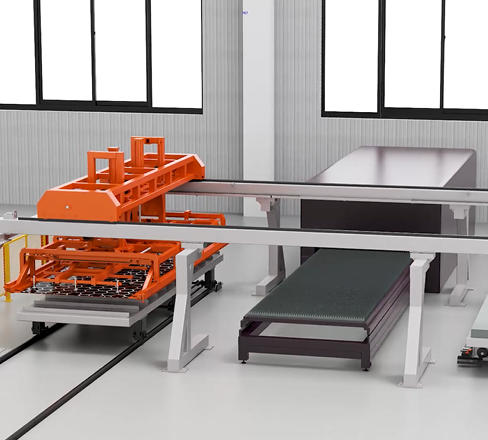

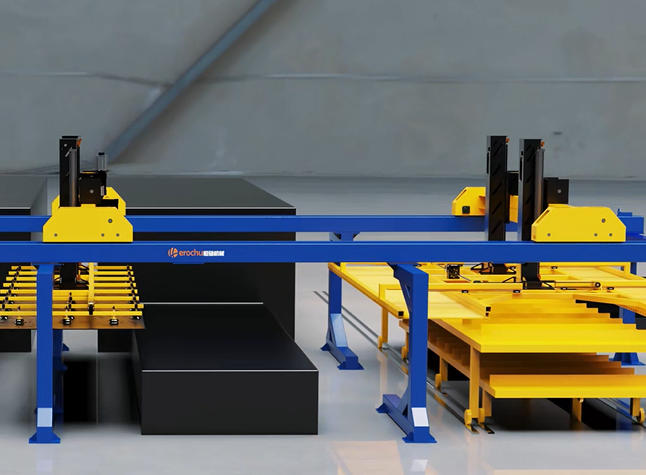

Mounted overhead on a rigid truss structure, the gantry loader spans the entire cutting area, supported by heavy-duty linear rails that ensure smooth, vibration-free motion. The loading mechanism typically employs a matrix of vacuum cups connected to a regulated pneumatic system (operating at 0.6–0.7 MPa), capable of lifting sheets up to 500 kg without deformation or slippage. Even with a maximum air consumption of 1.5 m³/min, the system remains energy-efficient thanks to intelligent airflow management.

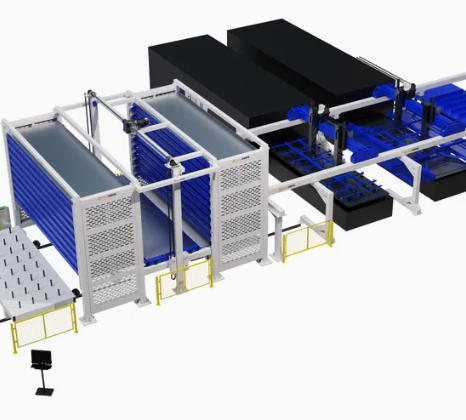

One of its key advantages lies in modularity. The Gantry Robot Auto Load System for Laser Cutter can be paired with a double-layer electric exchange cart that stores both raw material and finished parts. While one layer feeds the cutting zone, the other is simultaneously loaded or unloaded by forklift—enabling true 24/7 operation with minimal human intervention. This dual-stage approach drastically reduces non-cutting time, boosting overall equipment effectiveness (OEE) by up to 40%.

Setup is straightforward. Operators begin by preparing clean, flat metal sheets—free of oil, rust, or warping—and placing them on the input platform. Through the CNC interface, they select the job file, and the system takes over: the gantry arm descends, activates vacuum suction, lifts the sheet, transports it to the cutting bed, and aligns it using laser-guided positioning. During cutting, the operator monitors progress via HMI screens but rarely needs to intervene unless quality deviations are detected.

Post-processing is equally automated. Once cutting concludes, the gantry returns to collect finished parts, carefully placing them on the output conveyor or pallet. Scrap skeletons are either ejected separately or stacked for recycling. A built-in quality checkpoint may scan dimensions using optical sensors, flagging any out-of-tolerance pieces for review.

Industries such as structural steel fabrication, agricultural machinery, and HVAC benefit immensely from this technology. Not only does it reduce physical strain on workers, but it also mitigates risks associated with manual handling of sharp, heavy materials. Furthermore, consistent material placement improves cut accuracy, reduces kerf waste, and extends consumable life.

In essence, the Automatic Loading and Unloading System Gantry Loader is more than a convenience—it’s a strategic enabler of lean manufacturing principles. By automating the most repetitive and physically demanding aspects of laser cutting, it empowers shops to scale output without proportionally increasing labor or error rates.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
