Automatic Laser Vertical Plate Storage System

In the rapidly evolving landscape of industrial manufacturing, the “Automatic Laser Vertical Plate Storage System” has transitioned from a luxury to a fundamental necessity. For enterprises grappling with the challenges of heavy plate materials—often described as being “stored in disorder, accessed slowly, and taking up cramped space”—the Herochu solution offers a paradigm shift. This integrated system, combining automated storage, gantry robot auto loading/unloading, and material carts, is designed to streamline the entire production cycle from the moment raw material enters the facility until the finished product is ready for assembly.

The Architecture of Herochu Innovation

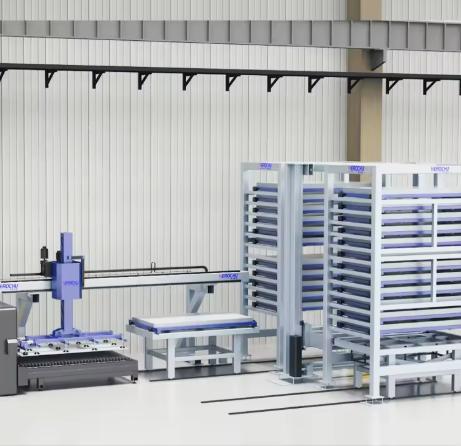

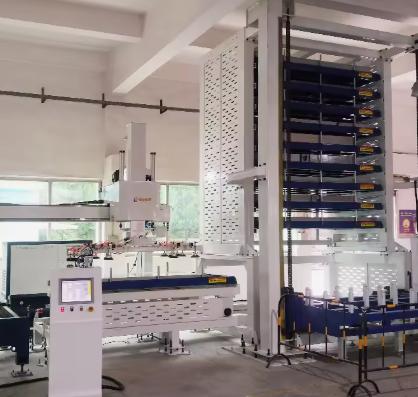

The Herochu Automatic Laser Vertical Plate Storage System is not merely a shelving unit; it is a sophisticated robotic ecosystem. At its core is the tower-type vertical design, which can save up to 85% of floor space compared to traditional flat stacking. In a typical workshop, sheet metal is often spread across hundreds of square meters, creating bottlenecks for forklifts and safety hazards for workers. Herochu reverses this trend by utilizing vertical height.

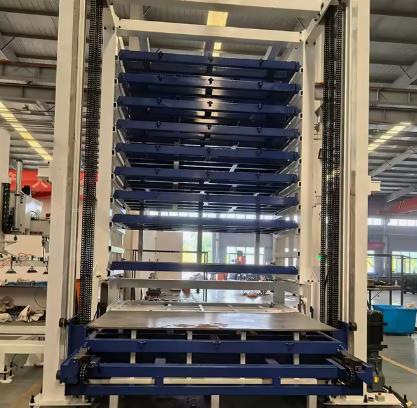

The main structure of the Herochu material warehouse includes an integrated elevator system and structured palletized levels. For example, a standard 6-tier or 8-tier configuration allows for the massive consolidation of tonnage. Whether you are dealing with high-load components or bulk materials, the high load-bearing capacity of the Herochu system ensures that goods are retrieved safely and with intelligent sorting.

Technical Mastery and Parameters

To understand the power of Herochu, one must look at the technical specifications. The model range, including the HC-A3015-83 and the HC-A4015-85, caters to various industrial scales.

• Sheet Dimensions: The system supports standard sizes such as 30001500 mm and up to 60002000 mm in the HC-A6020-105 model.
• Storage Capacity: With layers starting at 8 and being fully customizable, a single Herochu storage tower can manage dozens of tons of material.
• Transfer Efficiency: With transfer speeds ranging from 5-15 m/min and a lifting speed of 5-10 m/min, the downtime between cutting cycles is virtually eliminated.

Synchronization with Laser Cutting Machines

One of the standout features of the Herochu system is its ability to be fully synchronized with multiple laser cutting machines. Traditional setups often suffer from a “wait time” where a million-dollar laser sits idle because the operator is busy fetching a new sheet with a forklift. Herochu solves this through “Automatic Integration.” The system interfaces directly with the laser’s PLC, allowing the gantry robot to load a fresh sheet the millisecond the previous job is finished. This “unattended operation” can increase machine utilization by a staggering 100%, effectively doubling the output of your existing laser assets.

Safety and Intelligent Management

Safety is paramount when handling heavy metal plates. Herochu has engineered collision prevention and drop prevention designs into every moving part. Furthermore, the intelligent management system, equipped with WMS (Warehouse Management System) and WCS (Warehouse Control System), supports real-time inventory visualization. You no longer need to manually count sheets; the Herochu system tracks every movement, providing data accuracy within a 0.05% error margin thanks to high-precision load cells.

By choosing Herochu, manufacturers are not just buying a machine; they are investing in an “Optimized Layout Design” customized to their specific on-site environmental requirements. From automotive parts to electronic products, the Herochu Automatic Laser Vertical Plate Storage System is the ultimate solution for space-saving and efficient manufacturing.
