Automated Handling Gantry Manipulator – The Backbone of Modern Sheet Metal Automation

In the contemporary sheet metal fabrication landscape, the gap between a laser cutting machine’s theoretical throughput and its actual production output is almost entirely determined by material handling efficiency. A 40 kW fiber laser can pierce 25 mm mild steel in under half a second and cut a 4 m × 2 m nest in four minutes, yet the average stand-alone machine still waits twelve minutes for the next sheet. This disparity represents not just lost time but lost revenue—time during which an expensive capital asset sits idle while operators manually retrieve, position, and remove sheets.

The Herochu Automated Handling Gantry Manipulator has been engineered specifically to eliminate this bottleneck, operating as the central logistics node in a sheet metal fabrication environment. This system integrates a double-tower automatic loading and unloading warehouse, a bilateral gantry structure, and a PLC-controlled manipulator to execute a complete sequence of tasks: centralized three-dimensional storage, automatic issuance, automatic reclaiming, automatic sheet separation, automatic feeding, and automatic blanking. The result is an end-to-end automated production process requiring minimal human intervention.

System Architecture and Core Components

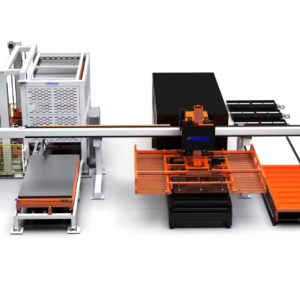

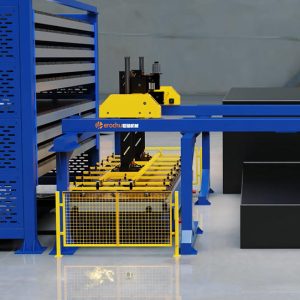

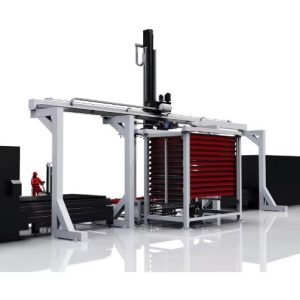

The Automated Handling Gantry Manipulator from Herochu is built around a heavy-duty gantry structure that supports transverse movement of the composite manipulator, enabling coverage of the entire storage and loading footprint. The gantry traverses the storage tower and loading station with precision and power, retrieving sheets from vertical storage and delivering them directly to the laser cutting bed. Two independent storage towers can operate in parallel, allowing the automatic gantry handling manipulator to retrieve sheets from one tower while simultaneously servicing the other.

The manipulator incorporates several advanced handling technologies: vacuum suction cup arrays for gentle, non-marring sheet pickup; automatic sheet separation systems that prevent double-pick or sheet sticking; and precision positioning systems that ensure sub-millimeter placement accuracy. This combination enables the robotic system to handle the full spectrum of sheet metal types—stainless steel, aluminum, mild steel, pre-coated blanks, and specialty alloys—with sheet dimensions ranging from 3000×1500 mm up to 6000×2500 mm and maximum sheet weights of 500 kg per lift.

Intelligent Control and Real-Time Coordination

The system is governed by a Siemens S7-1500 PLC control architecture with Profinet communication to the laser, HMI recipe management, and an OPC-UA interface for MES integration. This intelligent control system enables real-time diagnostics, visual and audible safety alarms, and seamless integration with laser cutter controllers. The PLC communicates with the laser’s controller to confirm that the bed is clear, the previous cut cycle has ended, and the clamping or pin table system is ready to receive the new sheet.

What distinguishes Herochu’s gantry manipulator from simpler automation solutions is its ability to synchronize with multiple laser cutting machines simultaneously. The system coordinates material retrieval, loading, cutting, and unloading across multiple machines, creating a fully automated production center that operates with minimal human intervention. While one laser cutter is processing a sheet, the robotic system retrieves and stages the next sheet, eliminating machine idle time.

Operational Specifications and Performance Metrics

The Herochu Automated Handling Gantry Manipulator is available in multiple configurations to accommodate different sheet sizes and load requirements. Standard models include HC-RT2513-300 (2500×1300 mm, 300 kg capacity), HC-RT3015-500 (3000×1500 mm, 500 kg capacity), HC-RT4015-500 (4000×1500 mm, 500 kg capacity), HC-RT4020-500 (4000×2000 mm, 500 kg capacity), and HC-RT6015-500 (6000×1500 mm, 500 kg capacity). The robot arm traverse speed ranges from 10 to 30 m/min, lifting speed from 5 to 10 m/min, and fork adjustment speed from 5 to 20 m/min, with a repeatability of ±2 mm. The system operates on an air supply of 0.6–0.7 MPa with air consumption of 1.5 m³/min and supports a skip load of up to 3 tons.

Return on Investment and Operational Benefits

For sheet metal fabricators seeking to maximize the return on high-power fiber laser equipment, the Herochu Automated Handling Gantry Manipulator delivers measurable operational improvements. By automating the loading and unloading process, the system reduces manual handling time, eliminates the physical strain associated with repetitive sheet lifting, and enables continuous, multi-shift operation without additional labor costs. The system supports 24/7 lights-out manufacturing, allowing production to continue through nights and weekends without human intervention.

The transition from manual material handling to automated gantry manipulation represents one of the most significant productivity leaps available to modern fabrication shops. Herochu has engineered this system to address the fundamental challenges of sheet metal handling: heavy loads, delicate surfaces, repetitive motion, and the relentless pressure to maximize machine utilization. The result is a material handling solution that transforms a laser cutting machine from a manually fed tool into an autonomous production asset.
