Herochu Vertical Steel Plate Storage Rack
Space-Saving, Damage-Free Stacking for Industrial Sheet Metal – From US $2,280, CE/UE/ISO 9001 Certified
Cluttered aisles, scratched stainless, and precarious leaning stacks are more than housekeeping issues—they erode productivity and profitability. Herochu’s roll-out Vertical Steel Plate Storage Rack converts dead wall space into a high-density, crane-ready filing cabinet for copper, aluminium, stainless, alloy, or precious-metal sheets up to 4 m long. Starting at US $2,280 per custom bay, the CE-, UE- and ISO 9001-certified system delivers immediate ROI through faster retrieval, safer handling and 60 % floor-space savings.
Precision-engineered advantages

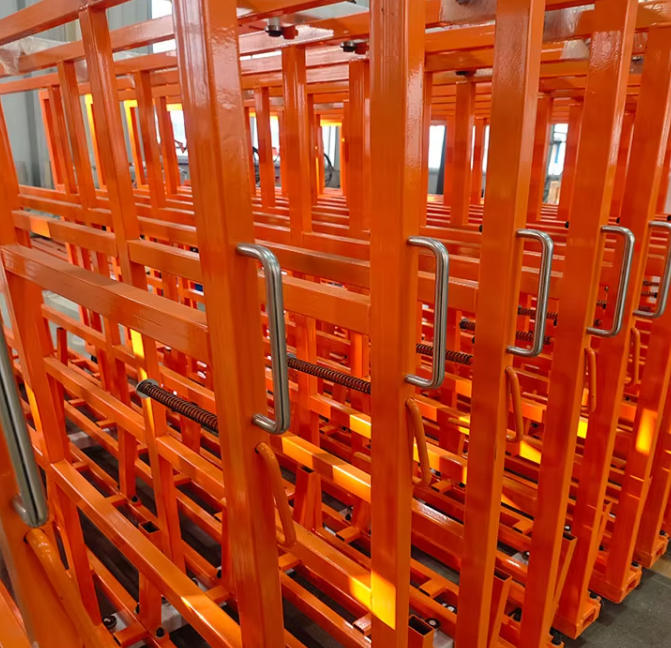

- 100 % full-extension drawers
Each drawer glides on sealed linear bearings, offering unobstructed crane or vacuum-lifter access without the need for forklift aisles. - 700 kg safe working load per drawer
Robust welded frame accommodates single plates or small stacks, eliminating over-loading and panel deflection. - 3-degree retention tilt
Sheets naturally rest against the rear stop, preventing accidental slip-out and protecting valuable surface finishes. - One-operator, one-hand operation
Ergonomic pull handles and low-friction slides allow a single worker to open, load, or unload in seconds—no second pair of hands required. - Modular “front-back” or “left-right” movement
Specify drawer travel direction to match existing crane paths, roller tables or laser-cell in-feed lines. - Scratch-free individual storage
Multi-layer drawer frames isolate each sheet, preventing edge burr damage and costly re-work. - Clean, organised workshop

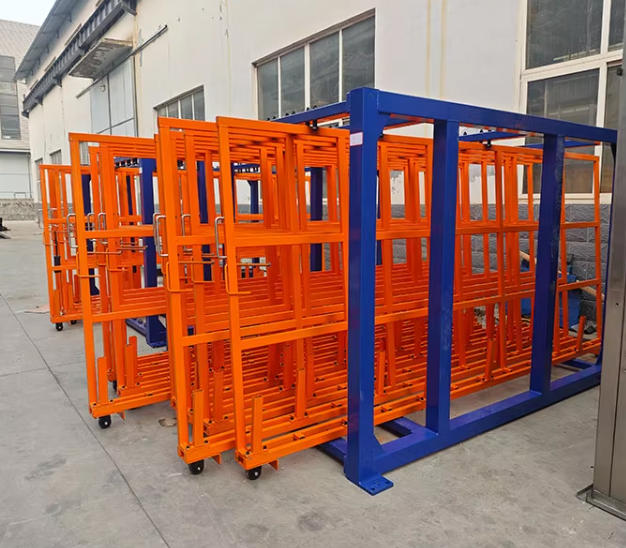

Replace floor piles with a single vertical bank up to 4.5 m high, freeing space for additional machines or inspection tables.
Pre-configured standard models
| Model | Max Sheet Size (L × W) | Drawers | Load / Drawer | External Dimensions (W × H × D) |
|---|---|---|---|---|
| HC-V2010-15 | 2 000 × 1 000 mm | 15 | 700 kg (1 t total bay) | 2 700 × 2 455 × 1 200 mm |
| HC-V2513-15 | 2 500 × 1 300 mm | 15 | 700 kg | 2 700 × 2 955 × 1 700 mm |
| HC-V3015-15 | 3 000 × 1 500 mm | 15 | 700 kg | 2 700 × 4 455 × 1 700 mm |
Key dimensional notes
- Usable shelf height: 50 mm per drawer
- Drawer spacing: 100 mm centre-to-centre (customisable)
- Colour: Standard RAL 5015 signal blue / 2004 orange; custom RAL on request
Built for industrial duty
- Frame: 3 mm Q235B cold-rolled steel, robot-welded and stress-relieved
- Surface finish: Powder coat ≥ 80 µm, salt-spray tested 500 h
- Slides: Sealed ball-bearing runners rated for 50 000 cycles at full load
- Safety: Integrated mechanical stop + secondary latch prevents unintentional roll-out
Installation & integration
- Ships in knock-down modules with pre-drilled base plates and levelling feet
- Anchors to 100 mm reinforced concrete slab; no overhead bracing required
- Optional accessories:
– PVC or felt drawer liners for polished sheets
– Ground-level drip trays for coolant containment
– Barcode holders or RFID pockets for inventory tracking
Typical payback scenario
A 15-drawer HC-V2513-15 bank replaces 40 m² of floor stacking in an 8 m² footprint. Users report:
- 65 % reduction in sheet search time
- 90 % decrease in surface scratches from double handling
- Payback under 14 months for high-throughput laser or CNC punch environments
Custom configuration workflow
- Submit sheet sizes, quantities and crane envelope
- Receive 3-D layout and static load calculation within 24 h
- Approve colour, drawer count and travel direction
- Delivered in 15–20 working days, fully warranted for two years
Certified quality, global support
Every Vertical Storage Rack is manufactured under CE, UE and ISO 9001 controls and backed by Herochu’s lifetime technical support. From small job-shop off-cuts to high-value aerospace plate, safeguard your material, protect your workforce and reclaim your floor with Herochu—where vertical space pays horizontal dividends.
