Herochu Vacuum Lifting Device for Sheet Metal – Overhead Pneumatic Suction Lifter from $2,689
Move 8 mm–20 mm steel, aluminum, or stainless sheets up to 4 000 × 1 250 mm and 1 000 kg at the touch of a finger—without cranes, chains, or floor clutter. Herochu’s Vacuum Lifting Device for Sheet Metal (sheet metal suction lifter) is an intelligent production solution that turns the ceiling of your workshop into a productivity engine. Engineered by the source factory, CE/UE/ISO 9001–certified, and fully customizable from $2,689, it is the safest, fastest, and most labor-saving way to feed laser cutters, press brakes, welding stations, and storage racks.
Why Overhead?

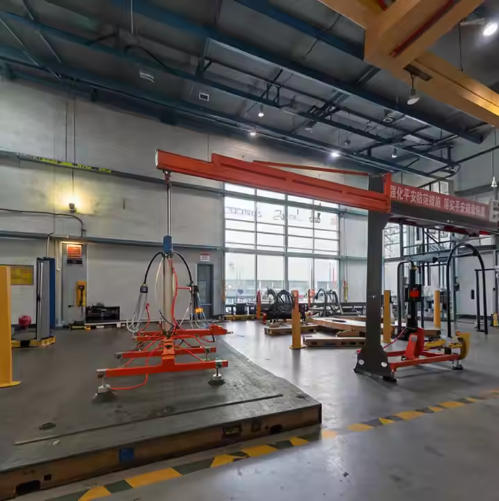

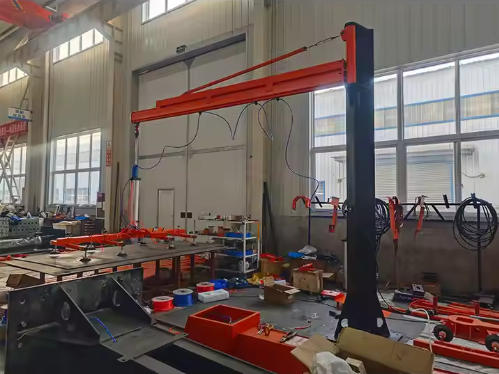

Floor-mounted manipulators create trip hazards and limit forklift traffic. The Herochu overhead model bolts to a ceiling plate, shelf, or offset column arm (supplied), eliminating every obstruction at ground level. The result: 30 % more usable floor space and zero interference with AGVs, pallets, or personnel.
Smart Engineering, Simple Operation
- Adjustable suction-cup beam: 8–10 cups (Ø200–250 mm) slide laterally to match any sheet width—no tools required.
- 360° manual rotation & 90° powered tilt: position sheets for vertical loading into tower cassettes or horizontal placement on cutting tables.
- Zero-gravity pneumatic balance: the operator guides the load with fingertip force; the manipulator auto-balances to prevent jerky movements.
- Instant response: start-to-finish handling cycle <30 s, repeatable all shift long.
Safety First
- Dual-circuit vacuum system with low-vacuum alarm and reserve tank—maintains grip for 5 min even if shop air drops.
- Air cut-off protection & anti-collision sensors stop motion if obstacles are detected.
- All motions are air-controlled—no electricity at the hook point, ideal for wet or flammable environments.
Product Specifications
Model – Max Plate – Thickness – Cups – Capacity
HC-RP3015-300 – 3 000 × 1 250 mm – 8 mm – 8×Ø200 – 300 kg
HC-RP3015-500 – 3 000 × 1 250 mm – 12 mm – 8×Ø200 – 500 kg
HC-RP3015-1000 – 3 000 × 1 250 mm – 20 mm – 10×Ø250 – 1 000 kg
HC-RP4020-300 – 4 000 × 1 250 mm – 8 mm – 8×Ø200 – 300 kg
HC-RP4020-500 – 4 000 × 1 250 mm – 12 mm – 8×Ø200 – 500 kg
Notes: Pneumatic or electric power modes available. Custom beam lengths, cup counts, or stainless-steel food-grade finishes offered for OEM/ODM clients.
Key Benefits
- Safe & Efficient
Reduce two-person lifts and crane queues. One operator handles 1-ton sheets without strain, cutting labor costs up to 60 %. - Flexible & Convenient
Slide the cup beam in seconds to switch from 1 250 × 1 250 mm off-cuts to full 4 m plates. Tilt or rotate on the fly—no downtime. - Factory Direct, Wholesale Price
Skip the distributor markup. Herochu ships worldwide at wholesale pricing, with spares stocked on three continents for 24-hour delivery. - Light Structure, Easy Install
Modular aluminum/carbon-steel frame assembles in under two hours. All bolts, ceiling plates, and anchor templates ship in one crate. - Future-Proof Customization
Need 6 m plates? 1 500 kg capacity? Food-grade suction cups for stainless? Our in-house engineers deliver 3-D layouts within 48 hours and retrofit your existing line without welding.
Typical Applications
- Laser-cutting centers: pre-stage sheets above shuttle tables for lights-out operation.
- Press-brake cells: feed blanks vertically to minimize scratch risk.
- Shipyards: lift curved aluminum plates onto assembly fixtures.
- Warehouses: load/unload truck beds without forklifts during night shifts.
Ordering & Support
- Send sheet size & weight range—we quote the optimal model.
- Approve 2-D ceiling layout and receive CE/ISO documentation.
- Receive complete kit with installation video and 12-month warranty.
Transform your workshop into an intelligent, clutter-free production zone with Herochu’s Vacuum Lifting Device for Sheet Metal. Contact us today for a free layout and wholesale quote starting at only $2,689.
