In the fast-paced world of manufacturing and fabrication, raw material management is often the unsung hero of operational efficiency. Many facilities struggle with cluttered floors, wasted space, and time-consuming manual retrieval processes when handling long-length metal stock—such as bars, tubes, pipes, and structural sections. This inefficiency not only eats into productivity but also increases the risk of material damage, mispicks, and workplace accidents. However, the game has changed with the introduction of the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system—a cutting-edge solution designed to transform how fabricators store, retrieve, and track their most critical raw materials. Unlike traditional storage methods that prioritize horizontal space and manual labor, this innovative system leverages vertical space, advanced automation, and smart inventory logic to create a streamlined, organized, and highly efficient storage environment that eliminates the chaos of conventional racking.

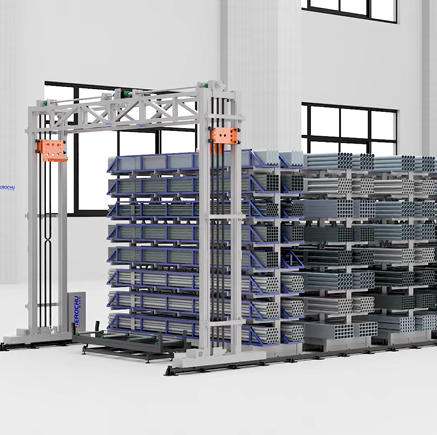

The phrase “out of sight, out of mind” has long plagued raw material management, with valuable metal stock often hidden in hard-to-reach corners or buried under other materials, leading to forgotten inventory, overordering, and unnecessary waste. But with the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system, this problem becomes a thing of the past. This silo-style storage solution is engineered to maximize vertical space, turning unused overhead area into a high-density storage matrix that keeps every piece of material visible, accessible, and accounted for. Unlike ground-level racks that require wide aisles for forklifts and manual handling, this system mounts vertically—either extending upward from a reinforced base or integrating seamlessly into existing ceiling structures—creating a true 3D storage environment where every square foot of floor space is preserved for production activities.
At the heart of this system is its modular design, which consists of a series of smart “cells” or drawers that function as individual storage units for categorized metal stock. Each drawer is precision-engineered to hold specific types of materials, whether it’s bundles of carbon steel pipes, aluminum bars, stainless steel tubes, or structural sections. This categorization ensures that materials are never mixed up, reducing the risk of mispicks and ensuring that the right material is always available when needed. The drawers are available in a wide range of customizable sizes to accommodate different material dimensions, with lengths ranging from 10 feet to 40 feet, widths from 1.3 feet to 6.5 feet, and weight capacities between 3,300 and 11,000 pounds per drawer. This flexibility makes the system suitable for facilities of all sizes, from small job shops to large-scale manufacturing plants handling high volumes of long-length metal stock.
What truly sets the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system apart from conventional storage solutions is its integrated intelligence and automation capabilities. The system is equipped with an advanced onboard control system that combines PLC (Programmable Logic Controller) logic, user-friendly HMIs (Human-Machine Interfaces), and optional cloud connectivity to manage inventory in real time. This control system acts as the “brain” of the storage system, ensuring that every retrieval, storage, and inventory update is executed with precision and efficiency. When a downstream process—such as a CNC band saw, laser cutter, or machining center—signals a need for a specific type of material (e.g., 3-inch schedule 40 carbon steel pipe), the system’s software immediately identifies the correct drawer, activates the retrieval mechanism, and delivers the material bundle to an ergonomic access point at waist height. This eliminates the need for operators to climb ladders, use cranes, or spend valuable time searching for materials, significantly reducing retrieval time and minimizing the risk of workplace injuries.
This isn’t just simple automation—it’s context-aware material logistics that adapts to the unique needs of your operation. The system is designed to track detailed information about every piece of material in storage, including alloy type, heat treatment status, lot numbers, and customer reservations. For example, if a facility is handling materials for aerospace clients that require strict traceability, the system can flag specific lots reserved for those clients, ensuring that only approved materials are used for their orders. Additionally, the system can be equipped with optional load cells that monitor the weight of each drawer in real time. This feature allows the system to detect partial material usage, unexpected removals, or low stock levels, triggering automatic alerts for operators or even initiating reorder points to prevent stockouts. This level of visibility and control ensures that facilities always have the right materials on hand, reducing downtime and improving customer satisfaction.
Space optimization is another key benefit of the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system. A typical unit stands between 30 to 52 feet tall but occupies less than 300 square feet of floor space—far less than the 1,500+ square feet required by traditional ground-level racking for the same volume of material. This dramatic space savings is a game-changer for facilities with limited floor space, as it allows them to reclaim valuable area for additional production equipment, workstations, or storage of finished goods. Despite its compact footprint, the system does not compromise on accessibility. Every drawer is designed to be easily accessible at waist height, eliminating the need for specialized equipment or manual lifting for routine picks. This not only improves efficiency but also reduces the risk of material damage, as materials are handled gently and consistently throughout the storage and retrieval process.
The system’s design also includes several features that enhance material protection and longevity. Open-bottom drawers allow swarf, coolant, and debris to fall through during storage, keeping materials clean and free from contaminants that could affect their quality. For round stock such as pipes and tubes, closed-side drawer variants prevent roll-off, ensuring that materials remain secure and organized. Fully open configurations with perimeter retention pins are available for strapped bundles that are handled by forklifts, providing flexibility for different material handling processes. All components of the system are constructed from high-quality, durable materials that are resistant to corrosion, wear, and tear, ensuring long-term reliability even in harsh manufacturing environments.
Seamless integration with existing workflow systems is critical for modern manufacturing facilities, and the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system is designed with this in mind. The system can integrate directly with a wide range of downstream and upstream systems, including saw controllers (via Ethernet/IP, Profinet, or Modbus), WMS (Warehouse Management Systems), ERP (Enterprise Resource Planning) software (such as SAP, Oracle, and Epicor), and barcode or QR code scanners for enhanced lot traceability. This integration ensures that inventory data is synchronized across all systems, eliminating manual data entry, reducing errors, and providing a complete end-to-end view of the material lifecycle. Additionally, the system is compliant with ISO 13849 safety standards, featuring safety-rated networks and emergency stop mechanisms to protect operators and equipment.
Underground or surface-mounted shuttles are used to move drawers silently and efficiently between storage and access bays, ensuring a continuous flow of materials to production processes. In double-tower configurations, a shared shuttle can queue the next job while the current one is being processed, eliminating idle time during changeovers and maximizing productivity. This seamless workflow integration ensures that the storage system becomes an integral part of the production process, rather than a bottleneck.
The real-world impact of the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system is evident in the success stories of facilities that have adopted it. Consider a mid-sized job shop that previously stored over 200 SKUs of aluminum and steel profiles across 12 floor racks. Before implementing the system, operators wasted 15–20 minutes per shift searching for materials, often pulling the wrong size due to poor labeling and disorganization. This led to costly rework, delays in production, and increased material waste. After installing the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system, the shop saw a dramatic transformation: retrieval time dropped to under 90 seconds per material pick, mispicks fell by 92%, and the floor space previously occupied by racking was reclaimed for a second CNC cell. This not only increased productivity by 30% but also reduced material waste by 15% and improved on-time delivery rates by 25%.
This success story is not an exception—it’s the norm for dozens of adopters across industries such as automotive, aerospace, construction, and heavy equipment manufacturing. Facilities that have implemented the system report significant improvements in operational efficiency, reduced labor costs, enhanced material traceability, and increased workplace safety. In the automotive industry, where just-in-time manufacturing is critical, the system ensures that materials are delivered to production lines exactly when needed, reducing inventory holding costs and minimizing downtime. In the aerospace industry, where strict traceability and quality control are required, the system’s ability to track lot numbers and material specifications ensures compliance with industry standards and customer requirements.
As labor costs continue to rise and skilled workers become scarcer, automation is no longer an option—it’s a strategic necessity for facilities looking to remain competitive. The Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system future-proofs your operation by standardizing material handling processes, reducing dependency on manual labor, and enabling lights-out manufacturing for overnight cutting runs. This means that facilities can operate 24/7, even with limited staff, increasing productivity and reducing operational costs.
To further enhance the value of the system, it can be paired with an Automated Bar Stock Storage for Bars, Tube & Profiles ecosystem, creating a fully synchronized raw material backbone. This ecosystem includes additional automation solutions such as automated guided vehicles (AGVs), robotic material handlers, and advanced inventory management software, all working together to create a seamless, end-to-end material handling process. This integrated approach supports agility, quality, and scalability, allowing facilities to adapt to changing market demands and grow their operations without compromising efficiency.
At [Manufacturer Name], we understand that every facility has unique storage needs, which is why we offer complimentary design services to create tailored solutions that meet your specific requirements. Whether you need a custom-sized system, a specific drawer configuration, or integration with your existing ERP or WMS software, our team of experienced engineers will work with you to develop a solution that fits your operation perfectly. As a direct manufacturer with over 15 years of industry experience, we have the expertise and capabilities to deliver high-quality, reliable storage systems that exceed your expectations.
We welcome orders of any size, from a single unit for small job shops to large-scale systems for industrial manufacturing plants. There is no minimum order quantity, and we offer competitive pricing and flexible delivery options to ensure that you get the system you need when you need it. To get detailed product information, including product images, technical specifications, and demonstration videos, simply click the “Get a Quote” button on our website or contact our sales team directly. Our team is always ready to answer your questions and provide personalized consultation to help you find the right storage solution for your facility.
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China, where we use advanced production equipment and strict quality control processes to ensure that every system we produce meets the highest standards of quality and reliability. Our quality assurance program includes a team of over 40 technical engineers who provide professional debugging and support, a dedicated quality control department compliant with ISO9001 standards, CE certification for all exports, and rigorous load testing before shipment to ensure structural safety and reliability. We are committed to delivering products that are built to last, providing our customers with a long-term return on their investment.
In addition to our high-quality products, we also offer comprehensive after-sales service, including on-site installation and debugging by our team of skilled technicians. Our technicians have extensive experience working with facilities around the world, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon, ensuring that your system is installed correctly and operates smoothly from day one. We also offer ongoing maintenance and support services to keep your system running at peak efficiency, including spare parts availability, remote troubleshooting, and on-site repairs.
In conclusion, the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system is a revolutionary solution that transforms raw material management for fabricators and manufacturers handling long-length metal stock. Its unique combination of vertical space optimization, advanced automation, smart inventory management, and seamless workflow integration makes it the ideal choice for facilities looking to improve efficiency, reduce costs, enhance safety, and future-proof their operations. Whether you’re a small job shop or a large-scale manufacturing plant, this system can be tailored to meet your specific needs, providing you with the control, visibility, and productivity you need to succeed in today’s competitive market. Don’t let outdated storage methods hold your facility back—invest in the Top-mounted Intelligent Fixed Profile Three-Dimensional Material Storage system and experience the difference it can make for your operation.
