Sheet metal vacuum lifting equipment | Cantilever manipulator electric sucker

Upgrade your workshop safety, throughput, and ergonomics with Herochu’s sheet-metal vacuum lifting equipment—the modular cantilever manipulator electric sucker engineered for seamless integration with laser cutters, shears, and press brakes. From compact electrical cabinets to full-scale kitchenware production, the system lifts, rotates, and positions 8–20 mm thick steel or aluminum sheets up to 4000 × 2000 mm and 1000 kg in a single, fluid motion.

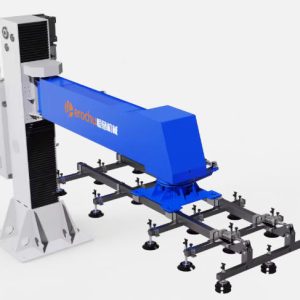

Servo swing arm handling manipulator
Servo swing arm handling manipulator

Every unit is CE, UE, and ISO 9001 certified, offering global-standard safety and reliability. Floor space is minimized thanks to tool-free modular assembly/disassembly, while plug-and-play electrics let you pair the lifter with existing automation lines in minutes.


Key Advantages

  • Convenient & Flexible: Lightweight aluminum/steel boom with quick-lock joints—assemble or dismantle in <30 min.
  • Security Assurance: Dual-circuit vacuum, emergency stop, and automatic braking maintain load integrity even during power loss .
  • Economical & Ergonomic: One operator replaces two-to-three manual handlers; intuitive joystick reduces fatigue and training time.
  • Multi-Industry Ready: Ideal for kitchenware, electrical cabinets, metal enclosures, HVAC ducting, and elevator panels.

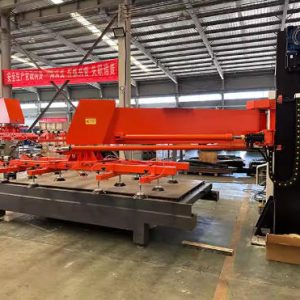

Servo swing arm handling manipulator
Servo swing arm handling manipulator

Technical Specifications

ModelMax Plate WeightFeeding Plate ThicknessMax Feeding SizeMin Feeding SizeSuction Cups ØPower Mode
HC-R3015-500500 kg12 mm3000 × 1500 mm1250 × 1000 mm15 × 150 mmElectric
HC-R3015-750750 kg12 mm3000 × 1500 mm1250 × 1000 mm15 × 200 mmElectric
HC-R3015-10001000 kg20 mm3000 × 1500 mm1250 × 1000 mm18 × 250 mmElectric
HC-R4020-500500 kg8 mm4000 × 2000 mm1250 × 1000 mm15 × 150 mmElectric
HC-R4020-750750 kg12 mm4000 × 2000 mm1250 × 1000 mm15 × 200 mmElectric

Note: All dimensions and load capacities can be customized to your exact workshop layout and crane rail height.


Sheet metal vacuum lifting equipment

Customization & Integration

No two factories are identical—that’s why Herochu offers OEM/ODM services:

  • Boom length from 2 m to 6 m
  • Vacuum zone splitting for small or odd-shaped blanks
  • Plug-in I/O for direct handshake with Trumpf, Amada, or Bystronic machines
  • Color, logo, and remote-control options

Customization starts at $6,999 and includes on-site measurement, 3-D simulation, and lifetime tech support.

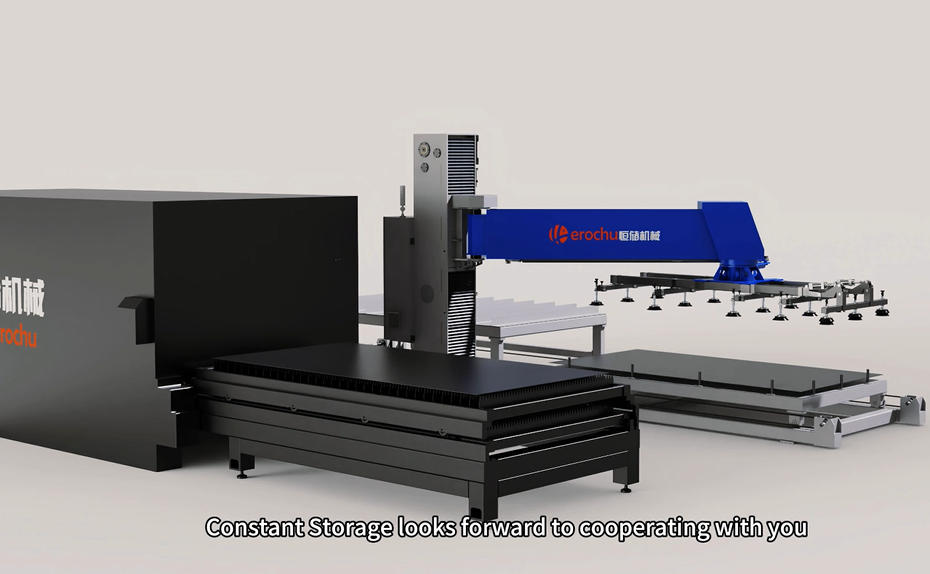

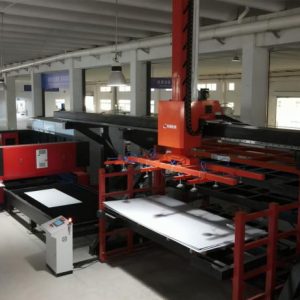

Laser Cutting loading and unloading manipulator
Laser Cutting loading and unloading manipulator

Why Choose Herochu?

  • Factory-direct pricing—no middlemen
  • Global certifications (CE, UE, ISO 9001) for worry-free audits
  • Proven track record in aerospace, railways, and automotive plants
  • 24/7 after-sales hotline and regional spare-parts hubs
