Sheet Metal Vacuum Lifters for Electric-Powered Vacuum Lifter for Handling Large Sheet Metal Panels

Herochu® Sheet-Metal Vacuum Lifters
Electric-Powered Vacuum Lifter for Handling Large Sheet-Metal Panels – Custom Engineered from US $840
CE • UE • ISO 9001 Certified

Stop wrestling with 4 m × 2 m stainless panels that threaten operator backs and scratch-sensitive finishes. Herochu’s next-generation electric vacuum lifters combine aerospace-grade suction cups, a telescopic cantilever crane and an ultra-low-headroom hoist to deliver 300 kg of safe, single-operator control—yet cost less than one week of forklift overtime. Every unit is custom-built in our 4 000 m² ISO-9001 facility in Jinan, then exported with full CE/UE documentation to Russia, the United States, South Korea, Mexico, Australia, Spain, Southeast Asia and the Middle East.

1. Break-through performance in a compact footprint
   Lifting envelope: 0 – 2.3 m vertical travel; horizontal outreach tailored to your aisle width.
   Shelf picking height: up to 2.1 m with 100 mm steel-plate reserve—perfect for existing vertical sheet towers.
   Ultra-low clearance hoist: saves 700 mm compared with conventional chain blocks, squeezing into 2 400 mm ceiling bays that were previously impossible.
   Cantilever crane bonus: detach the vacuum head in 3 seconds and use the same crane to move dies, crates or 200 kg motors—one investment, multiple workflows.
2. 300 kg pneumatic vacuum cantilever lifting robot—key technologies
   • 300 kg SWL (Safe Working Load) at 60 % vacuum safety factor—tested to 1 500 kg burst.
   • Quick-insertion ISO-A coupling: connect or disconnect the end-effector in <3 s, no tools required.
   • Intelligent automatic braking: if vacuum drops below 55 kPa or power is lost, spring-applied disc brakes engage within 10 ms; the load remains suspended indefinitely.
   • 360° continuous electric rotation ±5° precision—ideal for aligning panels on press-brake backstops.

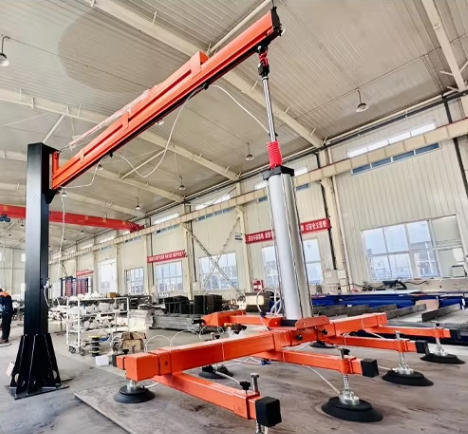

   • Modular suction frame: choose 4-, 6- or 8-pad configurations; pad spacing adjusts on T-slot rails for 500 mm up to 3 000 mm parts.
3. Safety systems that exceed ANSI B30.20
   – Dual-circuit vacuum lines with independent check valves.
   – Acoustic & visual low-vacuum alarm (<55 kPa).
   – Anti-collision photoelectric edge stops all motion if an obstacle is detected.
   – Air-cut-off protection: accumulator tank maintains vacuum for 5 minutes after compressor failure.
   – Ground strap prevents ESD damage to coated sheets.
4. Industry-proven components
   Vacuum pumps: Becker Germany or Orion Japan, oil-free, 24 m³/h @ -85 kPa.
   Solenoid valves: SMC Japan, 10 million-cycle rating.
   Energy chain: Igus Germany, 5-year UV-stable guarantee.
   Frame profiles: 6063-T5 aluminium with 12 µm anodise or carbon-steel epoxy powder-coat (custom colours).
   Control PLC: Siemens S7-1200 with 7-inch colour HMI, recipe library for up to 99 sheet types.
5. Customisation spectrum
   • Single-girder or cantilever crane spans 2 m – 8 m.
   • Floor-mounted, wall-mounted or ceiling-suspended variants.
   • Hoist speed: 4 m/min standard, 8 m/min optional for high-cycle lines.
   • Power supply: 110 V, 220 V, 380 V, 50/60 Hz.
   • Food-grade FDA suction pads for clean-room applications.
   • ATEX-certified pneumatics for Zone 1 & 2 hazardous areas.
6. Typical applications across 80 industries
   • Sheet-metal job shops feeding laser cutters, press brakes and panel benders.
   • Stainless-steel fabrication for elevators, medical equipment and architectural cladding.
   • Aluminium composite panel (ACP) installation on high-rise façades.
   • HVAC duct manufacture handling 3 m × 1.5 m galvanised coils.
   • Solar-panel assembly lines moving tempered-glass sheets up to 2.4 m × 1.2 m.
   • Shipping departments loading 40-foot containers without a forklift ramp.
7. Ease of installation & service
   Pre-wired plug-and-play pendant, no specialist electrician required.
   Installation manual, QR-code video library and remote video support included.
   Maintenance schedule: 5-minute daily leak check, 250-hour quarterly filter change.
   Spare-parts kit delivered in every crate: 2 extra suction cups, 5 m vacuum hose, O-ring set, Allen-key set.
8. Global logistics & packaging excellence
   Export-grade plywood crate with IPPC-ISPM-15 stamp.
   External markings: contract number, destination port, consignee, gross/net weight, box dimensions, “Handle with Care / Keep Dry / Do Not Invert”.
   Lifting lugs rated 3 t for safe forklift or overhead-crane handling.
   Consecutive numbering ensures traceability throughout the supply chain.
   Transit modes: sea, air or road—protective shrink-wrap and desiccant packs prevent corrosion.
9. About Herochu / Jinan Hengzhu Machinery Manufacturing Co., Ltd.
   Founded in 2010, 100+ employees, 4 000 m² modern factory in Jining Jiabei Industrial Park.
   Mission: “Using technology to change storage methods and improve storage efficiency.”
   Vision: “Global leader in intelligent storage equipment.”
   Quality: ISO 9001 production, 6S workshop management, 10-person R&D team with multiple patents.
   Products exported to 30+ countries, recognized by Fortune 500 fabricators and logistics giants.
10. Ordering process
11. Send sheet size/weight and shop layout—receive 3D proposal in 24 h.
12. Approve customised quotation starting at US $840.
13. 7-day manufacturing for standard spans, 15 days for engineered specials.
14. Delivery to your dock or jobsite worldwide.
15. Online commissioning and lifetime technical support.

Stop the sheet-metal shuffle. Click “Request Quote” now and discover why Herochu vacuum lifters are the safest, smartest and fastest way to move large panels—whether you’re loading a Trumpf laser, a Safan brake or a waiting flat-bed truck.
