Beyond Heavy Lifting: The Herochu Sheet Metal Swing Arm Robot – Where Precision Meets Unmatched Flexibility
Imagine a single machine that doesn’t just replace the most grueling, repetitive task in your workshop, but redefines it. A solution that doesn’t require building your entire factory floor around it, but one that adapts to the space and workflow you already have. For fabricators, welders, and manufacturers burdened by the sheer physical challenge of handling large-format sheet metal, this is no longer a hypothetical. The Herochu Sheet Metal Swing Arm Robot is here, transforming a century-old manual struggle into a seamless, semi-automatic ballet of precision and power.
The traditional process of loading a 4×2 meter, 500kg sheet of steel onto a laser cutter, press brake, or welding table is more than just time-consuming. It is a primary source of production bottlenecks, a significant safety risk for your most skilled operators, and a consistent cause of material damage from scratches and misalignment. The Herochu Swing Arm Robot is engineered from the ground up to eliminate these challenges, not with overwhelming complexity, but with intelligent, fluid motion.
The Anatomy of a Revolution: How the Swing Arm Redefines Motion

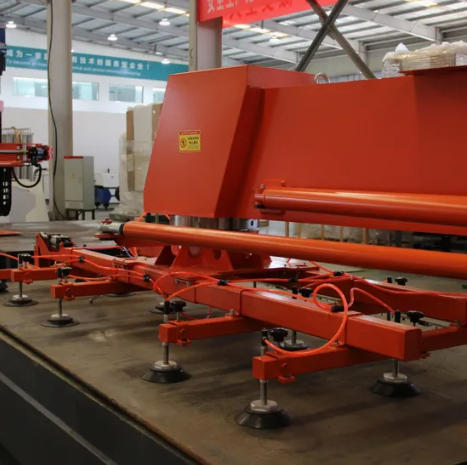

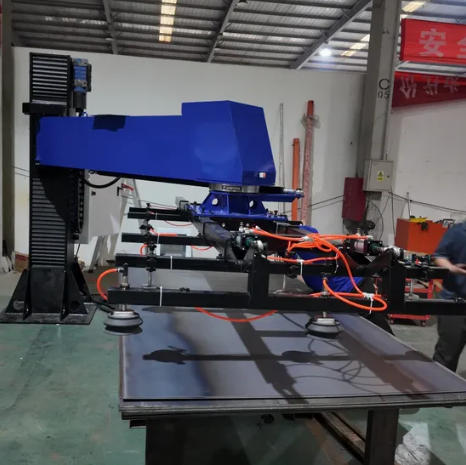

Unlike conventional linear robots or gantry systems that operate on fixed Cartesian paths, our Swing Arm Robot features a fundamentally different kinematic design. Think of it not as a machine moving on tracks, but as a highly skilled human arm and shoulder. The core of its innovation lies in a robust, rotating base and a multi-jointed arm that provides a remarkable 360-degree working envelope.
This “swing” is the key to its versatility. It can reach into tight spaces, maneuver around obstacles, and access multiple machines or storage racks from a single, fixed point of installation. This eliminates the need for extensive and expensive floor-mounted linear tracks, saving you critical floor space and reducing the system’s overall footprint. The motion is not jerky or rigid, but a smooth, continuous arc that is both efficient and gentle on the materials it handles.
Engineered for Real-World Workshop Demands
A revolutionary design is meaningless without the brute strength to back it up. The Herochu Swing Arm Robot is built with the rugged demands of a metal fabrication shop in mind. We offer a range of configurations to match your specific material profile, ensuring you never pay for overcapacity or risk the dangers of under-specification.
Our standard models are designed to handle the most common sheet sizes with authority:
- For mid-sized operations: Perfect for handling 3015mm (approx. 10ft) sheets with a robust payload capacity of up to 500kg (1100 lbs).
- For large-format fabrication: Capable of managing 4015mm and 4020mm sheets, with maximum load options scaling to 750kg and a formidable 1000kg (2200 lbs).
This power is managed with precision through a reliable PLC control system. The interface is designed for intuitiveness, requiring no complex robotics programming languages. Your operators can command it through simple inputs, teaching it pick-and-place points with ease, which drastically reduces training time and empowers your existing workforce to leverage advanced automation.
The Tangible Return on Investment: More Than Just Muscle
Investing in a Herochu Swing Arm Robot is a strategic decision that pays dividends across your entire operation.
1. The Elimination of Physical Strain and Injury Risk: This is the most immediate and critical benefit. By removing the human element from the heavy lifting, you virtually eliminate the risk of back injuries, crushed limbs, and musculoskeletal disorders. This protects your team, reduces downtime, and lowers long-term liability insurance costs. The safety-centric design, certified to stringent CE and UE standards, ensures the system itself operates with built-in safeguards.
2. A Dramatic Surge in Productivity and Throughput: A machine doesn’t tire. It doesn’t need a break. The Swing Arm Robot can load and unload your CNC machines, laser cutters, or press brakes in a fraction of the time it takes a manual crew. This allows your high-value capital equipment to operate more hours per day, significantly increasing your overall throughput and allowing you to take on more work without expanding your floor space or workforce.
3. Uncompromising Precision and Zero Damage: Every sheet is placed with millimeter accuracy, cycle after cycle. This eliminates the costly scrap caused by misalignment during loading, which can ruin an entire sheet and waste valuable machine processing time. The gentle, controlled motion of the swing arm prevents scratches and dents, ensuring the final quality of your product starts with flawless handling.
4. Unmatched Flexibility in a Dynamic Environment: The semi-automatic nature of the robot, controlled by a simple PLC, means it can be quickly reprogrammed for different tasks. Need to switch from unloading a laser cutter to feeding a stack of material to a new deburring station? A few simple teach-point adjustments are all it takes. This makes it an ideal solution for job shops and high-mix, low-volume production environments where flexibility is as important as raw speed.
Is the Herochu Swing Arm Robot the Right Fit for You?
This system is engineered for businesses that are ready to overcome the physical limitations of manual material handling. If any of the following scenarios sound familiar, it’s time for a conversation:
- Your skilled CNC operators or welders spend a significant portion of their day performing the unskilled, exhausting work of loading raw materials.
- You are experiencing bottlenecks at the front-end of your high-value machinery because loading is too slow.
- The risk of a serious injury from handling heavy sheets is a constant concern for your management team.
- You are planning to expand capacity but are constrained by floor space or the availability of manual labor.
The future of metal fabrication is not just about faster cutting or bending; it’s about creating a smarter, safer, and seamlessly connected workflow. The Herochu Sheet Metal Swing Arm Robot is the pivotal piece that bridges the gap between your raw material storage and your value-creation processes.
Stop letting the weight of your materials hold back your profitability. Contact us today to schedule a virtual consultation and discover how our customizable Sheet Metal Swing Arm Robots, starting at just $16,999, can be engineered to elevate your workshop’s potential.
