Herochu Sheet Metal Racking System | Precision Sheet Metal Storage Rack
Heavy-Duty Roll-Out Vertical Storage for the Modern Fabrication Shop
Floor space is expensive. Downtime is worse. Herochu’s Precision Sheet Metal Storage Rack converts vertical air into productive storage, letting you stock, stage and retrieve multi-ton sheets in seconds instead of minutes. Starting at just $3,660 for a fully customized unit and backed by CE, UE and ISO 9001 certification, this heavy-duty roll-out system is the fastest way to turn cramped corners into cash-flowing capacity.
Why Precision Matters
Fabricators lose money every time an operator struggles to pull the wrong sheet, or when a forklift blocks an aisle for ten minutes. Herochu’s vertical sheet metal racking system eliminates both problems in one engineered motion.

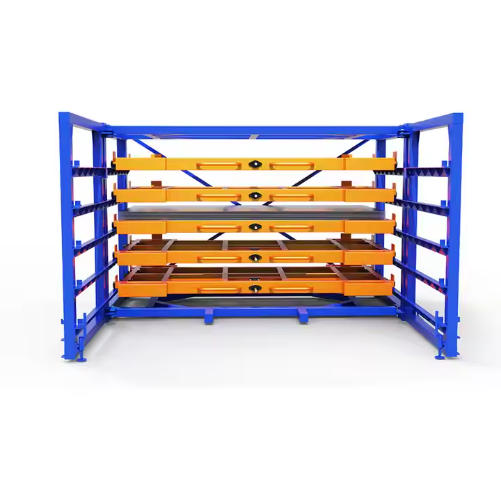

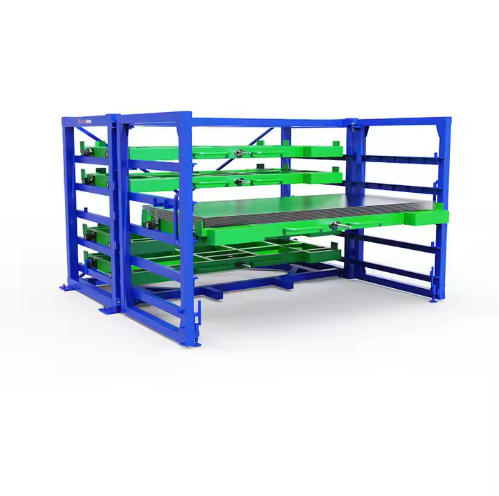

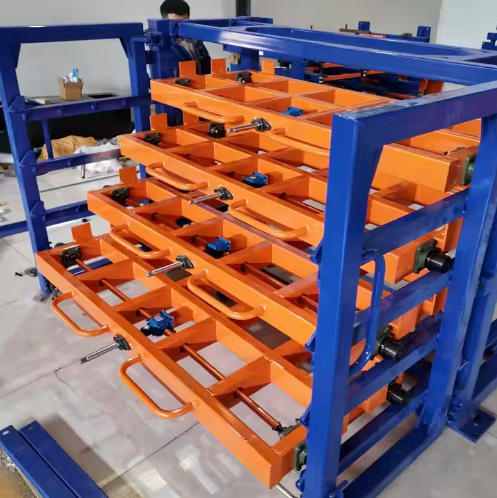

• Roll-out drawers glide on sealed linear bearings rated for 3–5 tons per layer, so one operator can safely extract a 6 m plate without hoists or helpers.
• Adjustable, repositionable arms lock at 50 mm increments to cradle 0.5 mm shim stock or 25 mm armor plate—no tools required.
• Fully welded, structural-grade steel frame keeps deflection under 1 mm at full rated load, protecting surface-critical sheets from bowing or scratching.
• Modular bays bolt together in minutes, allowing you to grow from a single tower to a wall of steel without cutting concrete or rewiring the plant.
Built for Heavy-Duty Reality
Model Guide

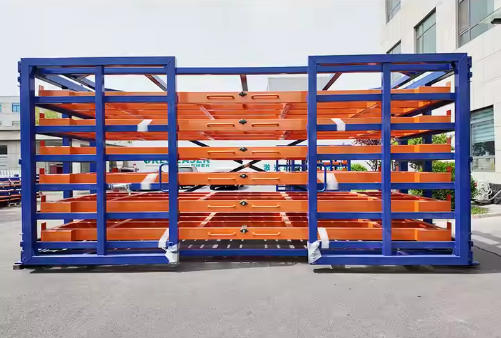

HC-B3015-63 – 3 t per layer, 3,000 × 1,500 mm sheet, 5 + 1 layers, 3,505 × 2,280 × 2,000 mm overall
HC-B4015-63 – 5 t per layer, 4,000 × 1,500 mm sheet, 5 + 1 layers, 4,505 × 2,280 × 2,000 mm overall
HC-B4020-65 – 5 t per layer, 4,000 × 2,000 mm sheet, 5 + 1 layers, 4,505 × 2,280 × 2,500 mm overall
HC-B6020-66 – 5 t per layer, 6,000 × 2,000 mm sheet, 5 + 1 layers, 6,505 × 2,280 × 2,500 mm overall
Every dimension—load rating, drawer height, number of layers, manual or 24 VDC electric drive—can be customized to match your exact workflow.
Business Benefits You Can Measure
Stored Safely
Sheets stand vertically in individual slots, eliminating lean-to stacks that can topple and crush tooling—or toes.
Improved Efficiency
Operators pick the right sheet the first time, every time. A Midwest laser-cutting shop cut setup time by 38 % after installing four HC-B4020-65 towers.
Space Saving
Vertical storage frees up to 60 % of floor area. Reclaim aisle width for additional machines or future expansion.
Cost Effective
All-welded steel construction and powder-coated finish resist weld spatter, cutting fluid and forklift bumps for decades. The average payback period is 14 months based on labor savings alone.
Heavy Sheet Metal Ready
From 4 × 8 ft mild-steel plates to 20 ft aluminum skins, the rack handles it without modification.
Manufacturing Process Integration
Drop the rack at the end of your shear, laser, punch or press brake. Optional roller tables and side-loading arms create a seamless infeed line.
Maximized Floor Space
One 2.3 m-deep tower stores the same tonnage as 24 m² of traditional A-frame racks.
Durable and Long-Lasting
5-year structural warranty plus lifetime roller replacement program.
Real-World ROI
A Tier-1 aerospace supplier in California replaced 18 outdated cantilever racks with six HC-B6020-66 units. Sheet retrieval time dropped from 15 minutes to 90 seconds, floor space shrank by 55 %, and the company added a new five-axis machining center in the newly freed area—generating $1.4 M in additional annual revenue.
How to Buy—Fast, Simple, Direct
Q1: How can I proceed with procurement?
Click the chat icon on any Herochu webpage or email your requirements. Our in-house engineers will reply with a 3-D concept drawing and formal quotation within 24 hours. Prefer to talk? Leave your WhatsApp, WeChat or phone number and a dedicated sales engineer will call you back in under 60 minutes.
Q2: How do I know I’m ordering the right shelves?
Send us:
• Maximum sheet size and thickness per pack
• Average pack weight and daily retrieval frequency
• Available floor footprint and ceiling height
• Integration requirements (forklift, overhead crane, AGV)
We’ll run a free AutoCAD layout and load calculation so you can see the exact ROI before you spend a dime.
Certifications & Support
• CE, UE and ISO 9001 certified manufacturing
• Optional RFID tags and barcode labels for digital inventory tracking
• Local service hubs in North America, Europe and Southeast Asia guarantee spare parts within 48 hours
Stop stacking. Start scaling. Contact Herochu today and give every sheet of metal a precision home that works as hard as you do.
