Sheet Metal Handling Equipment

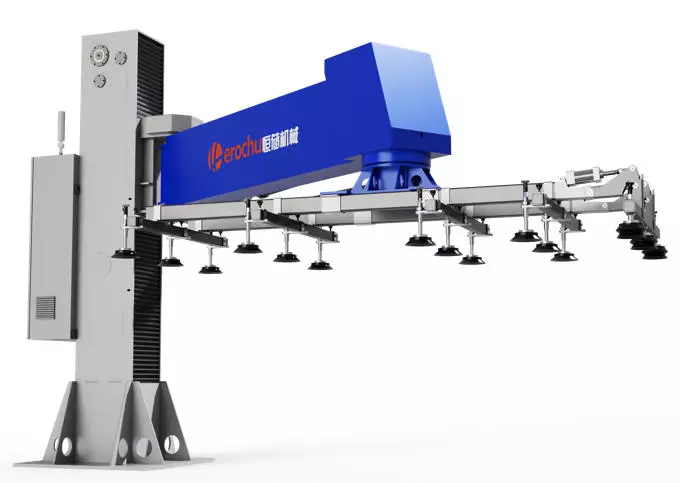

Sheet metal vacuum lifter

Advanced Industrial Robot System for Precision Material Handling

This high-performance robotic system integrates multiple cutting-edge technologies for efficient sheet metal processing. The core configuration includes:

Robotic Components:

6-axis articulated robotic arm with precision motion control
High-torque servo-driven synchronous lifting mechanism
Servo-controlled arm positioning transmission system

Specialized End Effectors:

Multiple industrial-grade oil-resistant vacuum suction cups
Individual pneumatic valves for each suction unit
Heavy-duty SNS pneumatic vacuum system

Safety & Control Systems:

Fail-safe power outage protection mechanism
Genuine Omron CNC control system
Integrated electrical control panel

Key Features & Benefits: ✔ Modular design for flexible configuration ✔ Lightweight yet durable construction ✔ Tool-free quick assembly/disassembly ✔ Energy-efficient servo technology ✔ Reliable safety protections

This turnkey robotic solution delivers exceptional precision and reliability for automated sheet metal handling operations across various industries.

Sheet Metal Handling Equipment Technical Parameters

product	Servo swing arm handling manipulator
feeding plate thickness	1-8mm	1-14mm	1-20mm
Maximum feeding format	3000*1500mm	3000*1500mm	3000*1500mm
Minimum feeding format	1250*1250mm	1250*1250mm	1250*1250mm
Maximum plate weight	300KG	500KG	1000KG

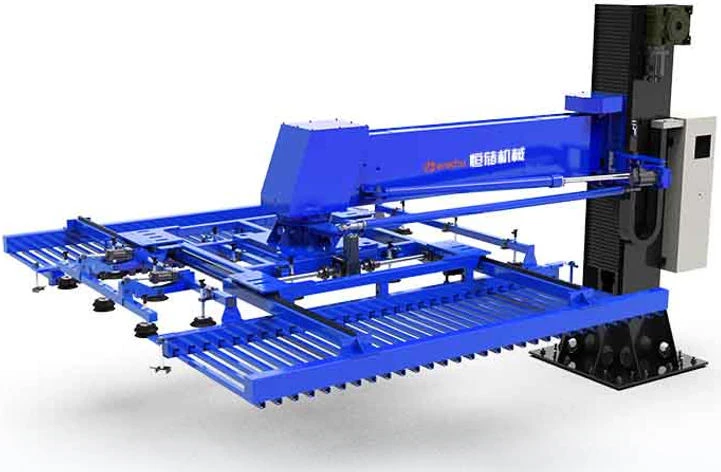

Sheet Metal Handling Equipment

Sheet metal lifting device

Advanced Robotic Sheet Handling System – Complete Equipment Package

Our cutting-edge automated solution features:

Articulated industrial robot with precision movement
High-torque servo synchronous lift mechanism for heavy payloads
Precision servo arm positioning system
Multiple heavy-duty oil-resistant vacuum cups (individually valved)
SNS pneumatic vacuum system for reliable operation
Emergency power failure protection
Omron CNC control system (original equipment)
Integrated electrical systems

Key Industries Served:

Commercial kitchen equipment manufacturing
Electrical enclosure production
Metal fabrication and sheet metal processing

Innovative Design Features:✔ Fully automated sheet loading/unloading ✔ Modular construction for flexible configurations ✔ Lightweight yet durable assembly ✔ Quick-change components for minimal downtime ✔ Compound motion technology for efficient processing

This turnkey automation solution delivers unmatched efficiency for sheet metal handling applications, combining Japanese precision engineering with robust German pneumatic technology.

Sheet Metal Handling Equipment Technical Parameters

Sheet metal lifting device	Compound servo swing arm sheet metal handling manipulator
feeding plate thickness	1-8mm	1-14mm	1-20mm
Maximum feeding format	3000*1500mm	3000*1500mm	3000*1500mm
Minimum feeding format	1250*1250mm	1250*1250mm	1250*1250mm
Maximum plate weight	300KG	500KG	1000KG

Sheet Metal Handling Equipment

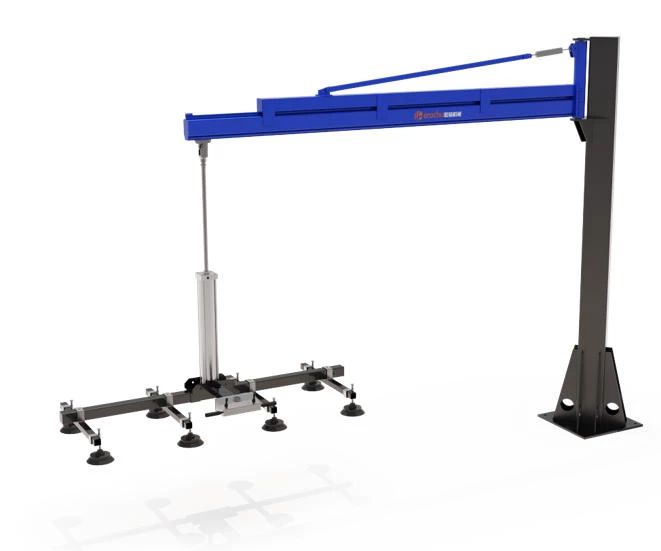

Pneumatic cantilever loading manipulator

Lightweight & Efficient Material Handling Machine with Superior Safety Features‌

This innovative material handling equipment combines portability with high-performance operation. Its lightweight yet durable construction allows for quick disassembly and reassembly, making it ideal for various industrial applications.

Key advantages include:

‌Effortless Operation‌: Operators can precisely control workpiece movement with minimal force, enabling smooth positioning at any point during transportation
‌Optimized Workflow‌: Delivers exceptional efficiency with rapid transfer cycles for continuous productivity
‌Enhanced Safety Systems‌: Features advanced protection including gas interruption safeguards and anti-top loading mechanisms to prevent accidents

The machine’s intelligent design ensures:
✓ Space-saving transportation solutions
✓ User-friendly loading/unloading processes
✓ Reliable performance across multiple industries

Perfect for manufacturing plants, warehouses, and logistics centers requiring fast, safe material transfer operations. Its combination of compact design and robust functionality makes it a versatile solution for modern material handling needs.

Sheet Metal Handling Equipment	Pneumatic cantilever loading manipulator
feeding plate thickness	1-8mm	1-12mm	1-20mm
Maximum feeding format	3000*1500mm	3000*1500mm	3000*1500mm
Minimum feeding format	1250*1250mm	1250*1250mm	1250*1250mm
Maximum plate weight	300KG	500KG	1000KG
Number of suction cups	8	8	8
Power mode	Pneumatic / Electric	Pneumatic / Electric	Pneumatic / Electric

Sheet Metal Handling Equipment

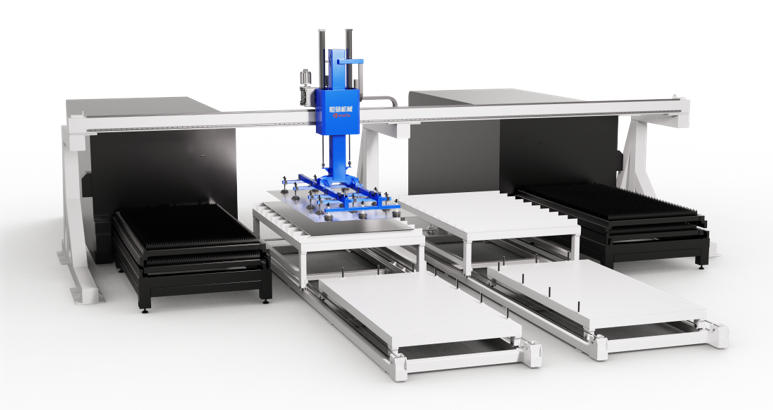

Single gantry compound loading and unloading manipulator

Automated Laser Cutting System with Intelligent Material Handling‌

This advanced automated production system integrates multiple high-performance components to create a complete sheet metal processing solution. The core configuration includes:

‌Precision Laser Cutting Machine‌ with integrated composite truss manipulator for seamless loading/unloading operations
‌Smart Double-Layer Electric Material Transfer Cart‌ for efficient workpiece movement
‌CNC Control System‌ ensuring accurate operation and process automation
‌Vacuum Control Technology‌ for secure material positioning

Key Benefits:
✓ ‌30%+ Productivity Boost‌ through continuous automated material handling
✓ ‌Cost Reduction‌ by minimizing manual labor requirements
✓ ‌24/7 Operation Capability‌ with reliable automated workflows
✓ ‌Consistent Quality Output‌ via precision-controlled processes

Ideal for metal fabrication shops and industrial manufacturers seeking to upgrade to Industry 4.0 standards. The system’s intelligent automation significantly reduces production cycle times while maintaining exceptional cutting accuracy for various sheet metal applications.

Sheet Metal Handling Equipment technical parameters

Specification	3015/4015/4020/4025mm
Maximum load	100KG-500KG
Skip load	3T/5T
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa

Sheet Metal Handling Equipment

Automatic one tow two loading manipulator

Advanced Gantry Loading Manipulator System – European-Designed Industrial Automation Solution‌

This high-performance gantry loading system integrates premium components for superior material handling:

‌Core Components:‌

‌Robust Gantry Beam Structure‌ – Engineered for heavy-duty industrial applications
‌Precision Servo Systems‌:
- High-torque synchronous lifting mechanism
- Accurate translation positioning transmission
‌Automated Storage System‌ with intelligent discharge rack
‌Industrial-Grade Vacuum Technology‌:
- Multiple oil-resistant suction cup arrays
- SNS pneumatic control system
‌Comprehensive Safety Package‌ with multi-layer protection
‌Omron CNC Control System‌ (original equipment) with integrated electrical systems

‌Key Advantages:‌
✓ ‌European-Engineered Design‌ – Optimized stability and durability
✓ ‌Low-Maintenance Operation‌ – Simplified service access and procedures
✓ ‌Precision Material Handling‌ – ±0.1mm positioning accuracy
✓ ‌Versatile Configuration‌ – Adaptable to various production environments

Ideal for automotive, aerospace, and heavy manufacturing applications requiring reliable automated loading solutions. The system’s modular design allows for easy integration with existing production lines while delivering exceptional operational efficiency and safety compliance.

Sheet Metal Handling Equipment technical parameters

Specification	3015/4015/4020mm
Number of floors	4
Load per layer	3T
Maximum load	100KG-500KG
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa

Sheet Metal Handling Equipment

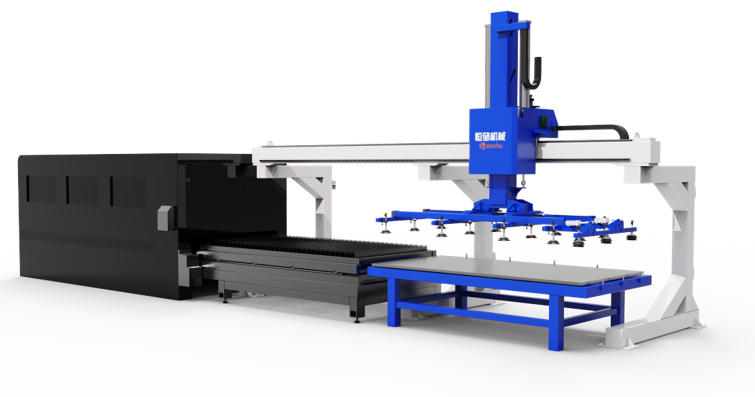

Single gantry one tow two automatic feeding manipulator

‌Automated Laser Cutting Production Line with Intelligent Material Handling‌

This advanced manufacturing system combines cutting-edge technologies to create a complete automated sheet metal processing solution:

‌System Components:‌

‌High-Precision Laser Cutting Machine‌ with integrated feeding system
‌Robotic Truss Manipulator‌ for seamless material transfer
‌Smart CNC Control System‌ for precise operation management
‌Vacuum Control Technology‌ ensuring stable material positioning

‌Key Benefits:‌
✓ ‌45% Productivity Increase‌ through continuous automated feeding
✓ ‌30% Cost Reduction‌ by minimizing manual intervention
✓ ‌24/7 Operation Capability‌ with reliable automated workflows
✓ ‌Consistent Quality Output‌ via precision-controlled processes

The automated plate feeding solution significantly enhances production efficiency while reducing operational costs in metal fabrication. Ideal for manufacturers seeking to upgrade to Industry 4.0 standards, this integrated system delivers:

‌Faster production cycles‌
‌Improved material utilization‌
‌Reduced labor requirements‌
‌Enhanced workplace safety‌

This turnkey automation package represents the future of smart manufacturing, combining robotic efficiency with laser precision for optimal performance in metal processing applications.

Sheet Metal Handling Equipment technical parameters

Specification	3015/4015/4020/6015/6020mm
Maximum load	300KG-1000KG
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa

Sheet Metal Handling Equipment

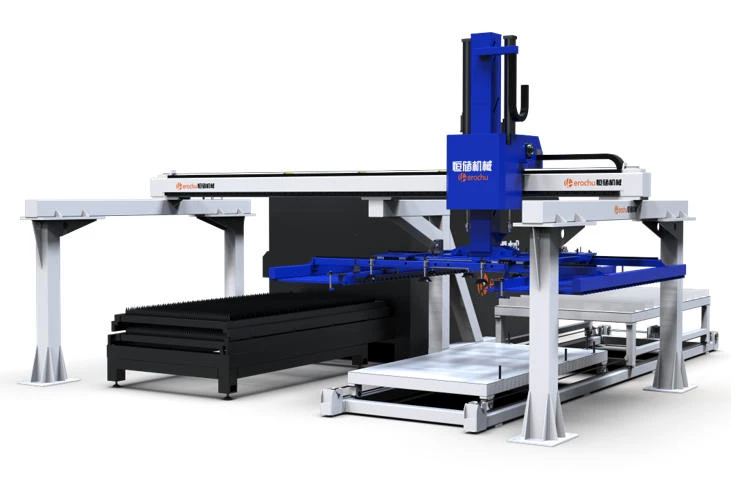

Single gantry automatic feeding manipulator

Automated Laser Cutting Production System with Intelligent Material Handling‌

This advanced manufacturing solution combines multiple high-performance components to create a complete automated sheet metal processing unit:

‌Core System Components:‌

‌High-Precision Laser Cutting Machine‌ with integrated loading system
‌Robotic Truss Manipulator‌ for automated material transfer
‌Smart CNC Control System‌ for precise operation management
‌Vacuum Control Technology‌ ensuring stable material positioning

‌Key Operational Benefits:‌
✓ ‌40-50% Productivity Boost‌ through continuous automated loading
✓ ‌30% Cost Reduction‌ by minimizing manual labor requirements
✓ ‌24/7 Operation Capability‌ with reliable automated workflows
✓ ‌Consistent Quality Output‌ via precision-controlled processes

‌Industry Applications:‌

Automotive parts manufacturing
Aerospace component fabrication
Industrial machinery production
Electronics enclosure manufacturing

This turnkey automation solution represents the future of smart manufacturing, combining robotic efficiency with laser precision to deliver:

Faster production cycles (up to 60% reduction in processing time)
Improved material utilization rates
Enhanced workplace safety standards
Reduced operational costs

The system’s modular design allows for seamless integration with existing production lines while meeting Industry 4.0 standards for intelligent manufacturing. With its European-engineered components and Japanese precision controls, this automated production unit sets new benchmarks for efficiency in metal fabrication processes.
