Introduction

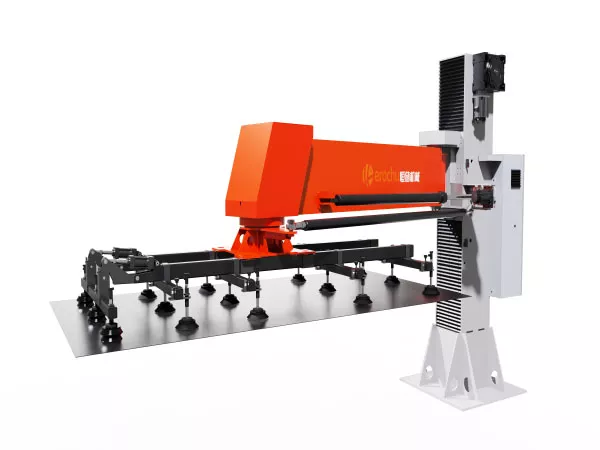

In today’s fast-paced industrial environment, automation plays a crucial role in enhancing productivity, reducing labor costs, and ensuring precision in material handling. The Servo Swing Arm Handling Manipulator is a state-of-the-art automation solution designed for loading and unloading applications in various industries, including automotive, electronics, and general manufacturing.
This advanced manipulator features high-precision servo control, robust construction, and intelligent safety mechanisms, making it an ideal choice for automated production lines. With load capacities ranging from 500KG to 1000KG and multiple customization options, it ensures seamless and efficient material handling operations.
Key Features of the Servo Swing Arm Handling Manipulator
1. High-Precision Servo Control System
The Servo Swing Arm Handling Manipulator is equipped with an original imported Omron CNC control system, ensuring exceptional positioning accuracy and repeatability. The servo-driven swing arm mechanism allows for smooth and rapid movements, optimizing workflow efficiency.
SNS Pneumatic System for stable and responsive operation
High torque servo synchronous lifting mechanism for precise vertical movements
Programmable automation for customized handling tasks
2. Heavy-Duty Construction & High Load Capacity
Designed for industrial durability, this manipulator can handle maximum loads of 500KG, 750KG, or 1000KG, depending on the model (3015/4015/4020mm specifications). Key structural components include:
Heavy-duty oil-resistant suction cups (each with an independent opening/closing valve)
Robust swing arm robotic arm body for stability under heavy loads
Servo swing arm positioning transmission for smooth motion control
3. Energy-Efficient Pneumatic Operation
The manipulator operates using compressed air (0.6-0.7Mpa), with an air consumption of just 1.5m³/min, ensuring cost-effective performance. The pneumatic system enhances speed and responsiveness while minimizing energy consumption.
4. Intelligent Safety & Reliability
Safety is a top priority in industrial automation. This manipulator includes:
Power outage safety protection system to prevent accidents during unexpected shutdowns
Fail-safe mechanisms to ensure secure material handling
Durable servo motors for long-term stability and minimal maintenance
5. Flexible & Adaptable Design
The Servo Swing Arm Handling Manipulator is engineered for versatility, making it suitable for various applications:
Automated assembly lines
Packaging and palletizing
CNC machine loading/unloading
Heavy part handling in automotive manufacturing
Its compact design allows easy integration into existing production setups, maximizing workspace efficiency.
Applications Across Industries
1. Automotive Manufacturing
In the automotive sector, precision and speed are critical. This manipulator ensures:
Accurate placement of heavy components (e.g., engines, chassis parts)
Seamless integration with robotic welding and assembly lines
Reduced manual labor and improved worker safety
2. Electronics & Semiconductor Industry
For delicate electronic components, the manipulator provides:
Gentle handling with adjustable suction force
High-speed pick-and-place operations
Minimized risk of product damage
3. General Manufacturing & Logistics
Whether for packaging, palletizing, or material transfer, this system enhances:
Workflow consistency
Operational speed
Error reduction in repetitive tasks
Why Choose the Servo Swing Arm Handling Manipulator?
✅ Higher Efficiency – Reduces cycle times and boosts productivity
✅ Precision Handling – Ensures accurate positioning with servo control
✅ Cost Savings – Lowers labor costs and energy consumption
✅ Durability – Built for heavy-duty industrial use
✅ Safety Compliance – Advanced protection systems for secure operations
Conclusion
The Servo Swing Arm Handling Manipulator is a game-changer in industrial automation, offering high-speed, precise, and reliable material handling for various sectors. With its advanced servo technology, robust construction, and intelligent safety features, it is an excellent investment for businesses looking to enhance productivity and reduce operational costs.
For industries seeking automated loading and unloading solutions, this manipulator delivers unmatched performance, flexibility, and efficiency. Upgrade your production line today with this cutting-edge automation system!
