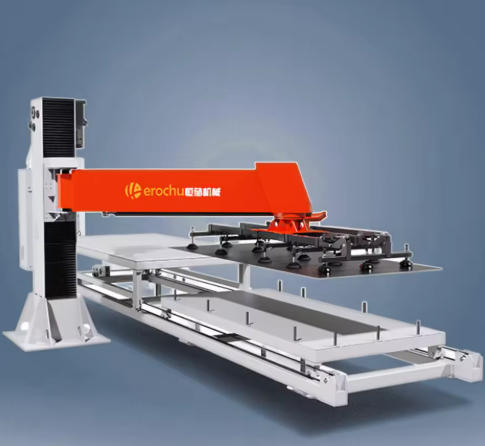

In today’s fast-paced industrial landscape, material handling is a critical aspect of production efficiency. The Servo Driven Swing Arm Robot Arm for Handling Industrial Automation represents a groundbreaking solution that addresses the challenges of modern manufacturing. This advanced robotic system is designed to optimize material handling processes, offering unparalleled precision, speed, and reliability in industrial environments.
The Core Technology Behind the Servo Swing Arm Robot
At the heart of this innovative system lies sophisticated servo technology that enables precise control over every movement. Unlike traditional pneumatic or hydraulic systems, servo-driven mechanisms offer:
- Digital precision: Positional accuracy down to millimeter levels
- Dynamic response: Instant adjustments to changing conditions
- Energy efficiency: Reduced power consumption compared to conventional systems
- Programmable flexibility: Easy adaptation to various material types and sizes
The swing arm design provides a unique advantage in material handling applications. Its articulated structure allows for:
- Wide coverage area with minimal footprint
- Smooth transition between loading and unloading positions
- Ability to navigate around obstacles in crowded work spaces
- Consistent performance at varying heights and angles
Applications Across Industries
This servo-driven robot arm finds application in diverse industrial sectors:
Metal Fabrication Industry
In sheet metal processing, the system excels at handling various materials including:
- Aluminum sheets
- Stainless steel plates
- Carbon steel components
- Special alloys
Its ability to work with materials ranging from 1-20mm thickness makes it ideal for laser cutting operations, where precise positioning is crucial for quality cuts.
Automotive Manufacturing
The automotive sector benefits from the robot’s:
- High-speed material transfer between workstations
- Consistent handling of large metal components
- Integration with CNC machines for seamless production flow
Aerospace Components
For precision-critical aerospace applications, the system offers:
- Gentle handling of delicate materials
- Contamination-free operation
- Traceability of material movements
Construction Equipment
In heavy machinery production, the robot demonstrates:
- Ability to handle large and heavy components
- Durability in harsh industrial environments
- Low maintenance requirements
System Integration and Customization
The servo swing arm robot arm is designed for seamless integration into existing production lines. Key integration features include:
CNC Machine Compatibility
The system can be configured to work with various CNC machine types through:
- Standard communication protocols
- Customizable interface modules
- Real-time data exchange capabilities
Material Handling System Components
The complete material handling solution includes:
- Laser cutting machine with integrated manipulator
- Double-layer electric exchange material car
- CNC control system
- Vacuum control system for secure material grip
Customization Options
Understanding that every production environment is unique, the system offers:
- Size customization (3015/4015/4020/4025mm configurations)
- Load capacity adjustments (100KG-500KG range)
- Specialized end-effectors for various material types
- Software customization for specific production sequences
Performance Advantages
Speed and Efficiency
The servo-driven system significantly outperforms traditional material handling methods:
- Reduced cycle times between operations
- Continuous operation without manual intervention
- Ability to handle multiple material types in sequence
Precision Handling
Critical for quality production, the system ensures:
- Millimeter-level positioning accuracy
- Consistent material orientation
- Gentle handling of delicate materials
- Minimal material waste
Safety Features
Incorporating advanced safety protocols:
- Collision detection and avoidance
- Emergency stop functionality
- Load monitoring systems
- Fail-safe mechanisms
Cost Benefits
The system delivers substantial cost savings through:
- Reduced labor requirements
- Minimized material waste
- Lower energy consumption
- Decreased maintenance costs
Technical Specifications
Model HC-RM3015 Detailed Features
- Payload Capacity: 200 kg
- Reach: 2000 mm
- Feeding Plate Thickness: 1-20mm
- Maximum Plate Weight: 1000kg
- Maximum Feeding Format: 3000*1500mm
- Minimum Feeding Format: 1250*1250mm
General Specifications
- Skip load capacity: 3T
- Air consumption: 1.5m³/min
- Air source requirements: 0.6-0.7Mpa
- Customizable dimensions
- Container transport packaging
Company Profile and Quality Assurance
Herochu Robotics, the manufacturer of this innovative system, operates from a 16,000-square-meter modern standard factory building with a team of over 100 professionals. The company’s commitment to quality is demonstrated through:
- ISO9001 and EU CE certifications
- Strategic partnerships with domestic industry leaders
- Extensive technical patent portfolio
- Recognition as an “AAA Credit Enterprise” and “Honest Entrepreneur”
Implementation Support
Herochu provides comprehensive support for system implementation:
- Customized solutions tailored to specific production needs
- Professional installation guidance
- Training programs for operators
- Ongoing technical support
- Maintenance services
Future Development
The company continuously invests in research and development to:
- Enhance system capabilities
- Expand application areas
- Improve energy efficiency
- Develop new material handling solutions
The Servo Driven Swing Arm Robot Arm for Handling Industrial Automation represents a significant leap forward in material handling technology. By combining advanced servo control with intelligent system integration, it offers manufacturers a comprehensive solution to improve productivity, reduce costs, and enhance product quality across various industrial applications.
