Herochu Roll-Out Honeycomb Rack for Long Materials | Crank-Out Cantilever Racks
CE & ISO 9001 Certified – Customized Solutions Starting at US$3,200

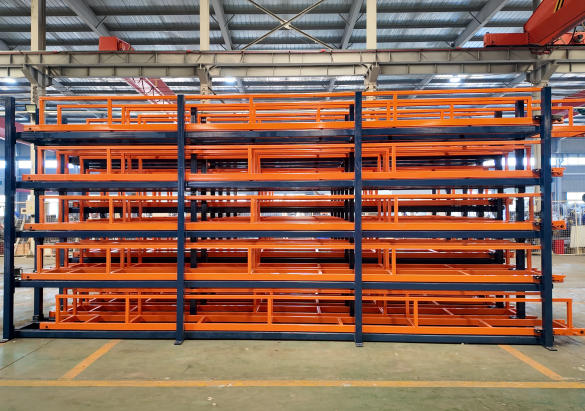

When your metal-pipe warehouse starts to choke on aisle space, the Herochu Roll-Out Honeycomb Rack turns every inch into profitable storage. Purpose-built for tubes, bars, rods, and long raw material, this crank-out cantilever system combines modular steel strength with 100 % slide-out access, letting one operator load or unload 6.5–12.5 m items in seconds—no extra forklift lanes, no double handling, no damaged surfaces.
Product Snapshot
• Brand: Herochu | Model: HC-G6053D
• Capacity: 3 t per layer, 5-layer standard, unlimited extendable bays
• Length: 6.5–12.5 m per drawer | Finish: Powder-coated, anti-rust & ESD-safe
• Certification: CE, ISO 9001 | Lead Time: 10–15 days | MOQ: 1 set
What Makes the Herochu Honeycomb Rack Unique?
- Instant Aisle Access
Each drawer tray glides out like a crank-out cantilever, giving overhead cranes or side loaders 100 % clear reach. Operators load a single 12 m pipe or bundle without entering the rack—safer, faster, and perfect for JIT shipments. - Modular, Limitless Expansion
Start with a 5-layer starter unit; bolt-on extra bays as inventory grows. Slot spacing adjusts in 100 mm increments so you never pay for wasted air space. - Damage-Free Storage

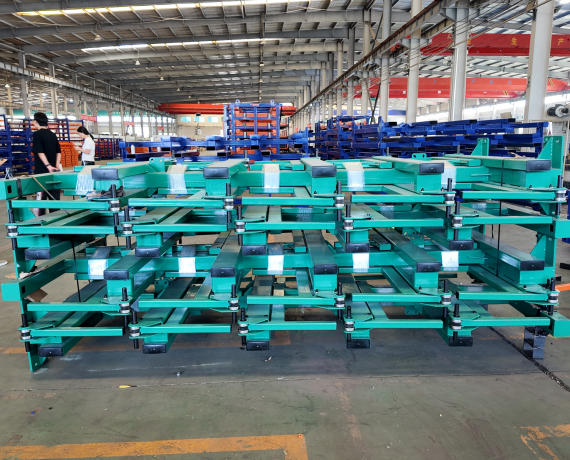

Laser-cut honeycomb dividers cradle every bar or tube, preventing surface scratches that cost you rework. Optional polymer liners add extra protection for polished or coated stock. - Heavy-Duty, Yet Compact
3 t per layer means you can stack full bundles while keeping floor footprints as low as 2.8 m² per bay. Build a steel platform on top and double your cubic utilization overnight. - One-Person Operation, Zero Strain
A low-friction pulley support and sealed bearing rollers let a single worker crank out a 3 t drawer with less than 25 kg pull force. The built-in safety lock auto-engages when the tray reaches full extension, eliminating roll-back risk. - Custom Workshop Fit
Herochu engineers visit your site (or work from CAD) to match exact aisle widths, crane hook heights, and SKU mix. Custom colors, galvanized finish, and ESD grounding are all available.

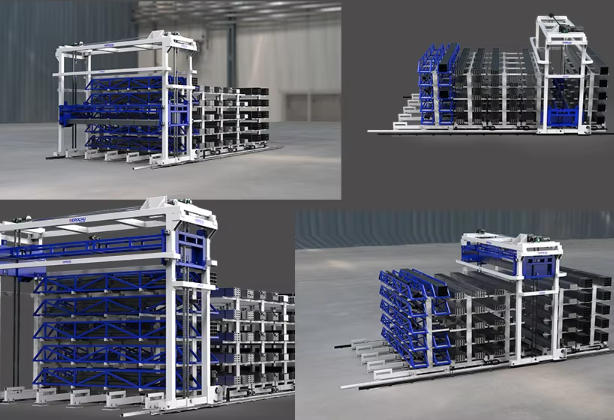

Typical Layout & ROI
• 12 bays × 5 layers = 180 t of long material in 34 m²
• Average retrieval time drops from 8 min to 90 sec per SKU
• Labor saving: 2 operators → 1 operator per shift
• Payback: <14 months for high-throughput mills and service centers
Material & Construction Highlights
• Steel grade: Q345B structural steel, 4 mm upright, 5 mm base plates
• Corrosion protection: Nano-ceramic pre-treatment + 80 µm powder coat
• Hardware: Grade 8.8 bolts, zinc-nickel plated for 1,000 h salt-spray resistance
• Safety factor: 1.65 under rated load, seismic-tested to UBC Zone 4
Installation & Service
Freestanding design requires no floor anchors in most applications. A two-person crew can assemble a starter bay in under 60 minutes using only an impact wrench. Herochu supplies multilingual installation manuals and video tutorials, or dispatches certified technicians worldwide. Every rack is serialized and backed by a 10-year structural warranty and lifetime technical support.
Industries Already Benefiting
• Steel service centers & tube mills
• Aluminum & stainless-steel distributors
• Automotive chassis manufacturers
• Oil & gas OCTG stockists
• Construction-prefab workshops
Request Your Custom Quote Today
Send us your longest tube length, bundle weight, and available floor space, and receive a 3-D layout plus firm quotation within 24 hours. Custom pricing starts at US$3,200 for a single starter bay and scales affordably with volume.
Herochu—engineered for the long haul.
