In today’s fast-paced industrial landscape, automation is no longer a luxury but a necessity. The Collaborative Servo Swing Arm Robot emerges as a game-changer in material handling, specifically designed for seamless loading and unloading operations in CNC machine environments. This advanced robotic arm combines precision, speed, and adaptability to meet the demands of modern manufacturing.

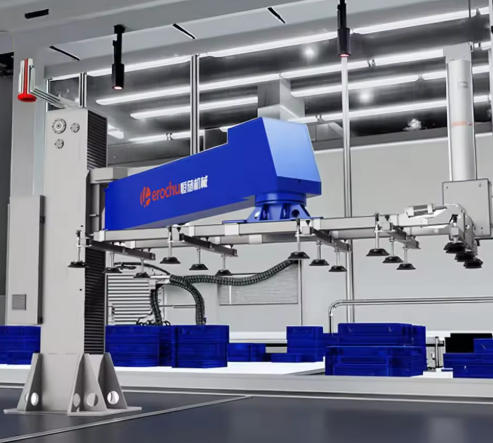

Understanding the Collaborative Servo Swing Arm Robot
The Servo Swing Arm Handling Manipulator is a sophisticated piece of engineering, integrating servo-driven technology with a swing arm design. This combination allows for unparalleled control over movement, ensuring smooth and accurate material handling. Unlike traditional robotic arms, this model emphasizes collaboration with human operators, enhancing safety and efficiency in shared workspaces.
Key Features and Benefits
- Automated Loading and Unloading Manipulator for CNC Machine: The robot excels in feeding raw materials into CNC machines and retrieving finished products, reducing manual intervention and minimizing errors.
- Material Handling, Loading and Unloading: Its design focuses on optimizing material flow, ensuring that sheets are transported with minimal delay, which is crucial for maintaining production schedules.
- Servo Driven Swing Arm Robot Arm for Handling Industrial Automation: The servo motor provides precise control over the arm’s movements, allowing for delicate handling of materials without compromising speed.
- Advanced Compound Servo Swing Arm Robot for Loading and Unloading: This model incorporates multiple servo systems to enhance performance, offering greater flexibility in handling diverse materials and shapes.
Technical Specifications
- Maximum Load: 100KG-500KG, catering to a wide range of industrial needs.
- Skip Load: 3T, ensuring robustness for heavy-duty applications.
- Air Consumption: 1.5m³/min, optimized for energy efficiency.
- Air Source: 0.6-0.7Mpa, compatible with standard industrial air systems.
Model HC-RM3015 Detailed Breakdown
- Payload Capacity: 200 kg, ideal for medium-scale operations.
- Reach: 2000 mm, providing extensive coverage within the work area.
- Feeding Plate Thickness: 1-20mm, accommodating various material thicknesses.
- Maximum Plate Weight: 1000kg, suitable for handling large and heavy sheets.
- Maximum Feeding Format: 3000*1500mm, ensuring compatibility with standard sheet sizes.
- Minimum Feeding Format: 1250*1250mm, offering flexibility for smaller components.
- Transport Package: Container, facilitating easy and secure shipping.
- Specification: Customizable, allowing tailored solutions for specific industrial needs.
- Trademark: Herochu, a brand synonymous with quality and innovation.
- Origin: China, reflecting the country’s advanced manufacturing capabilities.
- Production Capacity: 10000set/Year, demonstrating scalability and reliability.
The System Integration
The Collaborative Servo Swing Arm Robot is part of an integrated automated sheet metal production unit. This system includes:
- A laser cutting machine with a composite truss manipulator for loading and unloading.
- A double-layer electric exchange material car, enhancing material transport efficiency.
- A CNC control system, ensuring precise operation and easy integration with existing setups.

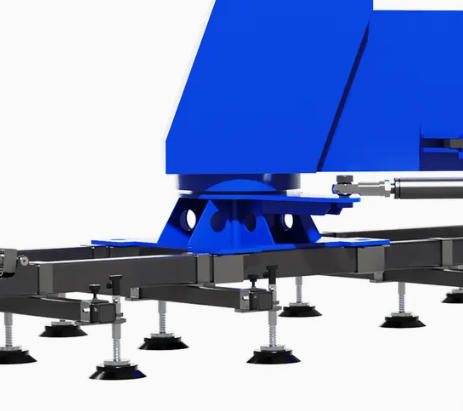

- A vacuum control system, providing secure grip during material handling.
Together, these components form a cohesive unit that significantly boosts production efficiency while reducing operational costs.
Why Choose this Robot?
- Enhanced Production Efficiency: By automating loading and unloading, the robot minimizes downtime and maximizes output.
- Cost Reduction: Reduced reliance on manual labor lowers operational expenses and decreases the risk of workplace injuries.
- Versatility: Capable of handling various materials and formats, making it suitable for diverse industrial applications.
- Customization Options: The ability to tailor specifications ensures that the robot meets specific operational requirements.
Company Profile
The manufacturer boasts a 16000-square-meter modern standard factory building and a team of over 100 dedicated employees. This infrastructure supports a professional service team that offers comprehensive customized services, including production, delivery, and installation guidance. The company’s commitment to quality is evident through its ISO9001 and EU CE certifications, along with strategic partnerships with renowned domestic enterprises. Additionally, it holds several technical patents and has been recognized with prestigious titles such as “AAA Credit Enterprise” and “Honest Entrepreneur”.
Packaging and Delivery
- Package Size: 320.00cm * 155.00cm * 155.00cm, designed for efficient storage and transport.
- Package Gross Weight: 1300.000kg, ensuring robust protection during shipping.
Conclusion
The Collaborative Servo Swing Arm Robot represents a significant leap forward in industrial automation. By integrating advanced servo technology with a collaborative design, it offers unmatched efficiency, precision, and versatility in material handling. Whether for small-scale operations or large industrial setups, this robot is poised to transform the way materials are loaded and unloaded, driving productivity and cost savings to new heights.
