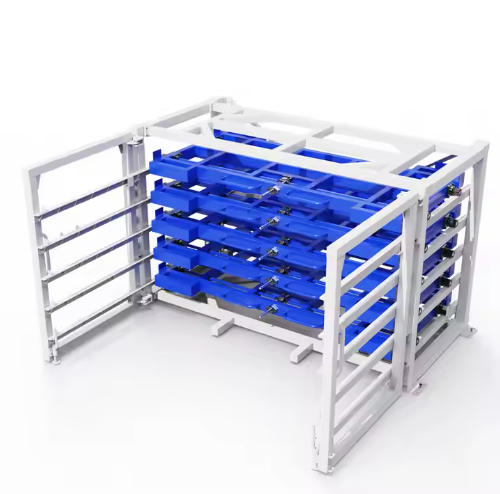

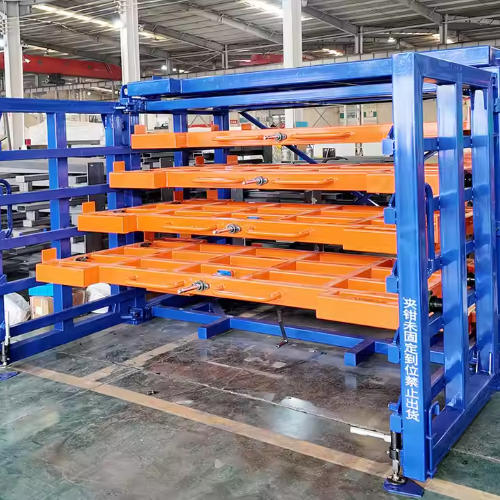

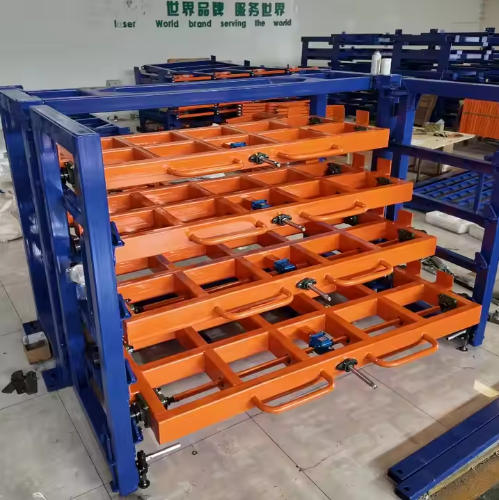

Herochu Pull-Out Drawer Metal Storage Shelves – Heavy-Duty Sheet Metal Racking System
Custom-Engineered for the Workshop That Never Slows Down

Every square foot of your workshop costs money—so why waste it on outdated, static racking? Herochu’s Pull-Out Drawer Metal Storage Shelves turn dead floor space into a high-density, high-throughput operation. Certified to CE, UE and ISO 9001 standards and starting at just $3,660 for a fully customized unit, this heavy-duty sheet-metal racking system lets you load, locate and retrieve several tons of steel plates in a single, smooth “shake-out” motion. No forklifts weaving between aisles. No operators straining to lift sheets by hand. Just open the drawer, pick the plate and get back to production.

Built for the Toughest Jobs

1. Greater Bearing Capacity
   Each drawer is an all-welded fortress of structural-grade sheet metal. Instead of spot welds that can crack under dynamic load, Herochu uses continuous full-penetration welding across every joint. The result is a system that handles 3–5 tons per layer without deflection—perfect for dense steel, aluminum or composite sheets up to 6 m long.
2. Effortless Operation
   Industrial-grade linear bearings and sealed rollers allow a single operator to pull out a multi-ton drawer with two fingers. When the drawer reaches full extension, an anti-tilt lock engages automatically, keeping the load stable while you pick parts. Push it closed and the drawer glides home, guided by replaceable polymer bumpers that keep noise below 70 dB.
3. 100 % Customizable
   Whether you run a 24-hour laser-cutting cell or a small tool-and-die shop, Herochu tailors every dimension to your workflow.
   • Load capacity: 1 t to 5 t per layer
   • Sheet size: 1,500 × 3,000 mm up to 2,000 × 6,000 mm
   • Number of layers: 2 to 7 plus a top deck for oversize stock
   • Drawer height: 150 mm to 450 mm in 50 mm increments
   • Power options: manual crank or 24 VDC electric drive with pendant control
   • Finish: powder-coated RAL 5012 light blue (standard) or any custom color for corporate branding

Choose Your Model

HC-B3015-63
Load per layer: 3 t | Sheet size: 3,000 × 1,500 mm | Layers: 5 + 1 | Overall: 3,505 × 2,280 × 2,000 mm

HC-B4015-63
Load per layer: 5 t | Sheet size: 4,000 × 1,500 mm | Layers: 5 + 1 | Overall: 4,505 × 2,280 × 2,000 mm

HC-B4020-65
Load per layer: 5 t | Sheet size: 4,000 × 2,000 mm | Layers: 5 + 1 | Overall: 4,505 × 2,280 × 2,500 mm

HC-B6020-66
Load per layer: 5 t | Sheet size: 6,000 × 2,000 mm | Layers: 5 + 1 | Overall: 6,505 × 2,280 × 2,500 mm

Need something different? Send us your material list and we’ll return a 3-D concept drawing within 24 hours.

How to Buy—Fast, Simple, Direct

Q1: How can I proceed with procurement?
Contact our in-house engineers via the chat window on any Herochu webpage. Send your sheet sizes, weight per pack, daily throughput and available floor space. We’ll email a detailed technical proposal and transparent quotation the same day. Prefer to talk? Drop your WhatsApp, WeChat or email and a dedicated sales engineer will reach out within one business hour.

Q2: How do I know I’m ordering the right shelves?
Tell us:

• Material type and thickness (steel, aluminum, stainless)
• Maximum single-sheet weight and stack height
• Forklift aisle width or crane hook height restrictions
• Preferred drawer opening direction (left, right, front)
• Optional extras: electric drive, barcode labels, RFID tags, drip trays for oily stock
  Our team will model the optimal layout in SolidWorks, calculate load paths with FEA and send you a photo-realistic render before manufacturing begins.

Real-World ROI

A Tier-1 automotive stamper in Ohio replaced six static A-frame racks with four HC-B4020-65 units. Floor space dropped from 240 m² to 75 m², sheet retrieval time fell from 12 minutes to 90 seconds, and first-year labor savings alone paid for the system. Whether you cut, bend, weld or ship, Herochu turns your raw-stock bottleneck into a competitive edge.

Certifications & Warranty

• CE, UE and ISO 9001 compliance ensures traceable materials, calibrated welds and full load testing.
• 5-year structural warranty and lifetime roller-replacement program.
• Local service partners in North America, Europe and Southeast Asia guarantee spare parts within 48 hours.

Stop stacking. Start sliding. Contact Herochu today and give every sheet of metal a home that works as hard as you do.
