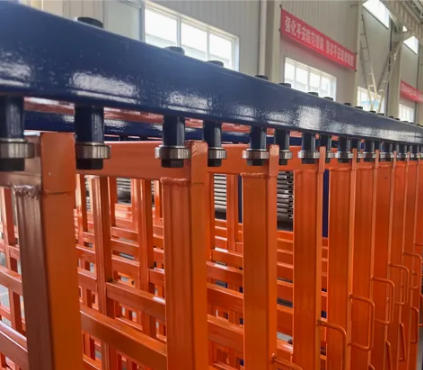

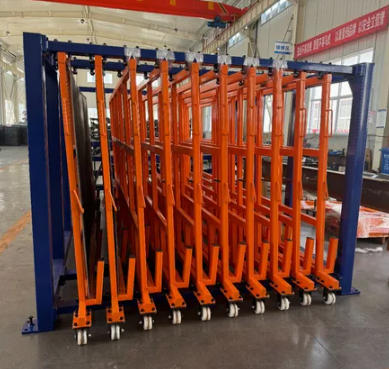

Vertical Sheet Metal Storage Rack Residual Material Rack for Steel Plate

Vertical Roll-out Sheet Metal Storage Rack

Vertical Sheet Storage System for Steel Plate

If your factory or workshop struggles with disorganized steel plates, wasted labor time, or inefficient use of floor space, the Herochu Vertical Sheet Storage System is the solution you’ve been searching for. Designed specifically for the safe, compact, and accessible storage of steel plates and metal sheet residuals, this system eliminates clutter, cuts down on handling time, and ensures every sheet is instantly available—all while adhering to global quality standards with CE, UE, and ISO 9001 certifications. Starting at just $5,000, it’s a cost-effective investment that scales with your needs, from standard models to fully customized setups tailored to your industry’s unique requirements.

Vertical Sheet Storage System for Steel Plate

Herochu Vertical Sheet Storage System for Steel Plate: Transform Your Workshop’s Efficiency Today

Why Vertical Storage? The Herochu Difference

Traditional horizontal storage for steel plates often leads to two major problems: wasted space and time-consuming retrieval. Stacking plates horizontally requires wide aisles for forklifts, eats up valuable floor area, and forces workers to sift through layers to find the right sheet—costing hours of labor each week. Herochu’s vertical design flips this script: by storing plates vertically in pull-out drawers, you reduce your storage footprint by up to 60%, place sheets within arm’s reach, and let a single worker handle operations that once needed a team.

Every component of the Herochu Vertical Sheet Storage System is engineered for durability and safety. The drawers, built to support loads from 300 kg (light-duty) to 2000 kg (heavy-duty) per layer, glide on smooth wheels that allow 100% extension—meaning you can pull the entire drawer out of the rack, no more reaching or risking damage to adjacent sheets. Non-skid strips line each drawer, keeping plates securely in place during movement, while the system’s sturdy steel frame resists warping and corrosion, even in high-use industrial environments.

Standard Models: Ready-to-Install Efficiency

Herochu offers three core standard models—HC-V2010-15, HC-V2513-15, and HC-V3015-15—each optimized for common steel plate sizes and workshop layouts. All three models feature 15 layers, a single-layer load capacity of 1 ton, and partition layers with 50 mm of available height, ensuring consistent performance across your operation.

Model	Plate Size (mm)	External Dimensions (LxHxW, mm)	Ideal For
HC-V2010-15	2000×1000	2700x2455x1200	Small to medium workshops, precision metalworking
HC-V2513-15	2500×1500	2700x2955x1700	Mid-size factories, automotive component manufacturing
HC-V3015-15	3000×1500	2700x4455x1700	Large-scale steel fabrication, construction supply yards

For example, the HC-V2010-15 is perfect for workshops handling smaller plates (2000×1000 mm). Its compact external width of 1200 mm lets you place it near machines—reducing the distance workers carry sheets—while 15 layers mean you can store up to 15 tons of steel in a footprint that’s just 2.7 meters long. The HC-V3015-15, on the other hand, caters to larger operations, supporting 3000×1500 mm plates and fitting seamlessly into high-volume production lines where maximizing storage density is critical.

BML & BM Series: Light-Duty to Heavy-Duty Flexibility

Beyond the HC-V standard line, Herochu offers the BML Series (light-duty) and BM Series (heavy-duty) to match your load requirements. Whether you’re storing thin metal sheets or thick steel plates, these models deliver tailored performance without compromising on accessibility.

BML Series (Light-Duty: 300–400 kg per Drawer)

The BML Series is designed for operations working with lighter materials, such as cut sheets, partial residuals, or thin-gauge steel. Each drawer has a 45 mm loading space, making it easy to slide sheets in and out, and the rack height ranges from 1405 mm (for 2000×1000 mm plates) to 1905 mm (for 3000×1500 mm plates). With 8–25 drawers per rack and widths from 1145 mm to 3060 mm, you can configure the BML Series to fit tight corners or expand along workshop walls.

BML 100-50: For 2000×1000 mm plates, 400 kg capacity, 8–25 drawers. Ideal for electronics or appliance manufacturing, where precision and quick access matter.

BML 125-50: For 2500×1250 mm plates, 350 kg capacity, 8–25 drawers. Perfect for HVAC shops storing ductwork materials.

BML 150-50: For 3000×1500 mm plates, 300 kg capacity, 8–25 drawers. Great for metal fabricators handling large but lightweight sheets.

BM Series (Heavy-Duty: 1000 kg per Drawer)

When you need to store thick, heavy steel plates, the BM Series is built to handle the load. Each drawer has a wider 75 mm loading space to accommodate thicker materials, and the rack height extends to 2010 mm for 3000×1500 mm plates—ensuring even large sheets fit securely. With 6–20 drawers per rack and widths up to 3800 mm, the BM Series is a workhorse for heavy-industry applications.

BM 100: For 2000×1000 mm plates, 1000 kg capacity, 6–20 drawers. Ideal for construction companies storing structural steel.

BM 125: For 2500×1250 mm plates, 1000 kg capacity, 6–20 drawers. Perfect for shipyards or heavy machinery manufacturers.

BM 150: For 3000×1500 mm plates, 1000 kg capacity, 6–20 drawers. Great for steel mills or industrial foundries.

Fully Customized Solutions: Built for Your Workshop

No two workshops are the same—and Herochu understands that. If your operation uses non-standard plate sizes, has unique space constraints, or requires specialized load capacities (up to 2000 kg per drawer), our team will design a custom vertical storage system that fits like a glove. From adjusting external dimensions to adding extra layers, integrating automated frame movement, or creating custom aisle spacing, we work with you to solve your specific storage challenges.

For example, if you’re a aerospace manufacturer working with 6000 mm-long titanium sheets (the maximum length our system supports), we can extend the rack length and reinforce the drawers to handle the extra size. If your workshop has low ceilings, we’ll reduce the rack height while maintaining drawer capacity. And if you need to store a mix of plate sizes, we’ll design partition layers with variable heights to keep everything organized.

Key Benefits: More Than Just Storage

The Herochu Vertical Sheet Storage System isn’t just a place to keep your steel plates—it’s a tool that transforms your workflow. Here’s how it adds value to your operation:

1. Save Time & Labor

Gone are the days of two workers and a forklift spending 15 minutes retrieving a single sheet. With Herochu’s system, one person can pull out a drawer and access the desired plate in seconds. This cuts labor time by up to 70%, freeing your team to focus on higher-value tasks like fabrication or quality control.

2. Maximize Floor Space

Vertical storage reduces your storage footprint by up to 60% compared to horizontal racks. For example, a 2500 mm-wide Herochu rack with 20 drawers can store the same number of 2500×1250 mm plates as a horizontal setup that takes up 4 meters of floor space. This lets you add more machines, expand production areas, or create safer, wider aisles.

3. Improve Safety

Safety is non-negotiable in industrial settings—and Herochu’s system is built with that in mind. Non-skid drawer strips prevent plates from sliding during movement, 100% pull-out drawers eliminate the need to reach into tight spaces, and the sturdy steel frame reduces the risk of collapse. Plus, by organizing plates neatly, you eliminate tripping hazards and reduce the chance of sheets falling and causing injury.

4. Reduce Material Waste

Disorganized storage often leads to damaged or lost plates—costing your business money. Herochu’s clear, visual design lets you see every sheet at a glance, so you never misplace or double-order materials. The vertical orientation also prevents warping (a common issue with horizontal stacking), keeping your plates in perfect condition for use.

5. Global Quality Assurance

All Herochu Vertical Sheet Storage Systems are CE, UE, and ISO 9001 certified—meaning they meet the strictest international standards for safety, durability, and performance. Whether you’re operating in Europe, North America, or Asia, you can trust that your system is built to last.

Who Benefits Most from Herochu’s Vertical Storage?

This system is a game-changer for any industry that works with steel plates or metal sheets, including:

Metal Fabrication: Store cut sheets, residuals, and raw materials for quick access during welding or bending.

Automotive Manufacturing: Keep body panels, chassis components, and thin-gauge steel organized near assembly lines.

Construction: Store structural steel, rebar plates, and metal framing materials on-site or in warehouses.

Aerospace & Defense: Handle large, lightweight or heavy-duty metal sheets with precision and safety.

HVAC & Ductwork: Store aluminum and steel sheets for duct fabrication, reducing retrieval time.

Get Started with Herochu Today

Ready to transform your workshop’s storage efficiency? The Herochu Vertical Sheet Storage System starts at $5,000 for standard models, with customized solutions priced based on your specific needs. Our team will work with you to assess your space, understand your plate size and load requirements, and design a system that delivers immediate ROI through time and labor savings.

With CE, UE, and ISO 9001 certifications, 100% pull-out drawers, and a focus on durability, the Herochu Vertical Sheet Storage System is more than a purchase—it’s an investment in your operation’s long-term success. Contact us today to request a quote, schedule a demo, or learn how we can customize a solution for your workshop.

Herochu: Where Efficiency Meets Durability.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
