Vertical Sheet Rack System

Reclaim Your Floor, Revolutionize Your Workflow: The Herochu Vertical Sheet Rack System

For fabricators, welders, and workshop managers, sheet metal is more than just raw material—it’s the canvas of your craft and the lifeblood of your production. Yet, its storage often becomes the single greatest bottleneck to efficiency. The sprawling, horizontal piles of steel, aluminum, or composite sheets are a familiar sight: a chaotic landscape that devours precious floor space, risks costly damage to pristine surfaces, and turns a simple material retrieval into a time-consuming, often hazardous, physical ordeal.

The Herochu Vertical Sheet Rack System (VSRS) was engineered from the ground up to dismantle this paradigm. This is not merely a shelving unit; it is a high-density, high-capacity storage architecture for your most valuable assets. Imagine a vertical library, but instead of books, each “shelf” is a heavy-duty, fully extendable drawer capable of holding up to one ton of sheet material. This is the new standard for industrial organization, transforming chaotic workshops into models of precision and productivity.

The Core Philosophy: Why Vertical, Why Roll-Out?

Traditional storage solutions force you to think horizontally. The Herochu VSRS challenges you to look up. By storing sheets vertically within a compact footprint, you are effectively stacking your storage density exponentially without expanding your workshop’s square footage. The space you once used to store five sheets horizontally can now store fifty vertically.

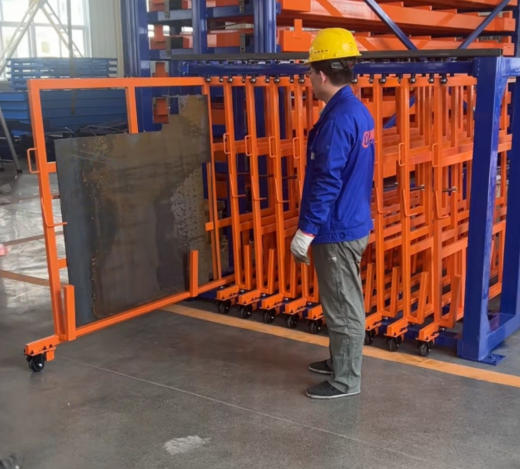

But vertical storage alone isn’t enough. Anyone who has tried to pry a specific sheet from the middle of a vertical stack knows the frustration and danger involved. This is where the Herochu innovation truly shines. Every single storage layer is a fully independent, roll-out drawer. With a smooth, confident pull, the entire drawer—and the one-ton load it carries—glides out on reinforced tracks, presenting the complete face of the sheet material for seamless, 360-degree access.

This combination solves multiple critical problems at once:

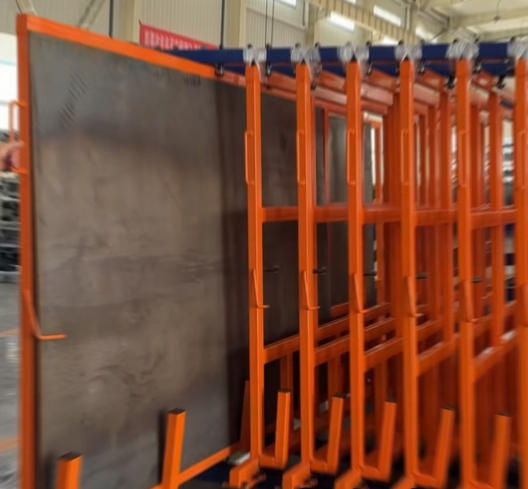

• Eliminates Damage: No more scraping sheets across each other. Each sheet rests securely in its own dedicated, upright channel.

• Saves Critical Floor Space: Reduce your storage footprint by up to 70% compared to horizontal racking or A-frame solutions, freeing up real estate for more fabrication stations, machinery, or workflow lanes.

• Accelerates Material Handling: Retrieve any sheet, from any layer, in seconds. No more unloading the top layers to get to the one at the bottom. This directly translates to more jobs completed per day.

• Enhances Workshop Safety: The angled vertical design keeps sheets securely contained, preventing them from tipping over. The ergonomic drawer operation removes the need for strenuous lifting and precarious maneuvering.

Engineering for Uncompromising Performance: A Deeper Look

Beneath its sleek, powder-coated exterior lies a masterpiece of industrial engineering. The Herochu VSRS is built to perform day in and day out in the most demanding workshop environments.

1. The Drawer That Defies Weight:
The heart of the system is its integrated pull-out drawer. We don’t use standard shelf slides; we use a custom-engineered, reinforced guide track system coupled with industrial-grade load rollers. This ensures that whether the drawer is empty or loaded to its full 2,000 lb (907 kg) capacity, the motion remains consistently smooth and stable. The full-extension design means the drawer stops are at the very end of the track, exposing the entire sheet. This is a critical feature for modern material handling, allowing for effortless access with:

• Forklifts: Drive the forks directly into the exposed space.

• Vacuum Lifts & Sheet Lifters: Position the lifter head perfectly on the sheet face.

• Overhead Hoists & Magnets: Secure the load without obstructions.

• Manual Handling: Grip the sheet edges comfortably and safely.

2. Unmatched Customization and Flexibility:
Your workshop is unique, and your storage system should be too. While we offer robust standard models like the HC-V3015-15 (for 3000x1500mm sheets), the true power of the Herochu system lies in its adaptability.

• Tailored to Your Material: The available height of each partition layer is a precise 50mm. This is not an arbitrary number; it is designed to accommodate standard sheet thicknesses while preventing excessive wobble, and it’s perfect for storing valuable remnant pieces on the integrated lateral support bars.

• Scale to Your Volume: The system is modular. Start with a 5-drawer unit for your most commonly used materials and expand to a 25-drawer tower as your business grows. The structure is designed for combined stability.

• Built to Your Exact Specifications: Need a unit for oversized 4020mm sheets? A specific color to match your shop’s branding? A non-standard number of layers with varying capacities? Our “Customized” option is a direct line to our engineering team, who will work with you to design a solution that fits your space and workflow perfectly, starting at a accessible $5,000.

3. Rugged Construction for a Demanding World:

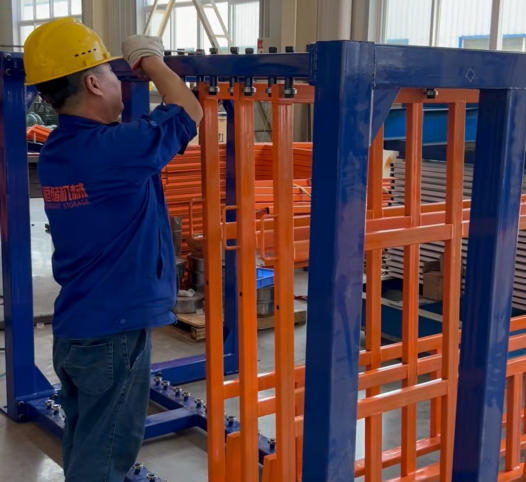

Constructed entirely from high-tensile steel and finished with a durable powder coat, the VSRS is built to resist the knocks, sparks, and environmental factors of a busy workshop. The frame is not just a housing; it is a structural cage that distributes the immense weight evenly, ensuring long-term integrity and stability. With a self-weight of 500kg for the standard units, this is a permanent, rock-solid installation you can rely on for decades.

Technical Specifications at a Glance

General Model Attributes (HC-G9052S):

• Material: High-Grade Steel

• Structure: Multi-Level Drawer Racking

• Mobility: Combined/Modular Design

• Color: Fully Customizable

• Certifications: CE, UKCA, ISO 9001 (Guaranteeing quality and safety standards)

Who is the Herochu VSRS For?

This system is the definitive answer for any industry that lives and breathes sheet material.

• Metal Fabrication Shops: From laser cutting to welding, keep your stainless steel, aluminum, and mild steel sheets organized and accessible.

• Aerospace & Automotive Manufacturing: Store composites, alloys, and specialized materials without risk of contamination or damage.

• Signage and CNC Machining Centers: Organize acrylic, polycarbonate, and aluminum sheets for faster job turnover.

• HVAC Ductwork Manufacturers: Tame the chaos of large, coiled, and sheet stock.

• Any Warehouse Needing High-Density Storage: The principles apply to any flat, panel-based material.

Invest in Order, Invest in Efficiency

The Herochu Vertical Sheet Rack System is more than a purchase; it is an investment in the future of your workshop. It pays for itself not just through the space it reclaims, but through the time it saves, the damage it prevents, and the safety it ensures. It is a statement that your materials, your workspace, and your team’s efficiency matter.

Stop wrestling with your inventory. Elevate it.

Contact us today to discuss your needs. Let our team provide a no-obligation custom design and quote, and discover how starting at $5,000, you can build a cleaner, safer, and profoundly more productive workshop.
