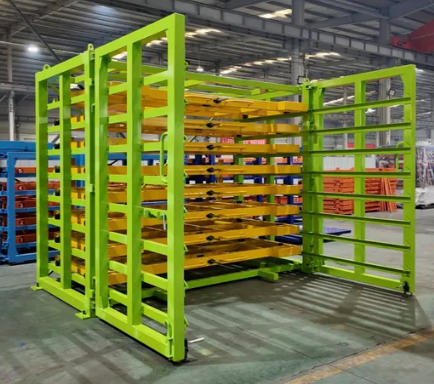

Versatile Industrial Sheet Storage Rack with Drawer System: Custom Solutions for Modern Fabrication

In the realm of industrial manufacturing, the “one-size-fits-all” approach is often the enemy of efficiency. A job shop that primarily handles 3-meter aluminum sheets has vastly different storage requirements than a heavy equipment manufacturer dealing with 6-meter steel plates. This is where the Versatile Industrial Sheet Storage Rack with Drawer System stands out. Unlike static storage solutions that force your workflow to adapt to their limitations, this rack system is designed to adapt to you. It offers an unprecedented level of customization, ensuring that every square inch of your facility is utilized effectively and every sheet of metal is stored safely.

Tailored Dimensions and Load Capacity
The standard dimensions offered—3000x1500mm, 4000x1500mm, 4000x2000mm, and 6000x2000mm—cover the vast majority of industrial sheet sizes. However, the true versatility lies in the customization options. If your operation requires storing sheets that are 5 meters long or 2.5 meters wide, the rack can be engineered to accommodate these specific dimensions without wasting space.

Similarly, load capacity is not fixed. While standard options range from 3 tons to 6 tons per layer, the design can be reinforced to handle up to 20 tons per layer. This is a critical feature for companies working with heavy-duty materials like armor plate, thick stainless steel for pressure vessels, or large copper plates for electrical applications. By customizing the load-bearing capacity, you ensure that the structural components—the beams, rails, and drawers—are optimized specifically for the weight they will carry, balancing safety with material cost efficiency.

Flexible Layer Configurations and Customized Features
One of the most valuable aspects of this versatile drawer system is the ability to customize the number of layers. Depending on the height of your facility and the thickness of the materials you store, you can configure the rack to hold between 2 and 10 drawers. This flexibility allows you to maximize your vertical cubic footage. If you store thin aluminum sheets, you can pack more layers; if you store thick steel plates, you can space them out.

The distance between two layers is also adjustable. Standard distances like 110mm or 180mm are available, but custom spacing can be specified to accommodate specific tooling or to create clearance for lifting equipment. Additionally, the operation system can be tailored. For precision control, a mechanical hand-crank system provides a slow, steady rollout, ideal for heavy loads where operator control is paramount. For high-throughput environments, an automatic electric operation system can be installed, allowing for rapid retrieval at the push of a button.

Protecting High-Value Materials
When dealing with expensive materials like copper, brass, or high-grade aluminum, the cost of damage is not just the material itself, but the downtime caused by sourcing a replacement. The drawer system of this versatile rack ensures that each panel is stored independently on a flat surface. This eliminates the risks associated with traditional storage: surface scratches from sliding sheets, dents from falling edges, and deformation from stacking pressure.

For manufacturers working with aluminum, steel, and copper plates, this level of protection is non-negotiable. Aluminum, in particular, is soft and prone to scratching. The independent flat storage ensures that the protective film on pre-finished aluminum sheets remains intact until the moment the sheet is fed into the laser cutter or press brake. This results in a higher quality finished product and fewer rejects due to material handling damage.

Integration into Fully Automated Production
The versatility of this rack system extends beyond its physical configuration to its ability to integrate with advanced manufacturing technologies. In modern facilities, the trend is toward the “Main Products” trinity of laser cutting, intelligent warehousing, and truss linkage. The Versatile Industrial Sheet Storage Rack with Drawer System is designed to be the central hub of this ecosystem.

When equipped with an automatic operation system, the rack can be linked to a warehouse management system (WMS) and a robotic truss loader. When the laser cutter finishes a job and requests the next material type, the software identifies the correct drawer, automatically rolls it out, and a truss-mounted gripper retrieves the sheet and delivers it to the machine. This creates a fully automated production cell where human intervention is reduced to supervisory roles only, dramatically increasing throughput, improving safety, and reducing labor costs. The ability to customize the rack dimensions and controls ensures that this automation integration is seamless, regardless of the specific make or model of the laser cutting equipment.

Conclusion
The Versatile Industrial Sheet Storage Rack with Drawer System is more than just a place to store metal; it is a strategic asset. By offering customizable dimensions, variable load capacities, adjustable layers, and seamless integration with automation, it provides a tailored solution that grows with your business. Whether you are a job shop looking to organize a diverse inventory or a high-volume manufacturer aiming to automate your material flow, the versatility of this drawer system delivers the durability, efficiency, and protection you need to stay competitive.
