Vacuum lifting device for sheet metal

Herochu’s Vacuum Lifting Devices provide a high-performance solution for the secure and rapid movement of sheet metal, glass, wood, and other flat materials.

Vacuum lifting device for sheet metal

Advanced Vacuum Technology for Safe & Efficient Sheet Metal Handling

In industrial manufacturing and material handling, precision, safety, and efficiency are non-negotiable. Herochu’s Vacuum Lifting Devices provide a high-performance solution for the secure and rapid movement of sheet metal, glass, wood, and other flat materials.

Engineered with robust vacuum technology, our lifters minimize manual labor, reduce workplace injuries, and optimize workflow efficiency—making them indispensable in warehouses, production facilities, and construction sites.

Why Choose Herochu Vacuum Lifters?

1. Unmatched Safety & Reliability

Automatic vacuum monitoring with visual/audible alarms
Safety valves prevent load drops during power fluctuations
CE-certified compliance with international safety standards

2. High-Capacity Handling with Precision

Lifts sheet metal, glass, granite, and more (up to several tons)
Adjustable suction force for varying material weights
Tilt & rotation capabilities for precise positioning

3. Customizable for Any Application

Multiple frame configurations (flat, curved, vertical, or horizontal handling)
Choice of electric or compressed air (Venturi) vacuum pumps
Specialized models for glass, metal, wood, and insulated panels

4. Durable & Weather-Resistant Construction

Electro-welded steel frames for maximum strength
Corrosion-resistant finishes for outdoor use
Low-maintenance design for long-term reliability

How Herochu Vacuum Lifters Work

Core Components & Technology

Vacuum Generator – Powered by electric or compressed air systems.
Suction Plates/Cups – High-grip materials for secure load attachment.
Safety Circuit – Includes:
- Vacuum reserve tank (backup suction)
- Pressure sensors & emergency valves
- Real-time vacuum gauge monitoring
Control System – Push-button operation for intuitive handling.

Operational Workflow

Step 1: Position lifter over material.
Step 2: Activate vacuum to secure the load.
Step 3: Lift, transport, and place with precision.
Step 4: Release vacuum for instant detachment.

Industry-Specific Applications

① Sheet Metal Fabrication

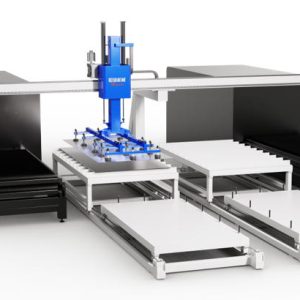

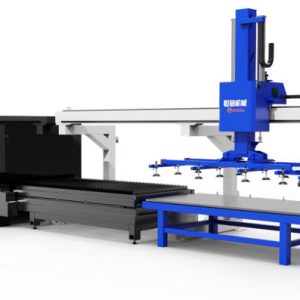

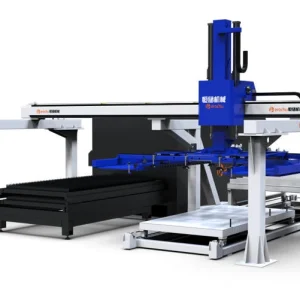

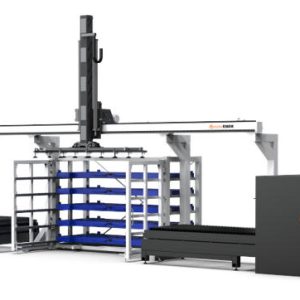

Seamless loading/unloading for laser cutters & CNC machines
Reduces scratches and deformations vs. manual handling

② Glass & Construction

Specialized lifters for double glazing & curved glass
Vertical/horizontal rotation for installation ease

③ Wood & Marble Processing

Non-marking suction cups for delicate surfaces
Heavy-duty models for slabs up to 5T

Technical Specifications

Feature	Details
Lifting Capacity	Up to 5T (customizable)
Power Source	Electric pump / Compressed air (Venturi)
Control System	Push-button / Remote options
Frame Material	High-strength electro-welded steel
Safety Compliance	CE, ISO-certified

Upgrade to Automated Handling Today

Herochu’s Vacuum Lifting Systems eliminate manual strain while boosting productivity. Whether you handle sheet metal, glass, or heavy panels, our solutions deliver:

✔ Faster cycle times
✔ Zero product damage
✔ Ergonomic workplace
✔ Custom configurations

Contact us for a tailored vacuum lifting solution!

(Herochu – Engineering Smarter Lifting Technologies.)
