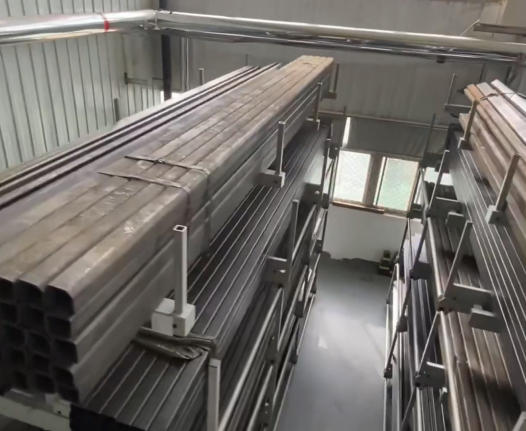

Optimize Warehouse Space with 6 Level Adjustable Cantilever Racking for Pipes and Bars

6-Level 2.5M Pipe Cantilever Structure: Heavy-Duty Steel Pipe Rack Design Supporting 700kg Per Level

Premium Electric Telescopic Cantilever Rack: Smart Control & Heavy-Duty Storage for Warehouse Efficiency

Roll Out Counter Lever Racking & Pipe Racking System: Heavy-Duty Warehouse Cantilever Racks for Long Materials

Telescopic Heavy Duty Adjustable Cantilever Racks: The Ultimate Solution for 8T/Layer Industrial Storage Demands

When it comes to storing massive, unwieldy materials like thick-walled steel pipes, precast concrete beams, or oversized machinery parts, standard shelving simply doesn’t cut it. Industries dealing with extreme weights require storage solutions that combine brute strength with intelligent design. This is where Telescopic Heavy Duty Adjustable Cantilever Racks shine, offering unparalleled load-bearing capabilities (up to 8 tons per layer) alongside modular flexibility. In this comprehensive guide, we explore how these racks are redefining heavy-industry storage, their technical specifications, and why they’re becoming the preferred choice for sectors ranging from shipbuilding to infrastructure development.

Category Heavy Duty Cantilever Racking Systems Tag Telescopic Heavy Duty Adjustable Cantilever Racks: The Ultimate Solution for 8T/Layer Industrial Storage Demands

Telescopic Heavy Duty Adjustable Cantilever Racks: The Ultimate Solution for 8T/Layer Industrial Storage Demands

The Non-Negotiable Need for Heavy-Duty Storage

Heavy-duty storage isn’t merely about holding weight; it’s about doing so safely, efficiently, and sustainably. Traditional static racks often struggle with loads exceeding 3–4 tons per arm, risking structural failure or material damage. Moreover, their fixed geometry limits adaptability—what works for 6-meter pipes may be useless for 12-meter beams. For industries handling heterogeneous inventories, this inflexibility leads to underutilized space and compromised workflow.

Telescopic heavy-duty cantilever racks solve these problems through three core innovations:

H-Shaped Steel Construction: Columns, arms, and bases are fabricated from hot-rolled H-beams, providing superior resistance to bending and torsional stress.
Telescopic Mobility: Arms extend horizontally to access materials without requiring wide aisles, then retract to minimize footprint.
Adjustable Configuration: Layer heights, arm lengths, and load capacities can be customized per client specifications, ensuring optimal fit for diverse materials.

Technical Specifications: Built for Extremes

Let’s examine a representative model, the HC-G9055D, to understand the engineering prowess behind these systems:

Load Capacity: 5 tons per single layer (customizable up to 8T).
Tube Length Compatibility: Supports materials up to 9 meters.
Layers: 4+1 configuration, with optional additions.
Movement Mode: Double-side power-assisted extension for balanced loading.
Dimensions: Overall size of 9435×3340×1750 mm, with column spacing of 1500 mm.
Surface Treatment: Hot-dip galvanized or epoxy powder-coated finishes for corrosion resistance.

These specs aren’t arbitrary; they’re derived from rigorous finite element analysis (FEA) and real-world stress testing. For instance, the 1500 mm column spacing ensures even weight distribution across the base, preventing soil subsidence in outdoor installations. Similarly, the double-side power assist reduces motor strain during simultaneous multi-layer operations, extending equipment lifespan.

Advantages Over Conventional Heavy-Duty Racks

Compared to static heavy-duty cantilever racks, telescopic variants offer distinct advantages:

1. Space Efficiency: By retracting arms when idle, these racks eliminate the need for 3–4 meter wide forklift aisles. In a 10,000 sq. ft. warehouse, this can free up 4,000 sq. ft. for additional storage or production lines.

2. Safety Enhancements: Fixed racks pose collision risks, especially in low-visibility conditions. Telescopic arms, however, remain tucked away until activated, reducing accident potential. Integrated safety pins and overload sensors add another layer of protection.

3. Operational Speed: Electric models enable one-button extension/retraction, slashing retrieval times from 5–10 minutes to under 60 seconds. This agility is vital in high-throughput environments like steel service centers.

4. Cost Savings: While initial investment may be 20–30% higher than static racks, the long-term ROI is compelling. Reduced space requirements lower rental costs, while faster operations decrease labor expenses. Many users report payback periods under 18 months.

Customization: Tailoring to Unique Needs

No two heavy-industry operations are identical, and telescopic racks reflect this reality. Clients can specify:

Material Grades: From Q235B carbon steel to high-strength Q345B alloys.
Arm Profiles: Flat, inclined, or U-shaped arms to cradle specific material geometries.
Drive Mechanisms: Manual hand-crank for budget-conscious setups, or electric motors with remote controls for automation-ready facilities.
Accessories: Wire mesh backs for small-part containment, side guards for lateral stability, or RFID tagging systems for inventory tracking.

For example, a wind turbine manufacturer might request 8T-capacity racks with 12-meter arms and inclined surfaces to secure tapered tower sections. Meanwhile, a municipal water authority could opt for galvanized racks with 4T layers to store corrosive-resistant PVC pipes outdoors. This bespoke approach ensures every system delivers maximum value.

Case Study: Transforming a Steel Distribution Hub

A leading steel distributor in Guangdong faced chronic space shortages despite owning a 20,000 sq. m. facility. Their static racks held only 60% of inventory, forcing costly off-site storage. After installing Telescopic Heavy Duty Adjustable Cantilever Racks with 6T/layers and 9m compatibility, they achieved:

92% space utilization indoors.
40% reduction in material handling time.
Elimination of off-site rentals, saving $180,000 annually.

The project’s success hinged on meticulous planning: 3D CAD simulations optimized rack placement, while phased installation minimized operational disruption. Today, the hub serves as a benchmark for heavy-duty storage excellence.

Future Trends: Automation and Sustainability

Looking forward, heavy-duty telescopic racks will increasingly integrate with automated guided vehicles (AGVs) and IoT platforms. Imagine AGVs communicating directly with rack controllers to schedule extensions, or solar-powered motors reducing carbon footprints. Such innovations will further solidify these systems as cornerstones of sustainable, high-performance warehousing.

In summary, Telescopic Heavy Duty Adjustable Cantilever Racks are not just storage tools—they’re strategic assets. By marrying extreme load capacity with intelligent design, they empower industries to overcome spatial constraints while boosting productivity. For any operation grappling with heavyweight materials, the question isn’t whether to adopt this technology, but how soon.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
