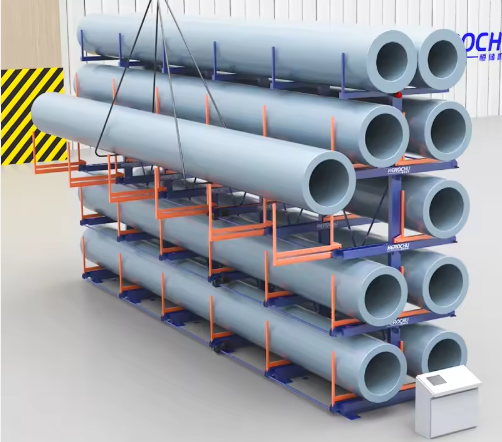

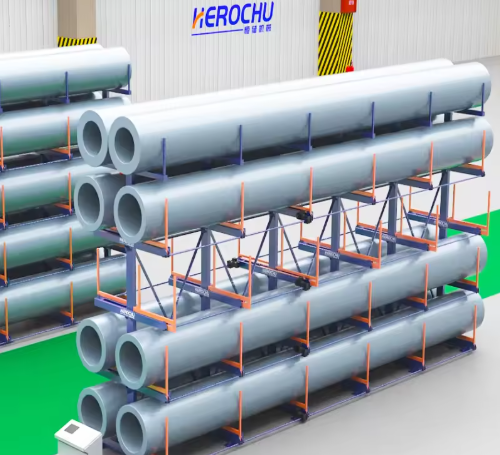

Telescopic Heavy Duty Adjustable Cantilever Racks: Maximizing Density for Pipes, Profiles, and Bars

The storage of long, bulky, and heavy materials has always been a logistical bottleneck for industries ranging from construction to manufacturing. Standard pallet racking is ill-suited for items like steel pipes, copper bars, and structural profiles due to the obstruction caused by vertical uprights. While traditional cantilever racks solved the access issue, they failed to address the problem of space inefficiency. The answer to this dual challenge is the Telescopic Heavy Duty Adjustable Cantilever Rack, a specialized system designed to maximize storage density while maintaining the highest standards of load-bearing performance.

Engineering for Extreme Loads

When dealing with heavy industrial materials, the structural integrity of the storage system is non-negotiable. The Heavy Duty Carbon Steel 8T/Layer Rack variants available in the telescopic cantilever family are engineered to support immense weights. Unlike medium-duty racks made from C-shaped steel, heavy-duty models utilize H-shaped steel for columns, arms, and bases. This construction method provides exceptional stability and resistance to bending or deformation under load.
Specifications for these heavy-duty units are impressive. Single layers can support loads of 3 tons, 5 tons, or even up to 8 tons in customized configurations. Total system capacities can reach hundreds of thousands of kilograms. For example, the HC-G9055D model features a 9-meter tube length and a double-side power-assisted movement mode, capable of handling 5 tons per layer. This makes it ideal for storing large diameter pipes, thick steel plates, and other massive construction components that would crush lesser shelving units.
The Telescopic Cantilever Warehouse Rack Shelves are not just strong; they are smartly designed. The plug-in compatibility of the arms allows for quick adjustments. As inventory profiles change—perhaps shifting from storing 6-meter rebar to 12-meter conduits—the arms can be repositioned vertically to accommodate the new dimensions. This Heavy-Duty Adjustable Powder Coated Plug-In Storage capability ensures that the rack evolves with your business needs, preventing obsolescence.

The Space-Saving Advantage

The defining feature of the Telescopic Heavy Duty Adjustable Cantilever Rack is its ability to condense storage footprints. In a traditional static cantilever setup, every row requires a dedicated aisle for forklift access. If you have ten rows of racks, you need ten aisles. This results in a staggering amount of wasted space.
Telescopic racks operate on a different principle. They are arranged in compact blocks with minimal gaps between them. When storage or retrieval is required, the specific arms holding the target material telescope outward, creating a temporary workspace. Once the operation is complete, the arms retract, and the rack returns to its compact state. This mechanism means that only one main aisle is needed for the entire block of racks. The result is a storage density that is 2 to 3 times higher than traditional systems.
This Space-Saving High Density Storage for Industrial Warehouse solution is particularly beneficial for facilities with limited real estate or high rental costs. It allows businesses to store significantly more inventory within the same four walls, delaying or even eliminating the need for expensive warehouse expansions. Furthermore, for warehouses with low ceiling heights, the telescopic design maximizes vertical utilization without requiring the overhead clearance needed for some automated crane systems.

Operational Efficiency and Ease of Use

Despite their heavy-duty capabilities and complex mechanics, these racks are designed for simplicity. The operation is straightforward: users can choose between a hand-cranked type for cost-effective, low-frequency applications or an electric type for high-throughput environments. The electric models feature a “one-button start” interface. An operator selects the desired layer, and the system automatically extends the necessary arms.
This level of automation drastically reduces the time spent on material preparation. In a manual stacking scenario, a worker might spend 15 minutes digging through a pile to find a specific pipe. With a Smart Electric Telescopic Cantilever Rack, the item is presented instantly at the optimal height for forklift or crane access. This efficiency translates directly into lower labor costs and faster order fulfillment times. Moreover, the system’s compatibility with standard material handling equipment like forklifts and overhead cranes ensures seamless integration into existing workflows.

Customization and Adaptability

No two warehouses are identical, and neither are their storage needs. The Telescopic Cantilever Rack system offers extensive customization options. Clients can specify the length of the tubes (6m, 9m, or custom), the number of layers, the height of each layer, and the total load capacity. The depth and height of compartments can also be tailored, with options like 600x400mm, 600x600mm, or 800x600mm available to suit different product profiles.
Additionally, the system can be adapted for various environments. Whether used indoors in a climate-controlled facility or outdoors exposed to the elements, the powder-coated finish provides robust protection against rust and corrosion. Accessories such as back wire mesh, side boards, and safety pins can be added to enhance security and prevent items from slipping. For businesses dealing with a mix of materials—such as a supermarket selling both wooden moldings and metal pipes—the adjustable arms ensure that every item, regardless of shape or weight, has a dedicated and secure home.

Conclusion

The Telescopic Heavy Duty Adjustable Cantilever Rack is more than just a shelving unit; it is a strategic asset for any business dealing with long materials. By combining extreme load-bearing capacity with revolutionary space-saving technology, it addresses the two most critical pain points in industrial storage: weight limits and floor space. Whether you opt for the medium-duty version for lighter products or the heavy-duty H-steel construction for massive pipes, this system delivers unparalleled efficiency, safety, and scalability. As industries continue to push for leaner operations and higher throughput, adopting this advanced storage solution is a decisive step toward future-proofing your warehouse.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

  • A team of over 40 technical engineers for professional debugging and support.

  • A dedicated quality control department compliant with ISO9001 standards.

  • CE certification for all exports.

  • Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
