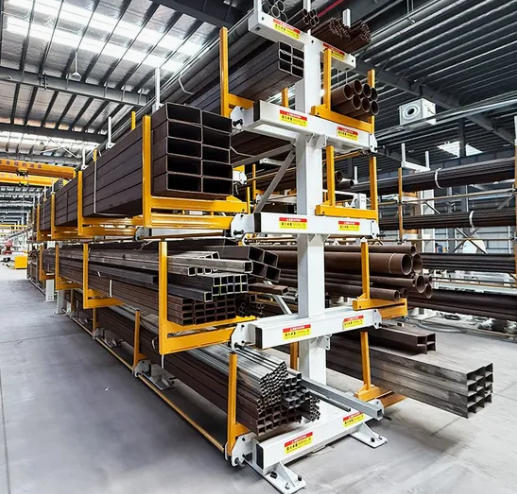

Telescopic Cantilever Racks Redefine Steel Tube Racking Systems | 6-Ton Arm Capacity | CE Certified

The steel tube racking industry has operated under fixed-cantilever limitations for decades, accepting the inefficiency of dedicated forklift aisles and restricted material access. Telescopic Cantilever Racks Redefine Steel Tube Racking Systems through a retractable arm mechanism that achieves 100% full extension, eliminating the need for access aisles entirely. This engineering advancement transforms steel tube warehouses from chaotic ground-stacked operations into high-density vertical storage systems with instant material access.

Engineering Breakthrough: 100% Cantilever Extension

The defining feature of this telescopic cantilever rack is the complete extension rate of each cantilever arm. When retracted, the arm occupies minimal floor space. When extended, it provides full access to stored steel tubes without requiring any floor space for material handling equipment movement. This 100% extension capability is achieved through precision-engineered roller bearings and guided extension mechanisms tested for continuous industrial operation.

Each telescopic arm supports up to 6 tons, with single-layer load-bearing capacity ranging from 3 to 8 tons. The carbon steel frame accommodates 4 to 12 customizable layers, storing steel tubes from 6 to 12 meters (20ft to 40ft) in length. The 330 mm bottom floor height from ground provides clearance for optional automated loading systems and floor maintenance equipment.

Comparative Analysis: Fixed vs. Telescopic Cantilever Racks

Operational Transformation for Steel Tube Warehouses

Steel tube warehouses implementing telescopic cantilever racks typically recover 50% of floor space previously dedicated to access aisles. This recovered space can be repurposed for production lines, additional storage capacity, or processing equipment. The elimination of forklift travel between storage rows reduces fuel consumption, maintenance costs, and the risk of pedestrian-vehicle accidents.

Overhead crane operators can access any stored tube directly from above, with no need to shuffle surrounding materials. This instant access capability supports just-in-time manufacturing workflows where specific tube sizes and grades must be retrieved on demand. For facilities processing multiple tube diameters and wall thicknesses, the ability to retrieve specific materials without moving others dramatically reduces labor costs and improves throughput.

Comprehensive Material Support

Beyond steel tubes, this racking system supports:

• Steel pipes (all specifications)

• Aluminum profiles and extrusions

• Bars, rods, shafts (solid and hollow)

• Channels, angles, beams (all structural sections)

• Sheets, plates, flat bars

• Rails and specialty sections

• Square tubes and round bars

• Irregular-shaped materials requiring horizontal storage

Industry Applications Where Telescopic Racks Excel

• Steel Tube Manufacturing: Raw tube storage, work-in-process staging, finished goods inventory

• Heavy Machinery: Hydraulic cylinder tube storage, shaft and bar stock

• Aluminum Profile Processing: Extrusion storage before and after fabrication

• Shipbuilding: Long structural component storage

• Metal Fabrication: Just-in-time material staging for laser cutting and welding

Quality and Certification Standards

The manufacturer holds ISO 9001 certification with a dedicated quality control department ensuring compliance. CE certification applies to all export units. Pre-shipment load testing validates structural safety and reliability. A team of over 40 technical engineers provides professional debugging and support. The 10,000-square-meter self-owned factory maintains a 300+ team dedicated to intelligent storage solutions.

Global Service and Integration Capabilities

On-site installation and debugging services are available worldwide, with documented installations in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon. Automated loading systems and robotic arms can be integrated, tailored to laser cutting machine table sizes and material handling methods (board rack, exchange platform, or material warehouse). Virtual video factory tours and on-site visits to Jiyang Industrial Park, Jinan, Shandong, China are available for capability evaluation.
