Telescopic Cantilever Rack and Pipe and Long Material Storage

Herochu Telescopic Cantilever Rack: The Advanced Solution for High-Density Pipe and Long Material Storage

In the complex logistics landscape of modern manufacturing, warehousing, and distribution, the storage of long, cumbersome materials represents a unique and persistent challenge. Industries ranging from heavy machinery manufacturing and metal fabrication to construction and plumbing grapple with the inefficient, and often hazardous, practice of storing pipes, bars, profiles, and other lengthy items in disorganized piles on the floor. This outdated method consumes a prohibitive amount of valuable floor space, creates significant safety risks for personnel and inventory, and leads to substantial losses in productivity due to difficult and time-consuming retrieval processes. Herochu, a distinguished manufacturer with internationally recognized CE, UE, and ISO 9001 certifications, presents a sophisticated engineering solution designed to overcome these obstacles entirely: the Telescopic Cantilever Rack and Pipe and Long Material Storage system.

This system transcends the concept of conventional storage by introducing a dynamic, high-density, and intelligently managed approach to organizing industrial inventory. It is specifically engineered for operations that handle long materials and require not just storage, but rapid access, impeccable organization, and optimal space utilization. With a starting investment of $3,099, Herochu provides a customizable, scalable, and robust solution that delivers a rapid return on investment by transforming chaotic storage areas into models of efficiency and safety. Our self-operated factory ensures fast delivery, managing every aspect from initial design and precision manufacturing to final installation services in a seamless, integrated process.

Re-engineering Storage: The Core Principle of the Telescopic Cantilever System

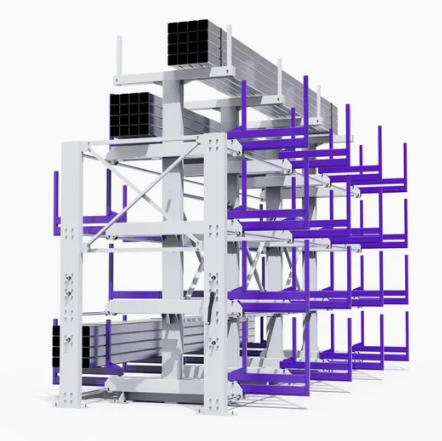

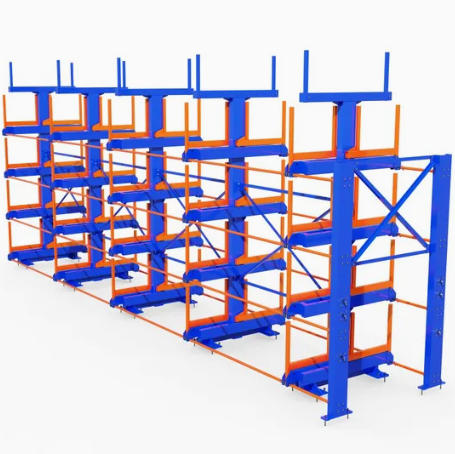

The fundamental innovation of the Herochu system lies in its telescopic functionality. Unlike static shelving or fixed cantilever racks, this system features movable arms that actively extend and retract. The overall structure is a robust assembly of column pieces, fixed arms, movable arms, stabilizing rods, transmission rods, and a control end kit. This configuration creates a series of independent storage layers that can be projected into the aisle space on demand. The critical transmission mechanism involves a drive end that uses a sprocket chain connected to a transmission rod. This rod then engages with the movable arm assembly, converting the motion into a precise gear rack transmission. This engineered process allows the entire length of the movable arm to extend smoothly and securely beyond the fixed storage position.

The profound implication of this design is that it eliminates the need for the storage aisle to be as wide as the materials are long. In a traditional setup, aisles must be wide enough to accommodate the full length of a pipe or bar being maneuvered out, consuming enormous amounts of floor space. With the Herochu Telescopic Cantilever Rack, the aisle need only be wide enough for the rack structure itself; the materials are brought into the aisle space mechanically. This breakthrough is the key to achieving unparalleled space savings and storage density, making it an ideal solution for facilities looking to maximize their existing square footage or store more material without expanding their footprint.

Unparalleled Benefits: Three-Dimensional Storage, Visual Management, and Independent Access

The advantages of implementing a Herochu Telescopic Cantilever system are multidimensional, impacting not only space utilization but also inventory management, labor efficiency, and workplace safety.

1. Revolutionary Three-Dimensional Storage:
The system effectively converts inefficient flat, floor-based storage into organized, high-bay, three-dimensional storage. By stacking storage capacity vertically across multiple layers—typically 3, 4, or 5 layers high—the system maximizes the use of the facility’s cube height. This approach can dramatically improve storage efficiency by a factor of three or more, directly reducing the required storage area and consequently lowering overhead costs associated with real estate. It solves the inherent problems of the old stacking solution, which was prone to collapse, damage, and inaccessibility.

2. Uncompromised Visual Management:
A critical yet often overlooked aspect of warehouse management is the ability to quickly identify and locate specific items. Traditional piles of long materials lead to a serious backlog where items are buried, labels are covered or worn away, and identification becomes a frustrating guessing game. The Herochu system institutes true visual management. Each compartment within the multi-layer structure is dedicated to a specific material type, grade, or size. Each compartment can be clearly labeled, and because every arm can be extended, every single item is fully visible and immediately accessible. This eliminates time wasted searching and reduces the number of personnel required for material management operations, achieving objectives that are fast, accurate, and economically superior.

3. Total Independent Storage and Access by Layers:
This feature is perhaps the most significant operational benefit. The system allows for any individual layer to be accessed independently without disturbing the materials stored on layers above or below. This is a stark contrast to traditional cabinet storage or deep shelving, where accessing a bottom item requires moving everything on top. With Herochu’s solution, materials of different specifications and models can be classified and stored in independent units. When a specific pipe or bar is needed, an operator can directly extend the corresponding arm layer and use an overhead crane or other tool to lift the material vertically straight from its position. This facilitates arbitrary storage and access, drastically improves warehouse circulation efficiency, and makes picking for specific orders or production runs a simple, one-person task.

Technical Specifications and Customizable Solutions

Herochu racks are built from high-grade steel with a durable powder-coated surface treatment, offering resistance to corrosion and wear in industrial environments. Standard configurations support impressive capacities of up to 5 tons per layer side, with layer lengths commonly available at 6m, 9m, and 12m to accommodate a vast range of material sizes. The system is offered in both manual and electric telescopic cantilever versions, allowing you to choose the level of automation that best suits your workflow and frequency of access.

We understand that every workshop has unique dimensions and requirements. Therefore, our standard models serve as a foundation for extensive customization. Our professional engineering team provides tailored solutions based on your actual site plans and material profiles. We can adjust the number of layers, the length of the arms, the load-bearing capacity, and the color to match your facility’s layout and corporate identity. This commitment to customization ensures that the solution you implement is not an off-the-shelf compromise but a perfect fit for your operational needs.

Industry Applications and Conclusion

The Telescopic Cantilever Rack is indispensable in the machinery manufacturing industry and the pipe and profile manufacturing industry. Its application extends to any enterprise that handles long materials such as structural steel, aluminum extrusions, plastic piping, wooden beams, and glass panels.

By choosing Herochu, you are not just purchasing a storage rack; you are investing in a comprehensive material handling strategy from a trusted, certified manufacturer. You gain a partner dedicated to solving your storage problems through innovative engineering, quality manufacturing, and reliable service. This system represents a strategic upgrade that will enhance operational safety, drive down costs, and improve productivity for years to come.

Contact Herochu today to schedule a consultation with our storage experts. Provide us with your facility details and challenges, and we will develop a customized Telescopic Cantilever Rack solution that unlocks the full potential of your warehouse space and streamlines your long material handling processes.
