Swing Arm Sheet Metal Handling Manipulator

Pneumatic Sheet Metal Arm Manipulator System for Industrial Applications

Swing Arm Sheet Metal Handling Manipulator

Handling large, heavy sheets of metal manually is slow, risky, and inefficient. The Swing Arm Sheet Metal Handling Manipulator offers a powerful alternative—combining mechanical strength with smooth articulation to lift, rotate, and position metal plates with minimal operator effort. Designed for integration with laser cutters, press brakes, and CNC punching stations, this manipulator acts as a tireless assistant that enhances both speed and safety in industrial environments.

Swing Arm Sheet Metal Handling Manipulator

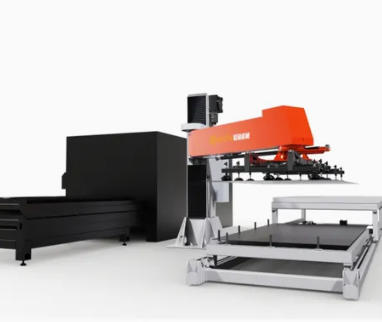

This system features a robust cantilevered arm mounted on a fixed or mobile base, capable of swinging through a wide arc to access material stacks and deliver sheets precisely where needed. Depending on the model, it handles plates ranging from 1 mm to 20 mm in thickness, with maximum dimensions of 4000×1500 mm and weights up to 1000 kg. Despite this impressive capacity, operation remains remarkably smooth thanks to servo-driven or pneumatic actuation that provides controlled motion without jerking or vibration.

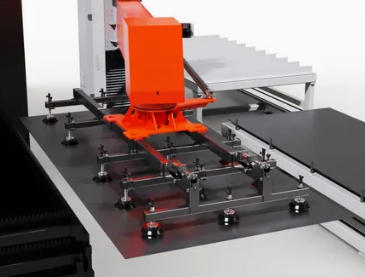

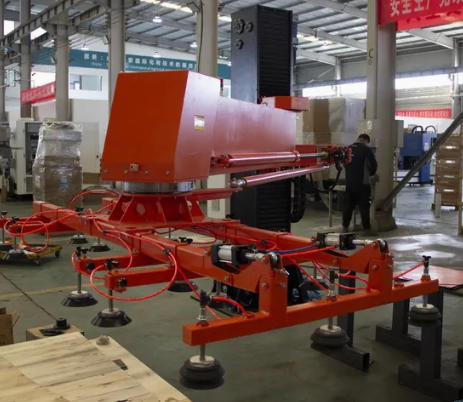

A key component of the manipulator is its vacuum suction array, typically equipped with eight high-performance suction cups. These cups create a secure seal even on oily, slightly curved, or perforated surfaces—common challenges in real-world fabrication. In the event of vacuum loss, fail-safe valves prevent sudden drops, ensuring operator safety at all times. Additionally, the arm can tilt or rotate the load mid-air, allowing sheets to be aligned perfectly with machine datum points without requiring secondary adjustments.

One of the biggest advantages of the swing arm design is its space efficiency. Unlike gantry systems that require overhead clearance or extensive floor rails, this manipulator operates within a compact radial footprint. It can be installed adjacent to a laser cutter without obstructing operator access or workflow paths. Some versions even include casters or rail mounts for repositioning between workstations—ideal for job shops with flexible layouts.

The manipulator supports both manual and semi-automated operation. In manual mode, an operator uses a pendant control to guide the arm with fingertip precision. In automated setups, it syncs with the host machine’s control system to trigger loading cycles based on job data—enabling lights-out production. Integration is straightforward via standard I/O signals or fieldbus protocols like PROFINET or EtherNet/IP.

Industries such as automotive, shipbuilding, and HVAC benefit immensely from this technology. A fabricator processing 8-mm structural steel plates no longer needs two workers and a crane; one operator can manage the entire loading sequence safely and quickly. Over a year, this translates into lower labor costs, reduced downtime, and fewer workplace incidents.

Built with industrial-grade components and often compliant with CE safety directives, the Swing Arm Sheet Metal Handling Manipulator delivers reliability under demanding conditions. It’s not just about moving metal—it’s about moving it smarter.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
